Harmar Mobility Vantage SL400 - CHAIR ROOSTER INSTALLATION; Attaching Rooster to Chassis

TEC0017 23Jan2015 P/N: 630-00027-01 revC
SL400 • Vantage Stair Lift Installation Manual
23
Vantage Stair Lift
INSTALLING THE CHAIR
INSTALLING THE CHAIR

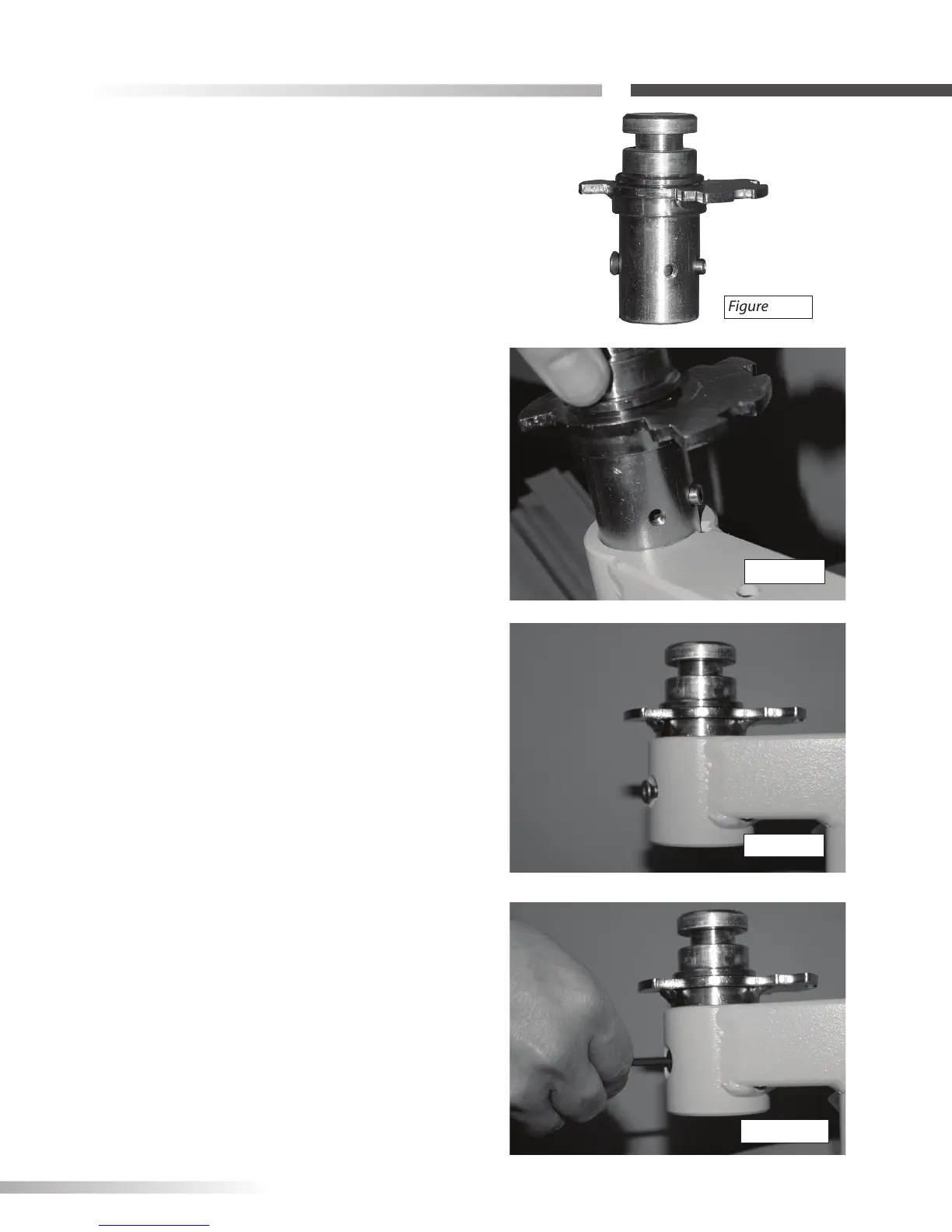

Figure 23-2
Figure 23-3
1. Remove the two anged screws from the
rooster. [Figure 23-1] DO NOT REMOVE THE SINGLE
SOCKET HEAD SCREW
Figure 23-1
2. Place the rooster into the hole on the uphill side
of the chassis. [Figure 23-2] Align the remaining
screw with the slot on the post hole.
3. insert and tighten the anged screws from step
1 through the chassis and into the rooster. [Figure
23-3 & 23-4]
Figure 23-4
