© 2015Harmar Mobility, LLC • All Rights Reserved
800-833-0478 | www.harmar.com24
Vantage Stair Lift

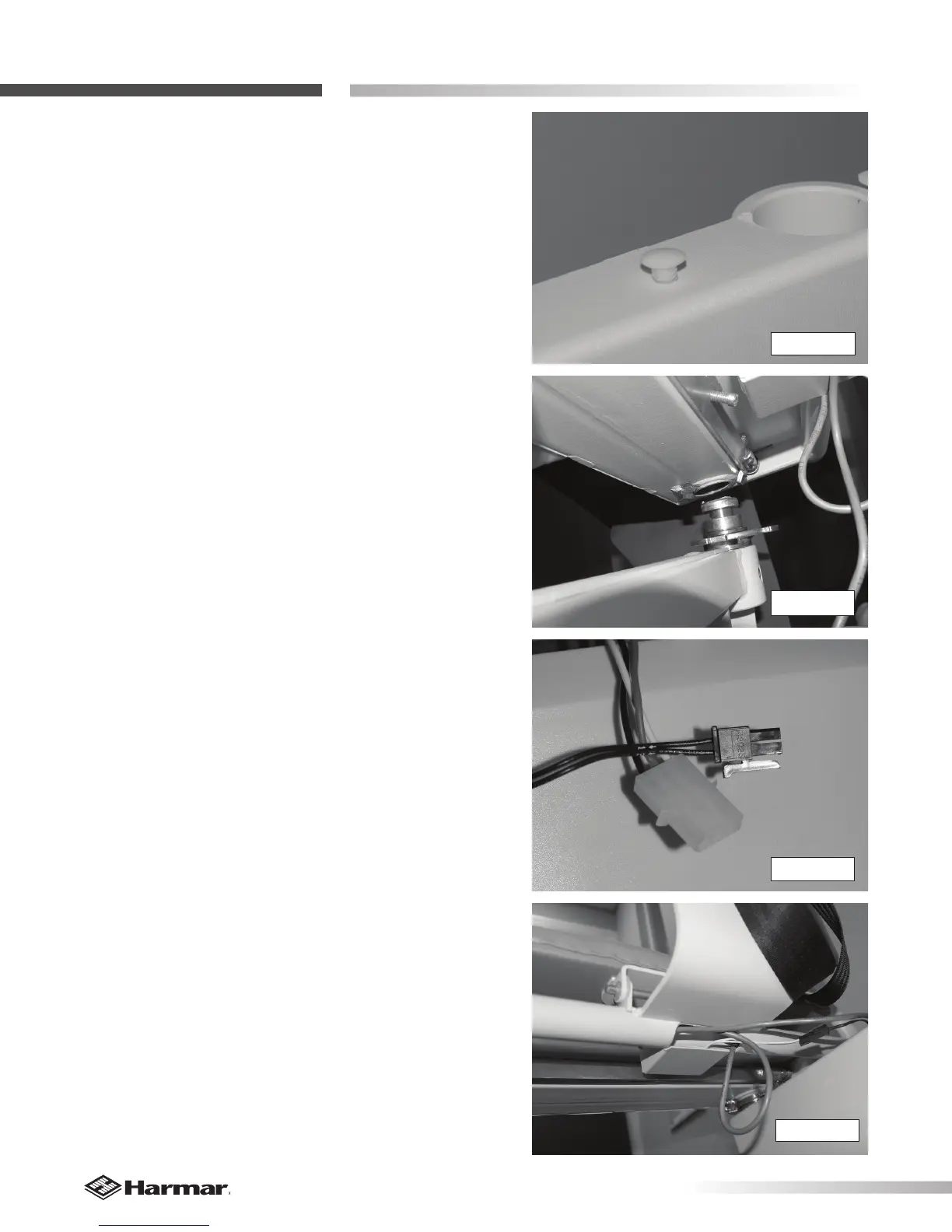

INSTALLING THE CHAIR
Figure 24-3
5. Line up the post holes on the seat with the
post holes on the chassis. Push the swivel handle
downward and slide the seat onto the rooster post.
[Figure 24-2]
Conrm that the seat will lock in all three positions
(0°, 45° and 90°)
Figure 24-2
6. With the seat in the 90° position, connect the wires
from the seat to the corresponding connections on
the chassis. [Figure 24-3]
Black = Safety Wire
White = Control Wire
7. Tuck any excess wire back into the armrest bar.
[Figure 24-4]
Figure 24-4
4. Position the face plate over the seat support so that
the round cuts at the top surround the rooster and the
other post hole. Secure it to the support with the two
christmas tree plugs. [Figure 24-1]
Figure 24-1
