Drive carrier LEDs
Color LED State NIC State
Green Off LAN link not established
Green On LAN link is established
Green Blinking LAN activity is occurring
Table 1-6: Right Ethernet Port LED
Color LED State NIC State
Green On 10 Mb/sec data rate
Green On 100 Mb/sec data rate
Green On 1000 Mb/sec data rate
Drive carrier LEDs

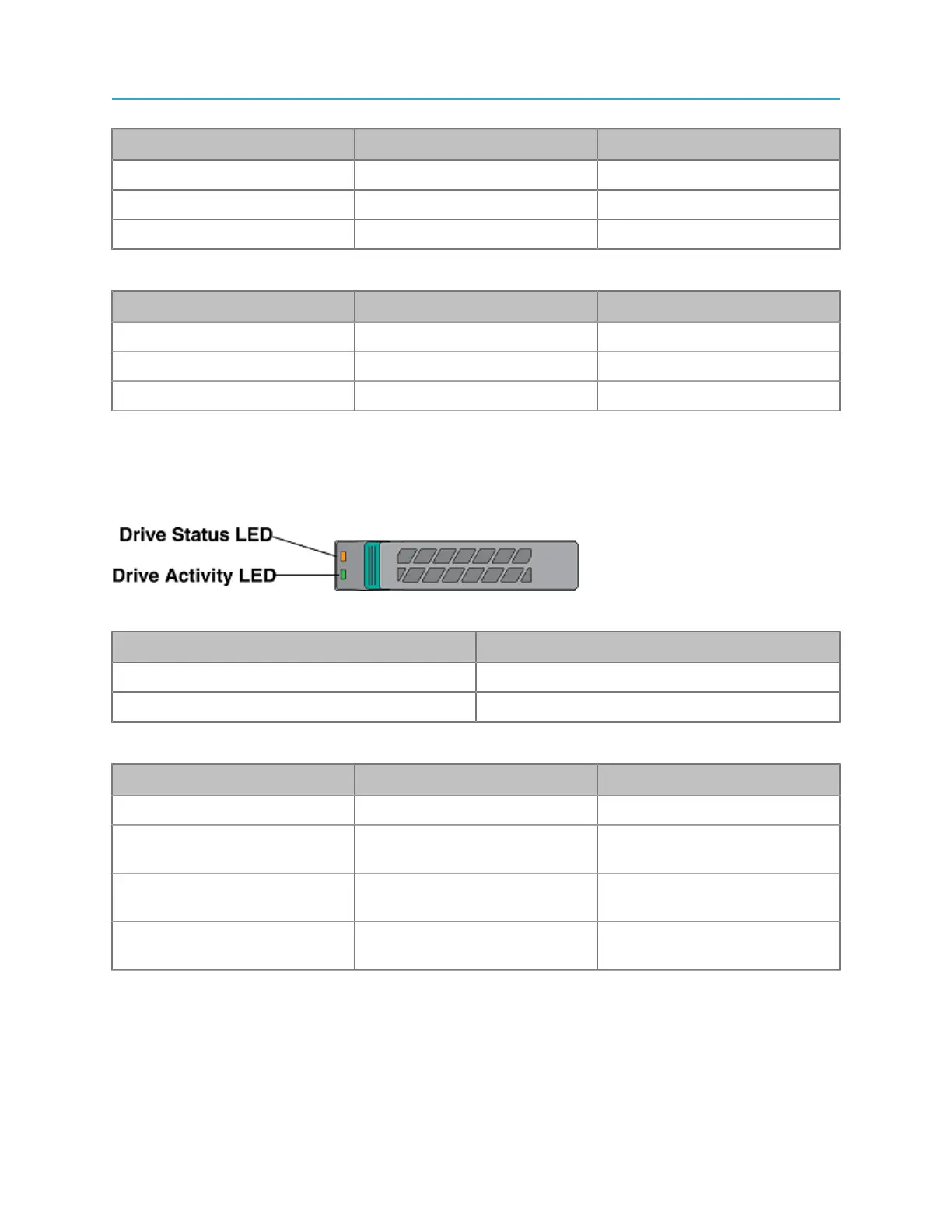

A diagram of the LED states of the ProStream X drive carriers.
Table 1-7: Drive Status LED States (Amber)
State Description
Off No access and no fault
Solid On Hard drive fault has occurred
Table 1-8: Drive Activity LED States (Green)
Condition Drive Type Description
Power on with no drive activity SATA LED stays off
Power on with drive activity SATA LED blinks off when
processing a command
Power on and drive spun
down
SATA LED stays off
Power on and drive spinning
up
SATA LED stays off
13 ProStream X 2.4.x Installation Guide
