MALFUNCTIONS
Safety
Disconnect the machine of the mains supply
before adjusting the machine or removing
malfunctions.
See to it that all damaged parts are replaced
before operating the machine.
MALFUNCTION:
SAW CUT IS NOT SQUARE (ADJUSTING
0° STOP)
1 Put the saw-blade in its highest position
2 Set the saw-blade with a square.
3 Remove the panel at the left side of the
machine.
4 Loosen the nuts that clamp the threaded
spindle to the frame.
5 Put it against the stop fitted to the
trapezium threaded nut.
6 Fasten the two nuts tightly to the frame
(fig. 11).
MALFUNCTION:
SAW CUT IS NOT 45° (ADJUSTING STOP
45°)
1 Put the saw-blade at an angle of 45°.
2 Set the saw-blade exactly with a square.
3 Remove the panel at the left side of the
machine.
4 Adjust the nuts closest to nut with
trapezoidal thread (fig. 12).

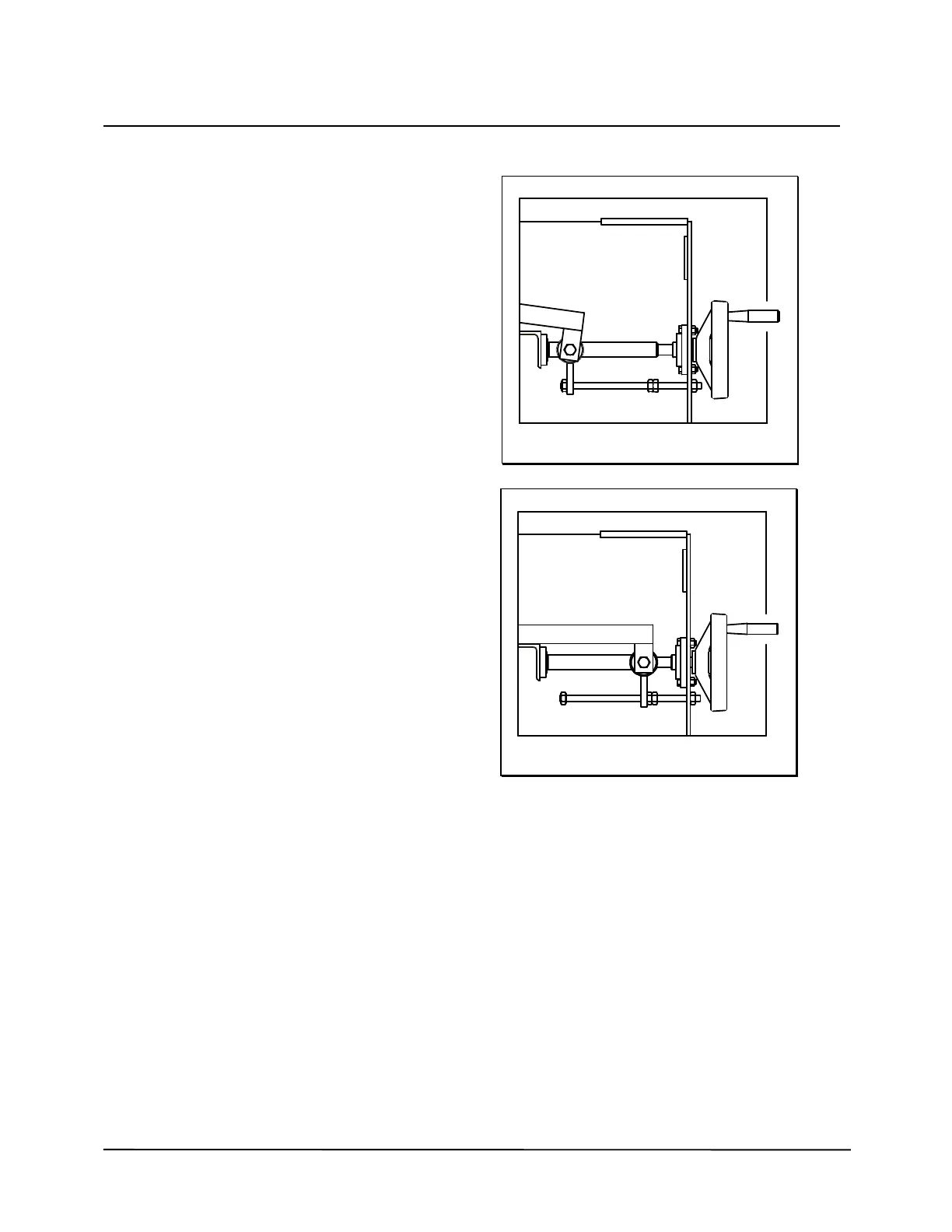

Figure 11
Figure 12
