SETTING UP THE MACHINE
MOVING
Move the machine with a forklift truck or a
pallet truck with forks of max. 550 mm and a
minimum length of 600 mm (Fig. 1). Minimum
capacity of 500 kilograms. Put the forks at the
left side far enough under the machine to avoid
tilting.
INSTALLING THE MACHINE
The machine has to be put on a solid floor,
which has to be flat, dry and not slippery.
DUST EXTRACTION
The machine has to be connected to a dust
extraction.
Connection for dust extracting hose of ∅ 120
mm. Connection of the safety guard is ∅ 80
mm.
The extracting capacity has to be calculated in
such a way that a minimum air speed of 20 m/s
is reached at the connection. Air speed is 1500
m
3
at a depression bigger than 450 Pa.

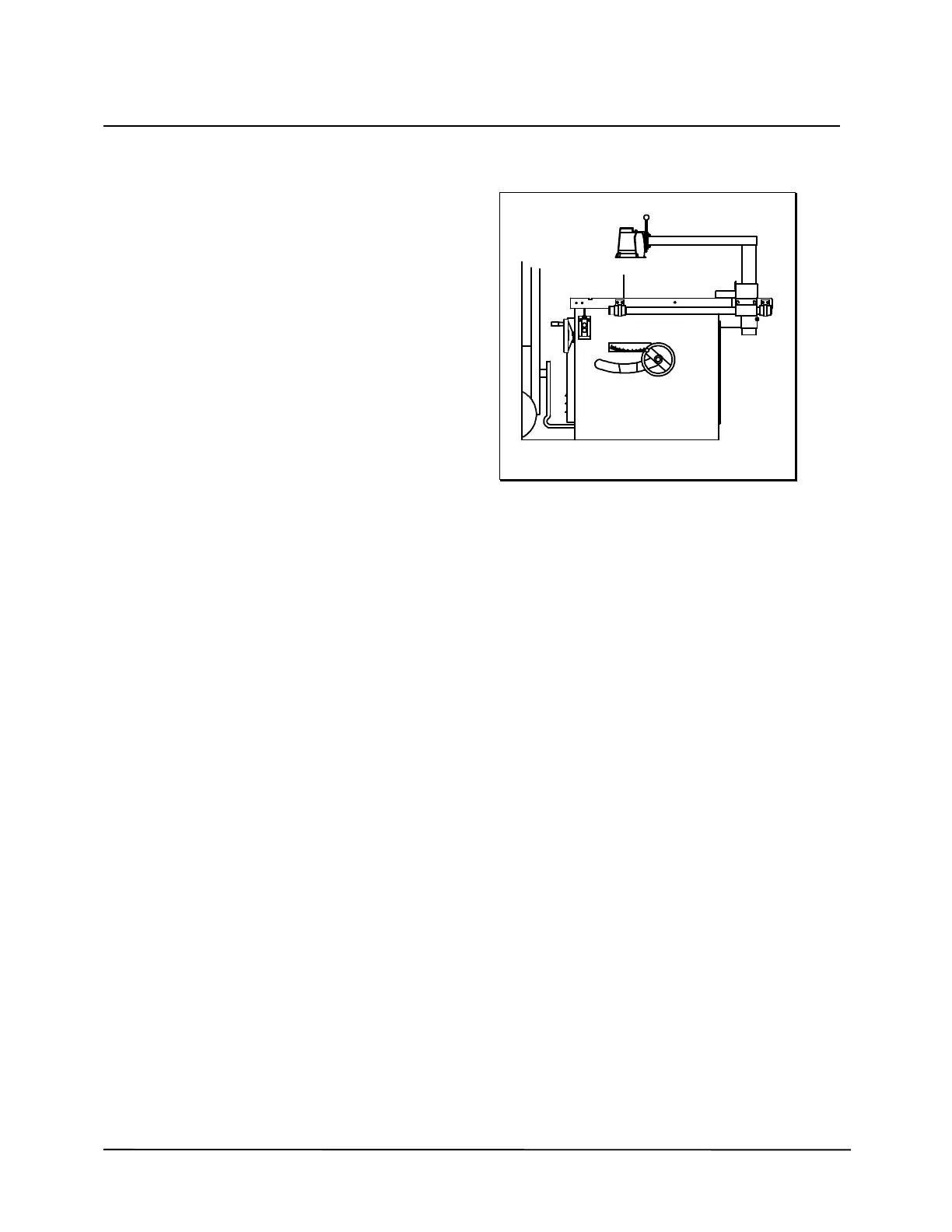

Figure 1
