MALFUNCTIONS
Safety
Disconnect the machine of the mains supply
before adjusting the machine or removing
malfunctions.
See to it that all damaged parts are replaced
before operating the machine.
MALFUNCTION
RIP FENCE NOT PARALLEL TO SAW-
BLADE.
WOOD CLAMPS BETWEEN FENCE EN
SAW-BLADE.
CHECK RIP FENCE, ADJUST AGAIN
0 Put the saw-blade in the highest position,
angle adjustment at 0°.
Example:
Distance between fence and saw-blade is
bigger at the back than at the front side of the
fence.
1 Put a wooden lath to the right side of the
saw-blade.
2 Push the fence without the sub-fence
against the lath and block the fence.
3 Loosen the right hexagon nut of the
fence with a 17 mm key.
4 Turn the right adjusting screw with an
Allen key till the fence and lath are

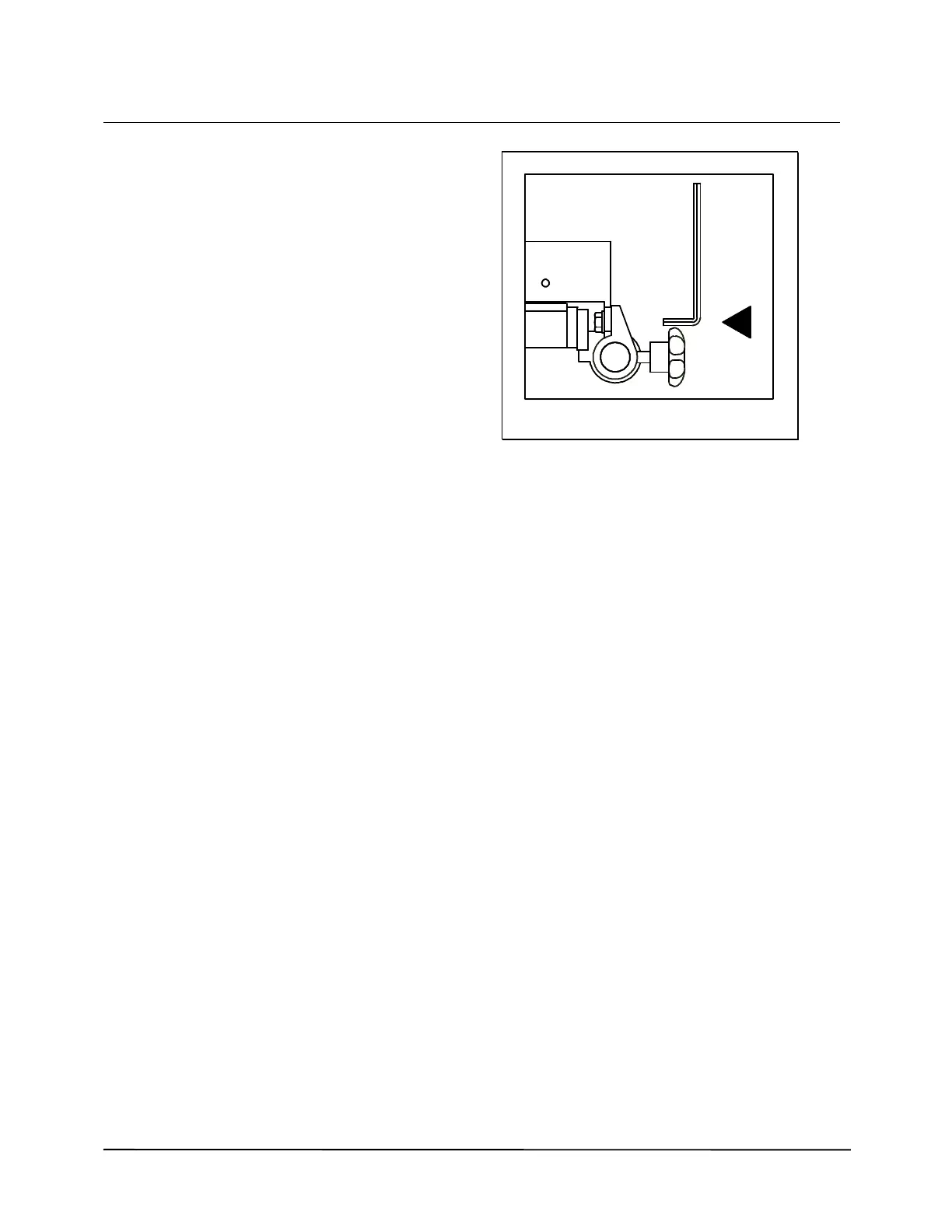

parallel (fig. 13).
5 Fasten the hexagon bolt tightly.
6 Check if lath and fence are parallel.
Figure 13
Example:
Distance between fence and saw-blade is
bigger at the front than at the backside.
1 Loosen the hexagon nut of the fence with
a 17 mm key.
2 Turn the left adjusting screw with an
Allen key till the fence and lath are
parallel (fig. 13).
3 Fasten the hexagon bolt tightly.
4 Check if lath and fence are parallel.
