HARWI 625-U - OPERATING THE MACHINE: SWINGING ARM; CUTTING AT AN ANGLE UNDER 45º (625-U)

11
OPERATING THE MACHINE
CUTTING AT AN ANGLE UNDER 45º (625-U)
B.M.O. SWINGING THE ARM
1 Turn the handle at the right backside of
the vertical support backwards (= loosen).
2 Push the arm against the stop of 45º (Fig.
4).
3 Turn the handle on the vertical support
forwards (= fasten).
4 Check the proper adjustment of the
height (has to be 2 mm under 0 mm).

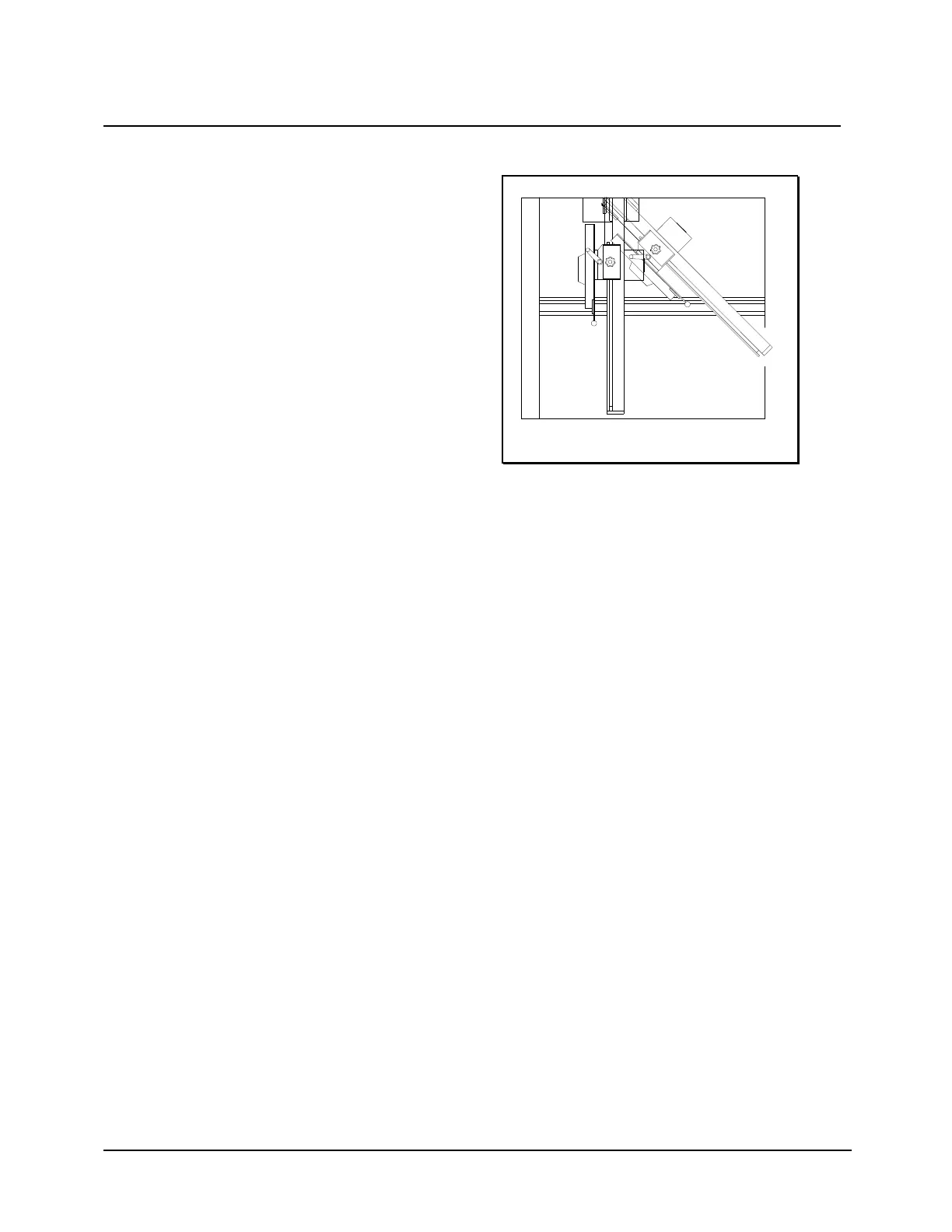

Figure 4
