HARWI 625-U - OPERATING THE MACHINE: ANGULAR CUTS; CUTTING BETWEEN 0-45º BY SWINGING ARM; CUTTING BETWEEN 0-45º BY TILTING MOTOR

12
OPERATING THE MACHINE
CUTTING AT AN ANGLE BETWEEN 0 AND
45º (625-U)
B.M.O. SWINGING THE ARM (Fig. 5)
1 Move the carriage to the front.
2 Fasten the carriage with the blocking
knob, on top of the unit.
3 Turn the saw-blade slightly upwards.
4 Turn the handle at the backside of the
vertical support a quarter stroke
backwards (= loosen).
5 Set the right angle b.m.o. the measure
scale in the table top.
6 Turn the handle forwards (=tighten).
7 Let the saw-blade touch the topside of the
tabletop.
8 Switch on the machine.
9 Cut a groove.
B.M.O. TILTING THE MOTOR (Fig. 6)
1 Move the carriage to the front.
2 Fasten the carriage with the blocking knob
on top of the unit. Turn up the saw-blade
with the handle on top of the carriage.
3 Set the right angle b.m.o. the measure
scale on the saw unit.
4 Keep your right hand at the bottom side of
the motor. Loosen the handle with your left
hand.
5 Check if the saw-blade is adjusted at the
proper angle.
6 Tighten the handle with your left hand.
7 Let the saw-blade touch the topside of the
tabletop.
8 Switch on the machine.
9 Cut a groove.

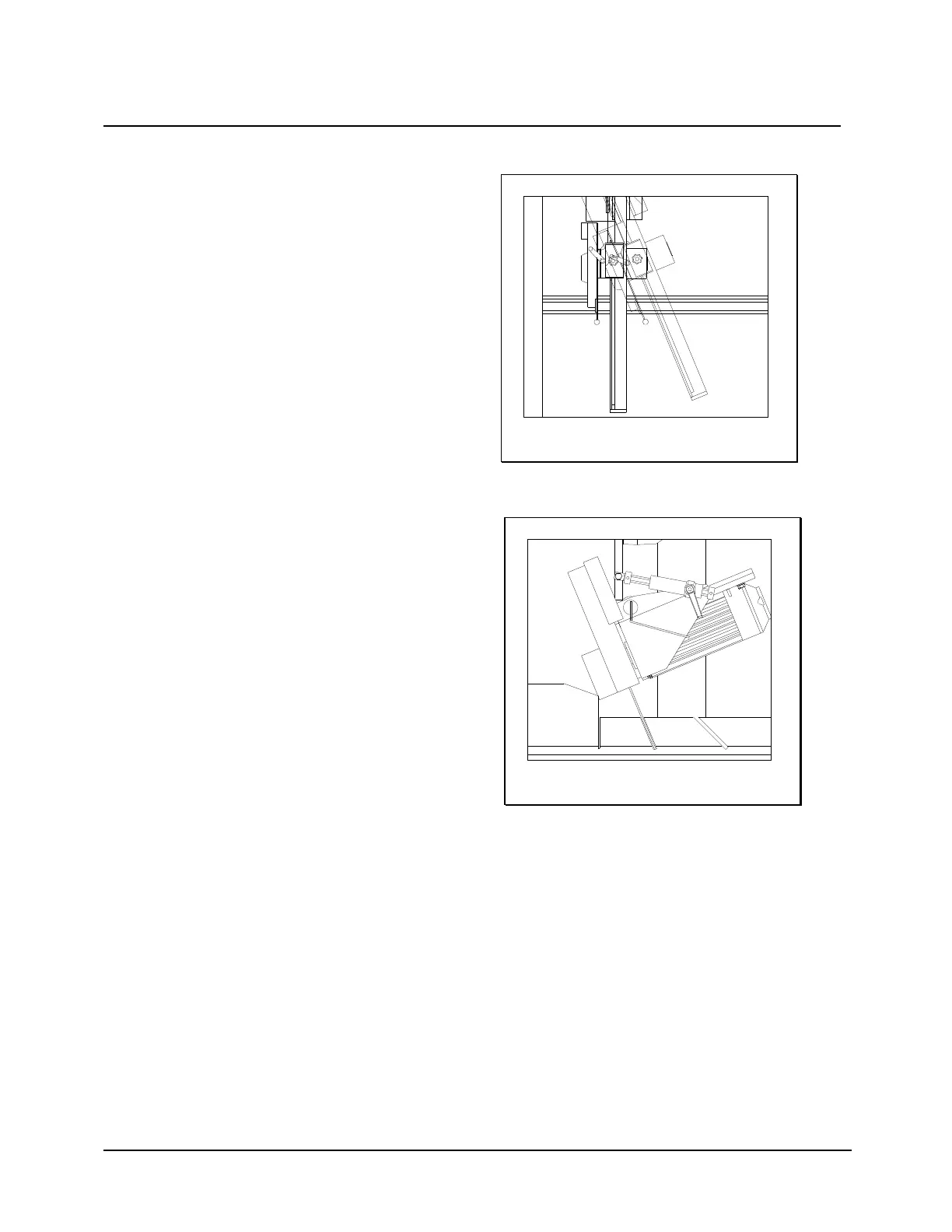

Figure 5
Figure 6
