DIRECTION OF SPINDLE ROTATION
First remove the saw-blade
PROPER DIRECTION IS CLOCKWISE
1 The right direction is marked on the red
guard with an arrow (Fig. 1).
2 Turn off the main switch.
3 Move the carriage to the front.
4 Block the carriage with the knob on top of
the unit.
5 Loosen the safety guard with the black
knob at the front side.
6 Move the guard backwards. The saw-
blade is free now.
7 Block the saw-blade.
8 Loosen the spindle nut clockwise with the
flat key.
9 Remove the saw-blade and the front
flange.
10 Turn on main switch.
11 Push the green button.
12 Push the red button.
13 Check if the spindle is running clockwise
while running out.
14 Turn off main switch.
15 Assemble saw-blade, front flange and nut.
16 Assemble safety guard and fasten with
black knob.

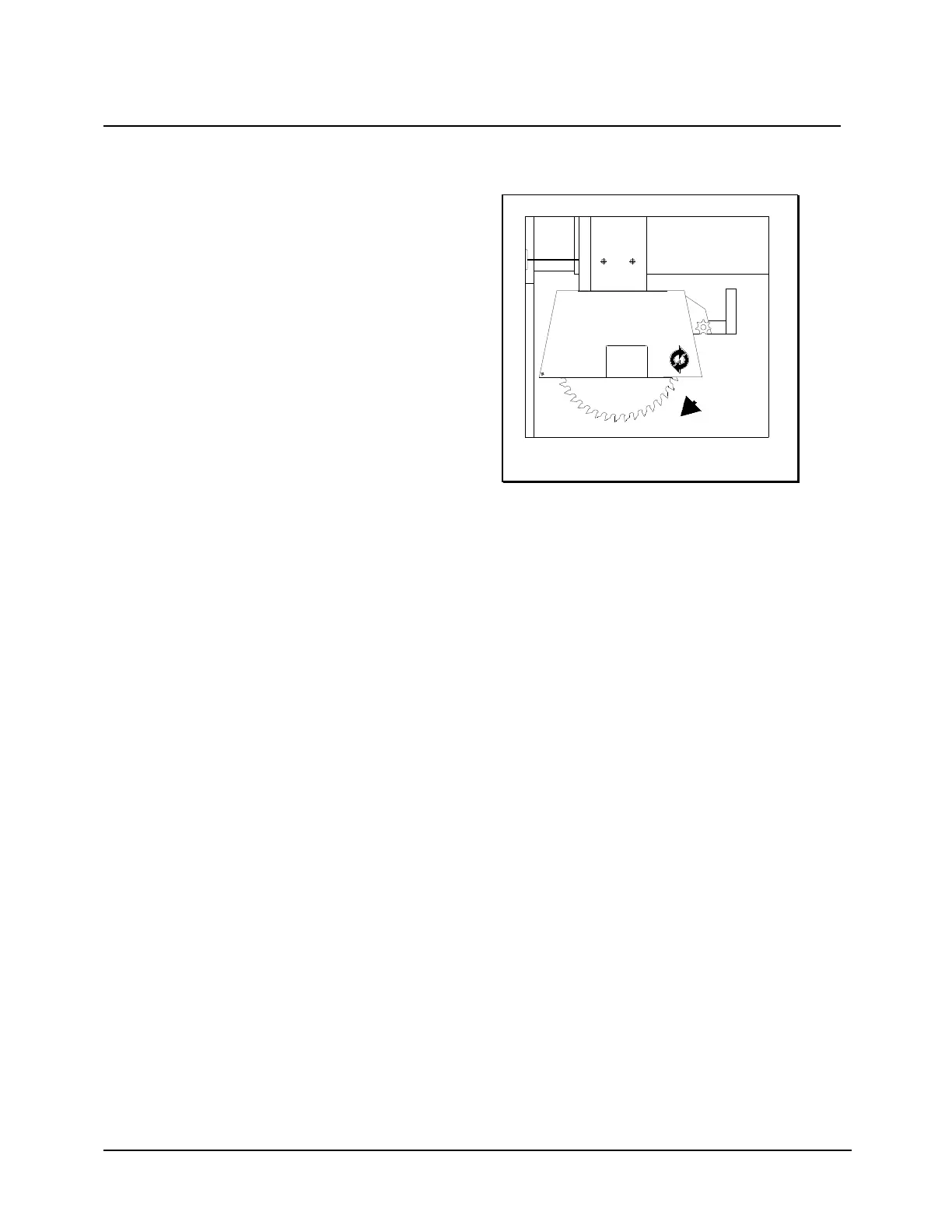

Figure 1
