HARWI 625-U - MAINTENANCE: SAW BLADE ALIGNMENT; ADJUSTING SQUARNESS TO TABLE TOP; ADJUSTING 45 DEGREE ANGLE

17
MAINTENANCE
ADJUSTING OF THE SAW-BLADE TO THE
TABLE TOP
ADJUSTING SQUARNESS (Fig. 9)
1 Loosen the adjusting ring at the bottom
slide of the sliding bush. The sliding bush
is positioned at the front side of the
motor.
2 Turn in the bolt between the height
adjusting support and the motor support
at the backside of the carriage.
3 Adjust the saw-blade with a square,
square to the tabletop.
4 Secure the handle on the sliding bush
tightly.
5 Push the lower adjusting ring against the
sliding bush.
6 Re-adjust the bolt at the backside of the
carriage.
ADJUSTING 45º
1 Loosen the adjusting ring at the topside of
the sliding bush.
2 Adjust the saw-blade under 45º with a
bevel.
3 Fasten the handle on the sliding bush
tightly.
4 Push the upper adjusting ring against the
sliding bush.

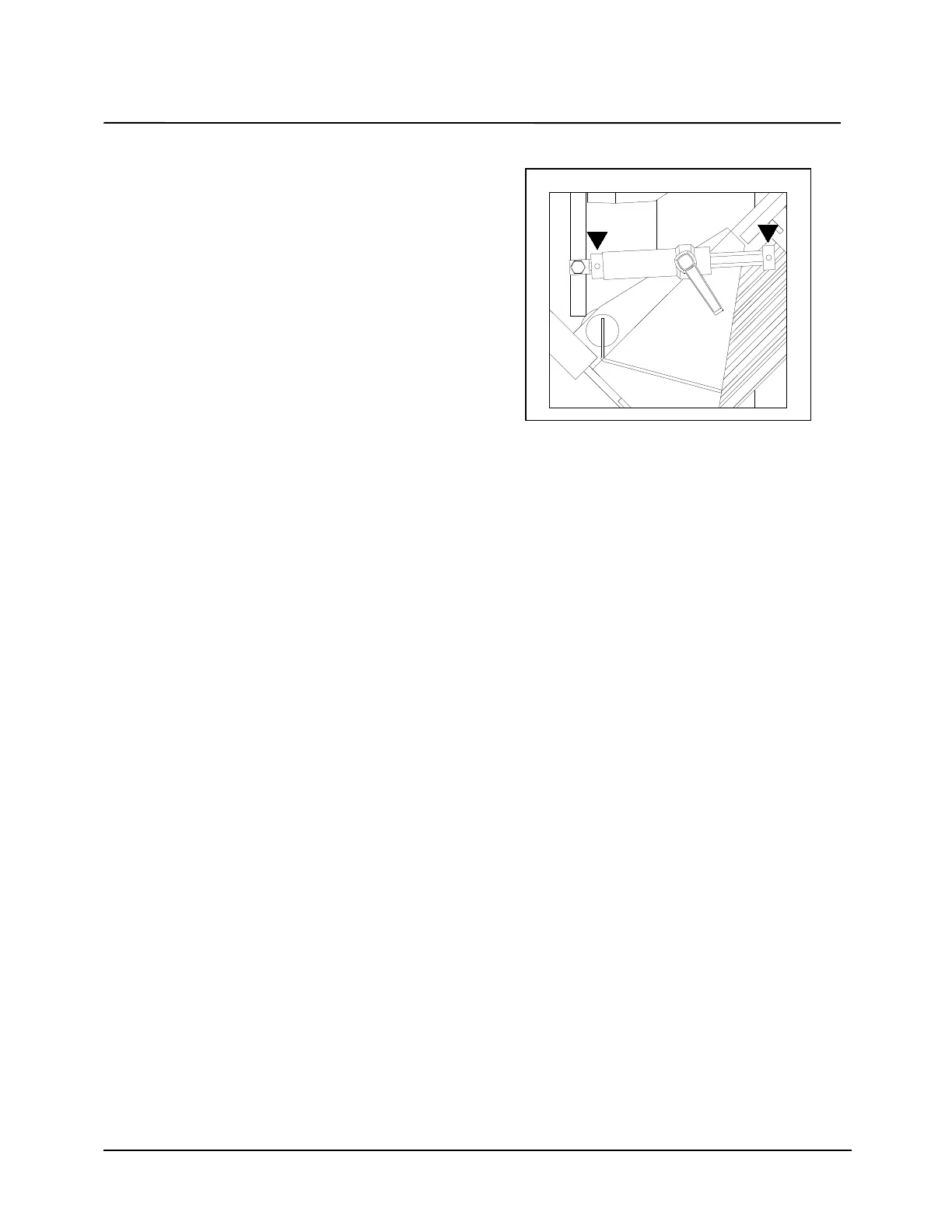

Figuur 9
