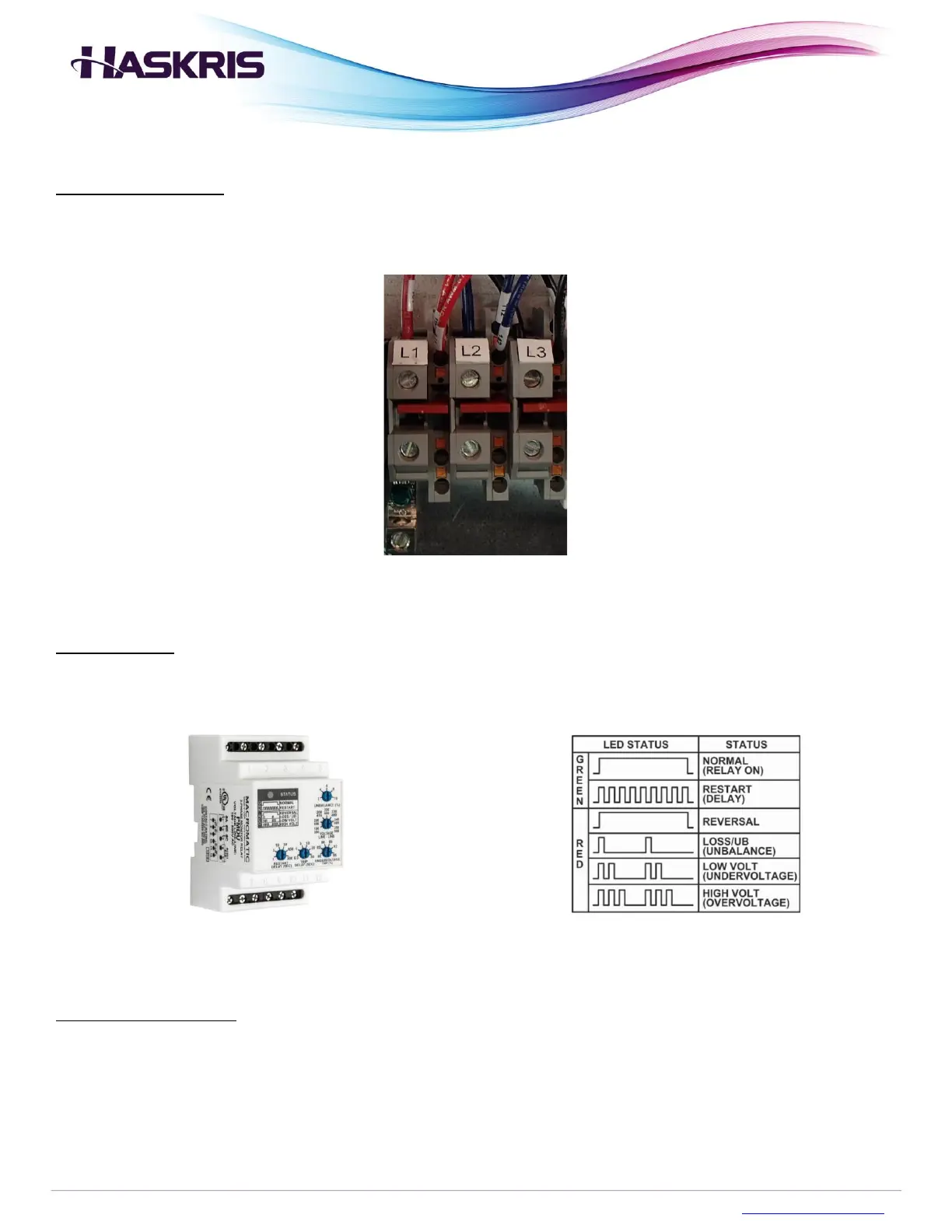

Electrical connection: Use a dedicated service disconnect and time delay fusing. Connect incoming
electrical to the distribution block in the main electrical box.
Distribution Block
Phase monitor: Chillers include a phase monitor. Refer to the fault indicators provided on the phase
monitor and contact a licensed electrician to correct any faults.
Phase monitor
Phase fault LED status patterns
Energizing the service: Electrical power must be applied to the chiller at least 12 hours in advance of
startup. This energizes the crankcase heater and drives out any accumulated liquid refrigerant in the
compressor.
