Hasselblad H2 User Manual

6

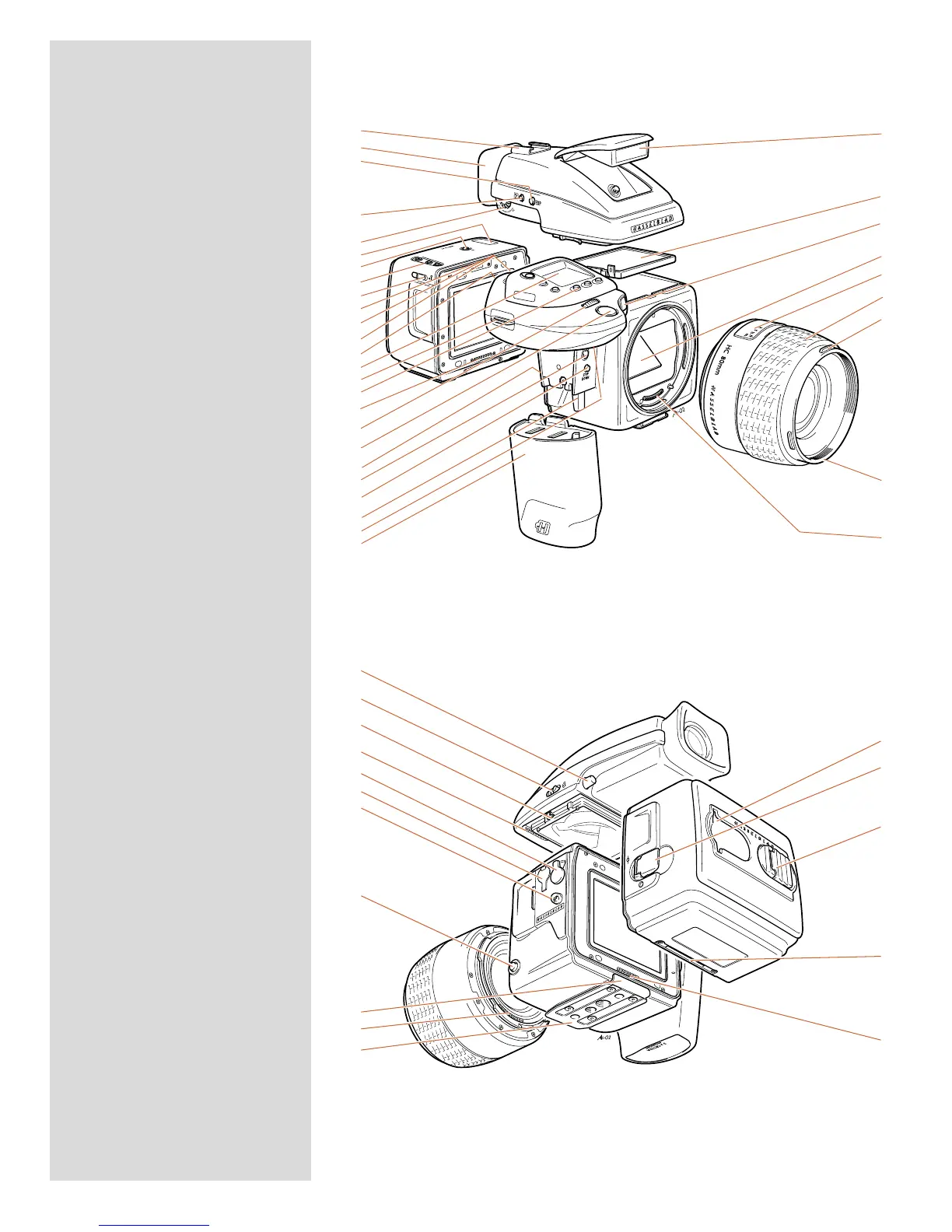

1. Flash unit hot-shoe
2. Rubber eyecup
3. Exposure mode and metering
method selector button
4. Exposure compensation button
5. Eyepiece adjustment dial
6. Magazine LCD
7. Magazine LCD illumination button
8. Magazine control buttons
9. Magazine settings lock
10. AE-L button
11. Film wind-off button
12. User button
13. Rear control wheel
14. Grip LCD
15. Support strap lug
16. Camera control buttons
17. Magazine databus
18. Front control wheel
19. Shutter release button
20. Battery holder button
21. Release cord socket
22. Stop down button
23. Battery holder retaining lever
24. Mirror up button
25. Battery holder
26. Flash unit
27. Viewfinder screen
28. Focus assist light
29. Mirror
30. Distance and depth-of-field scales
31. Focusing ring
32. Lens shade bayonet
33. Filter screw thread
34. Databus connection
35. Viewfinder release button
36. Flash unit catch
37. Viewfinder attachment hook
38. Viewfinder databus connection
39. Magazine release button
40. Flash PC socket
41. Camera strap lug
42. Lens release button
43. Magazine support
44. Databus connection
45. Quick coupling tripod plate
46. Film tab holder
47. Magazine darkslide key
48. Film holder key
49. Magazine support groove
50. Databus connection
H1, hf.eps
020827
COPYRIGHT ' 2002 ANDERS ENGSTR M
ANDERS ENGSTR M, ILLUSTRAT
R
stra
v gen 46
430 91 H N
tel/fax 031-96 84 64
anders.968464@telia.com
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.

Hasselblad H2 Specifications

General

Camera Type	Medium Format DSLR
Sensor Type	CCD
Sensor Size	36.7 x 49.0 mm
Lens Mount	Hasselblad H
Shutter	Focal Plane Shutter
Flash Sync Speed	1/800 sec
ISO Range	50-400
Shutter Speed Range	32 min to 1/800 sec
Focus Modes	Manual, Autofocus
Exposure Modes	Program, Aperture Priority, Shutter Priority, Manual
Storage	CF card
Weight	1460 g (without lens)
