Form No. 3CSFRM-0118
5
English
Model 208 V 240 V 220-230 V
FR-3 NEMA 6-20P NEMA 6-20P ---
FR-4 NEMA 6-30P NEMA 6-30P ---
FRC-I, -II NEMA 6-20P NEMA 6-20P Cord, No Cap

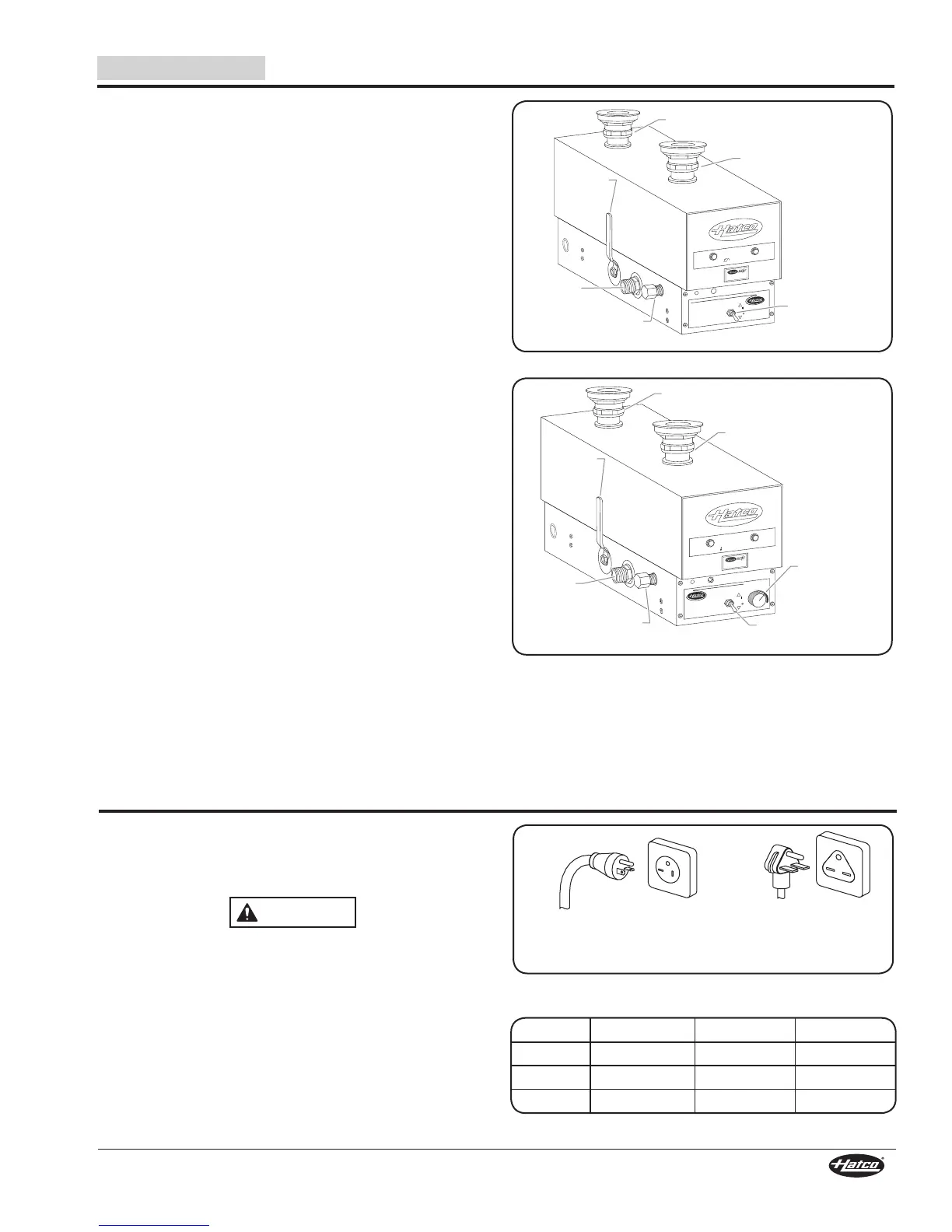

MODEL DESCRIPTION
All Models
The 3CS and FR Model water heaters mount under a sink
or holding vessel, leaving the interior of the holding vessel
free of obstructions. They include a stainless steel front,
powdercoated body, and two drain outlets. These water heaters
feature a unique dual reservoir system designed for cleaning
convenience. One reservoir contains the heating element and
always should be filled with water. The other reservoir traps and
collects soil carried from a sink or holding vessel .
Each unit comes with a one year parts and labor warranty and
a five year limited tank warranty. Units are shipped completely
assembled and ready to install with all gaskets and fittings.
Options include a security package and a stainless steel body
and base. A temperature monitor and a temperature light are
available for 3CS Models. A flush hose kit is available as an
accessory. Refer to the OPTIONS AND ACCESSORIES
section for details.
3CS Models
Hatco 3CS Model heaters are designed for use with any
manual dishwashing operation. These units maintain sanitizing
rinse water above 180ºF (82ºC).
FR Models
Hatco FR Model heaters are designed to be used with a
Bain-Marie or Food Rethermalizer to heat or hold foods at
temperatures between 140ºF and 190ºF (60° and 88ºC). The
desired holding temperature is maintained by an adjustable
water temperature control.
FRC-I and FRC-II Models
Hatco Corn Cooker models FRC-I and FRC-II utilize a Hatco
FR-3 heater. The Corn-Cooker is completely assembled
and comes equipped with an electrical power cord and plug.
The unit may include a stand or as a vessel inserted into a
countertop.
POWER
ON
LOW WATER
REFILL & RESET
PARTS & SERVICE
ASSISTANCE
www.hatcocorp.com
800-558-0607
Fill sink before turning power on.
Disconnect power before servicing heater.
RESET
ON
OFF
WATER HEATER
HATCO CORP. MILWAUKEE, WI U.S.A
U.S. PAT. NO. 3291965 CAN. PAT. NO. 761083
Outlet
Inlet
Drain
Handle
(closed)
Power
ON/OFF (I/O)
Toggle Switch
Heating Chamber
Drain w/ Pipe Cap
Sump
Drain
3CS Model
POWER
ON
WATERAT
TEMPERATURE
PARTS & SERVICE
ASSISTANCE
www.hatcocorp.com
800-558-0607
Fill sink before turn
in
g power on.
Drain and clean heater daily.
RESET
ON
OFF
WATER HEATER
HATCO CORP
. MILWAUKEE, WI U.S.A
U.S. PAT. NOS. 329
1965 3636308
Outlet
Inlet
Drain
Handle
(closed)
Power ON/OFF
(I/O) Toggle Switch
Water
Temperature
Control
Heating Chamber
Drain w/ Pipe Cap
Sump
Drain
FR Model
Plug Configurations
Some FR units are supplied from the factory with an electrical
cord and plug installed and are shipped with a receptacle. Plugs
and receptacles are supplied according to the applications.
ELECTRIC SHOCK HAZARD: Units supplied with an
electrical cord, plug, and receptacle require installation of
receptacle to on-site electrical system. Connection must
be properly grounded and of correct voltage, size, and
configuration for electrical specifications of unit. Contact
a qualified electrician to determine and install proper
electrical connection.
NOTE: The specification label is located on the lower right side
on the front of the unit. See label for serial number and
verification of unit electrical information.
NEMA 6-20P
Standard for FRC-I and FRC-II
(Optional for FR-3)
NEMA 6-30P
(Optional for FR-4)
Plug Configurations
SPECIFICATIONS
