Sultan 234 Series
Admittance Smart Switch Series
Manual
Rev 1.2, June 2008

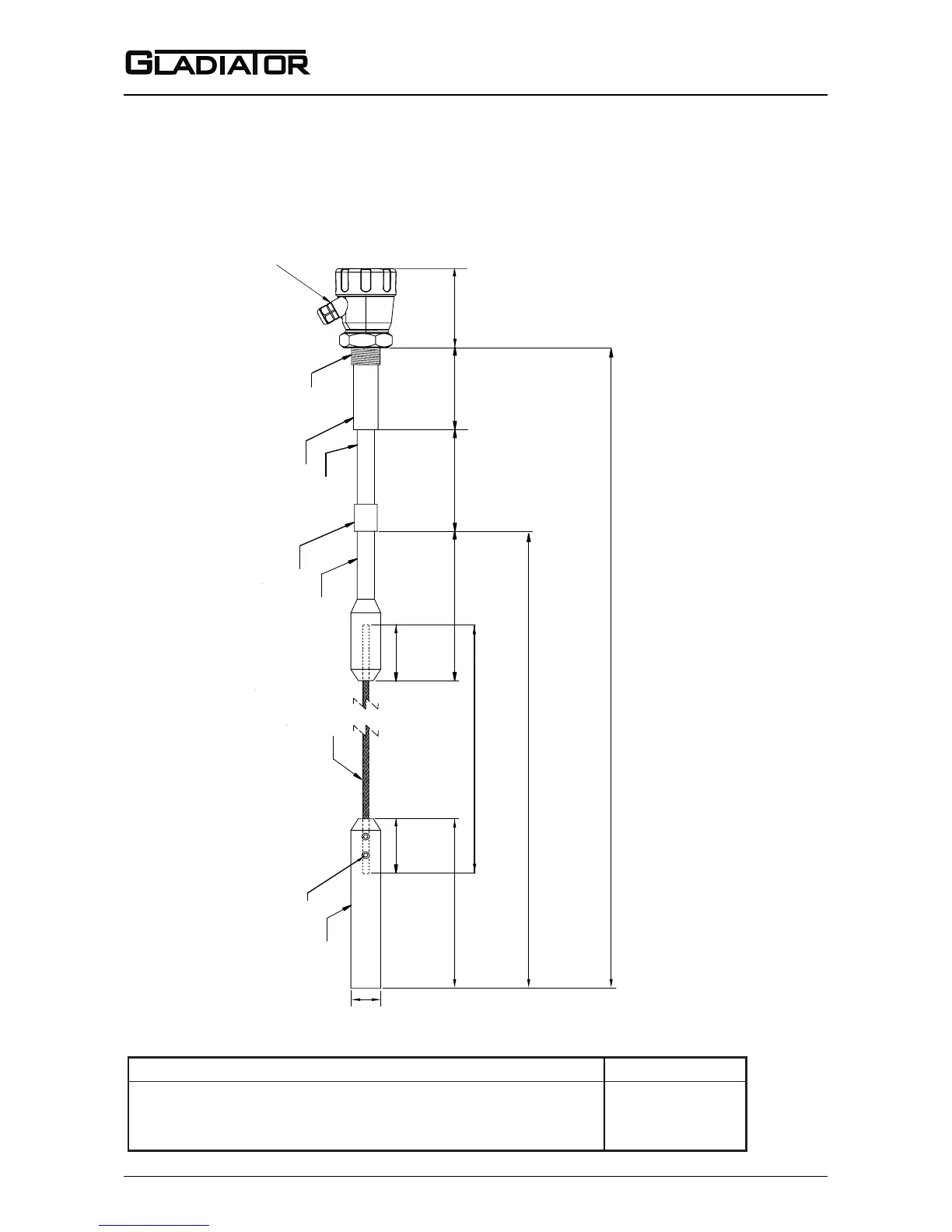

DIMENSIONS
FLEXIBLE CABLE PROBE
M20 x 1.5
or 3/4” NPT adaptor
115mm
Cable Length (mm, inch) Active + Guard + Ground (Rope Length)
C100 (1000mm, 39.3”) = 750mm, 29.5” + 250mm, 9.8” 451mm, 17.8”
C200 (2000mm, 78.7”) = 1750mm, 68.9” + 250mm, 9.8” 1451mm, 57.1”
C300 (3000mm, 118.1”) = 2750mm, 108.3” + 250mm, 9.8” 2451mm, 96.5”
SS 316
Removable grub screws
for cable adjustment
Ø 8mm (0.3”)
SS 316
Teflon
SS 316
Teflon
SS 316
100mm (3.9”)
Ground
150mm (5.9”)
Guard
Rope
250mm (9.8”)
Weight
Active
Cable Length
Mounting Thread
(1.5” NPT or BSP only)
Ø 40mm (1.6”)
83mm (3.3”)
83mm (3.3”)
215mm (8.4”)

Hawk Gladiator AS2100 Specifications

General

Brand	Hawk
Model	Gladiator AS2100
Category	Switch
Language	English
