desired temperature is in the “Settings Menu”. If applicable, the homeowner will be prompted
to enter separate pool and spa desired temperature settings. Depending on the position of
the pool/spa suction valve, the proper temperature setting will be used.
Solar Extend
If “Enabled”, the filter extend logic keeps the filter pump running beyond the normal turn-off
time if solar heat is still available. When solar heat is no longer available, both the solar
valve/pump and filter pump will turn off simultaneously. Solar extend will NOT cause the
filter pump to turn on, it will only delay the turn off time when solar is operating.
Solar Priority
If both “Solar Control” and “Heater Control” are enabled, the Solar Priority feature will keep
the conventional heater off whenever solar heat is available. This provides the most cost
effective way of heating the pool. When solar heat is not available, the conventional heater
will operate normally.

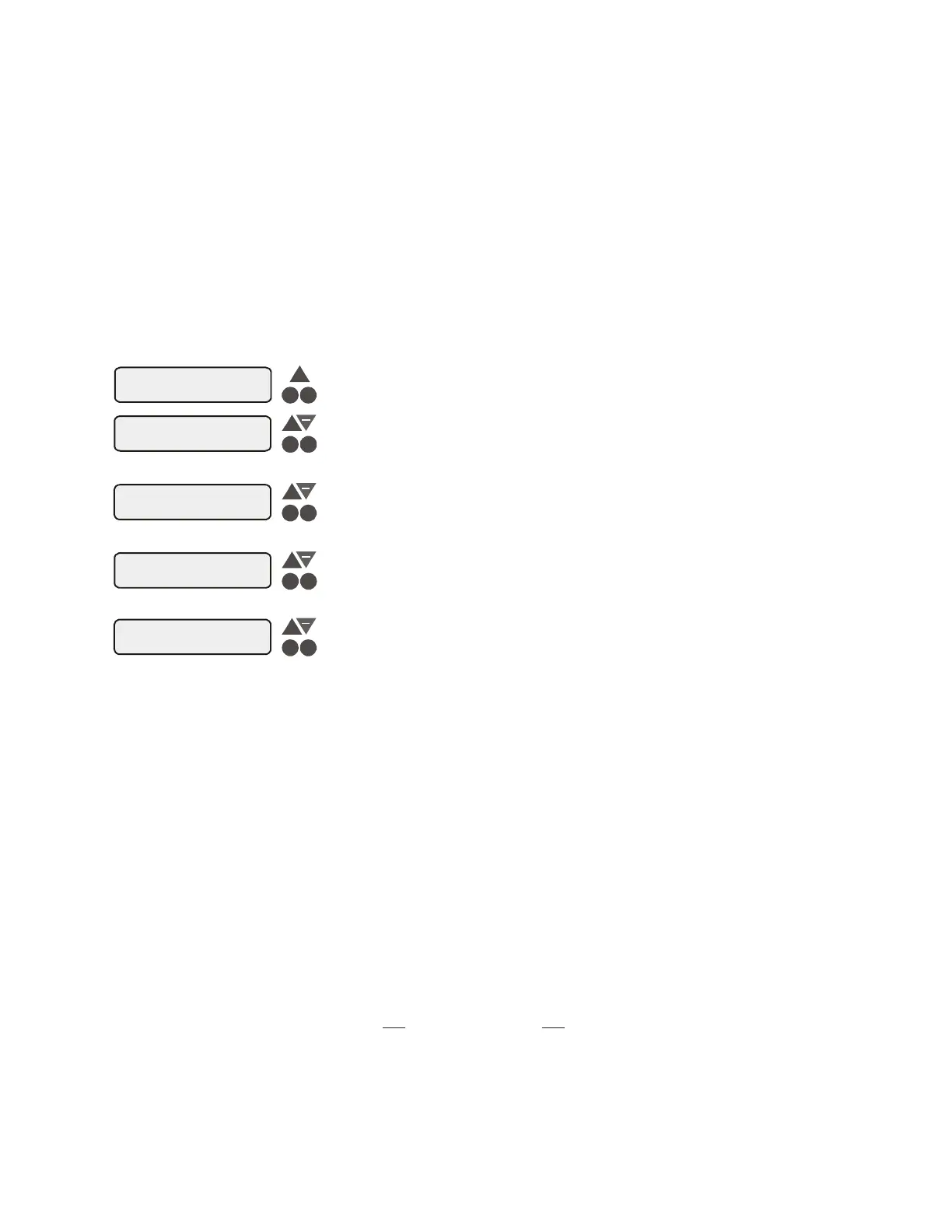

Lights Interlock
Disabled
Lights Freeze
Disabled
+
+
>
>
>
>
Toggle between Enabled and Disabled (default) Lights Interlock
Toggle between Enabled and Disabled (default) Lights Freeze Protection
Move to next menu item
Move to previous/next configuration menu
Lights Config.
+ to view/change
Lights Function
Manual On/Off
Lights Relay
Standard
+
+
+
>
>
>
>
>
>
Push to access Lights options
Rotates between
options, and Super Chlorinate
Manual On/Off (default), Countdown Timer, Timeclock,
Solar, Low speed of a 2-speed pump
Toggle between Standard (default) and Dimmer
Move to previous/next configuration menu item
Move to next menu item
Move to next menu item or previous/next configuration menu
for all functions except solar and
low speed of 2-speed filter pump and dimmer
for all functions except
low speed of 2-speed filter pump
for manual on/off, countdown
timer and timeclock functions
Lights Function
Although designated as the “Lights” output, the function of the lights relay is similar to the
aux1 and aux2 relays. If pool lights are wired to the lights relay, some options including Solar
function, Low Speed of a 2-Speed Filter Pump, Lights Interlock and Lights Freeze Protection
will not be necessary and should be disabled. If no pool lights are used, the lights relay can
be used to control other pool devices that may require these options. The function of each
option is shown below.
Manual On/Off—the lights relay will alternate between turning on and off when the LIGHTS
button is pressed. There is no automatic control logic.
Countdown Timer—the lights relay will turn on when the LIGHTS button is pressed. The
lights relay will turn off automatically after a programmed time (see Timers Menu in Operation
Manual). The LIGHTS button can also be used to turn the output off.
Timeclock – the lights relay will turn-on and turn-off at the times set for the lights timeclock
in the Settings Menu (see Settings Menu in Operation Manual). The LIGHTS button can
also be used to turn the output on and off.
Solar – the lights relay can operate a solar booster pump which will turn on when the filter
pump is running and solar heat is available and the water is less than the desired temperature
setting. It is important to note that “Solar Control” must be enabled in the “Solar Config.”
menu for proper operation to occur.
Low Speed of a 2-speed Filter Pump – the Aqua Logic will turn on the lights relay whenever
the low speed operation of the filter pump is required. It is very important that the “2-speed”
filter pump option be selected under the “Filter Config.” Menu for proper operation.
