Manual System Operation
While the main objective of the Aqua Logic is to automate the operation of your pool/spa system, there
may be certain times when you want to override the automatic operation and control the equipment manu-
ally. To operate the pool equipment manually while keeping the automation active, perform the following
procedures. Note that if you turn a relay on manually, it will remain on until either you turn it off manually,
or the next time the programmed automatic operation would normally turn that relay off. Example: the
filter pump is programmed to run from 9:00A to 5:00P daily. If you turn the filter pump on manually at
8:00PM, it will run continuously until the next day at 5:00PM at which time it will turn off and follow the
normal program from then on. Manually turning off a relay works in a similar fashion.
Filter Pump
Single Speed Filter Pump: If the pump is currently off, press the FILTER button to turn on the pump.
Pressing the FILTER button again will turn off the pump. However, if there is a heater in the system, and
it is operating, and the “Heater Cooldown” feature is enabled (Configuration Menu) then: when you press
the FILTER button to turn off the filter, only the heater will turn off, the Filter LED will flash and the display
will indicate “Heater Cooldown”. At this point the filter pump will automatically turn off after 5 minutes of
heater cooldown operation. If you want to override the heater cooldown, simply press the FILTER button
again to turn off the filter pump.
Two Speed Filter Pump: If the pump is currently off, simply press the FILTER button to turn on high
speed operation of the filter pump. The “Filter” LED will illuminate continuously. Pressing the FILTER
button again will switch to low speed operation and the “Filter” LED will flash. If you attempt to switch to
low speed shortly after turning on high speed the filter pump will automatically remain in high speed for 3
minutes before switching to low speed to allow the pump to prime and establish normal water flow.
Freeze Protection: This function protects the pool, plumbing, and equipment against freeze damage. If
Freeze Protection is enabled and the AIR temperature sensor falls below the preset freeze protection
temperature (see Filter Pump Configuration), the Aqua Logic will turn on the filter pump to circulate the
water.

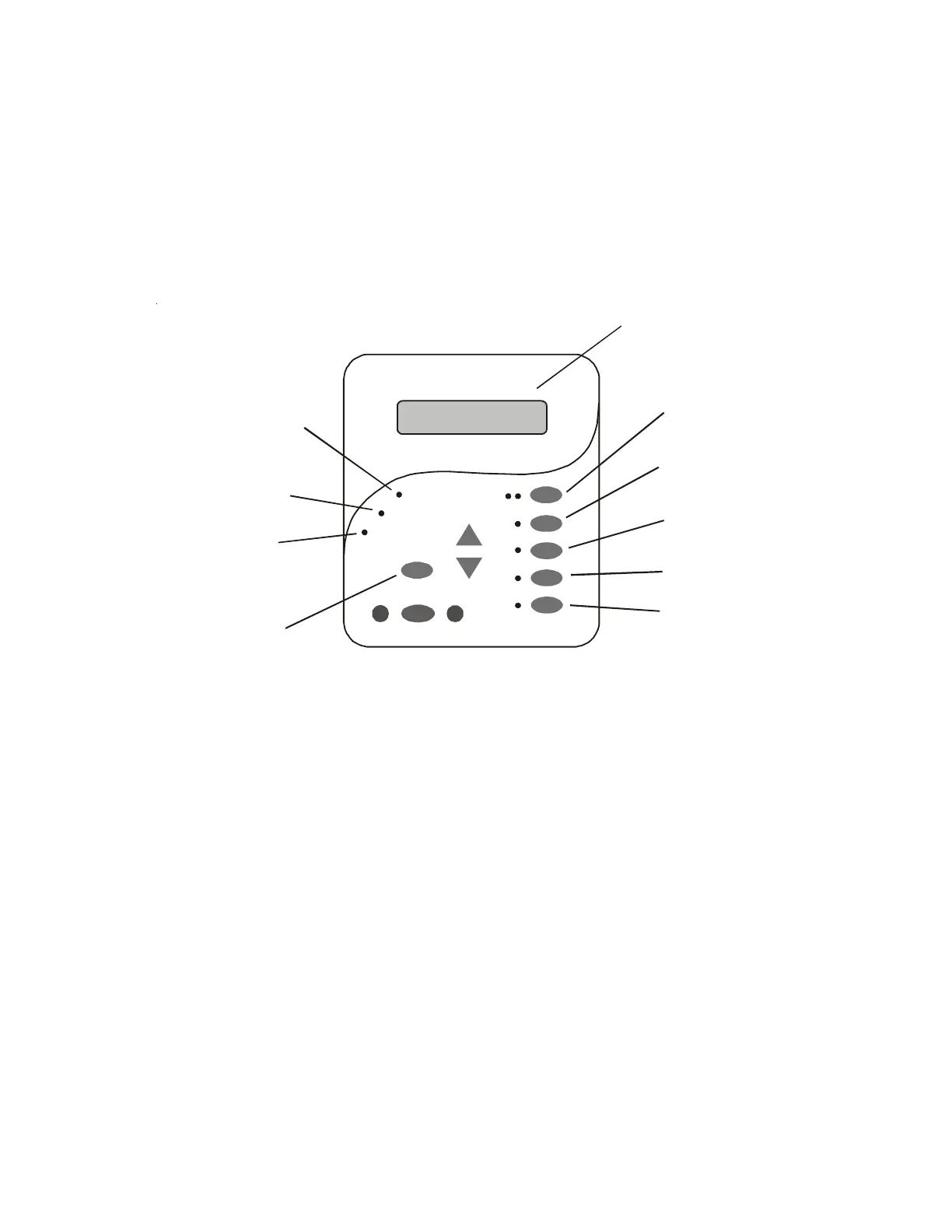

Salt Level
3200ppm
Pool/Spa
Filter
Lights
Service
Aux 1
Aux 2
Filter Pump
(On/Off)
Lights
(On/Off)
Aux 1
(On/Off)
Aux 2
(On/Off)
Pool/Spa Button
(Pool/Spa/Spillover)
Heater Indicator
Valve 3
Indicator
Check System
Indicator
Service Button
(main display only)
Display
