USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
16

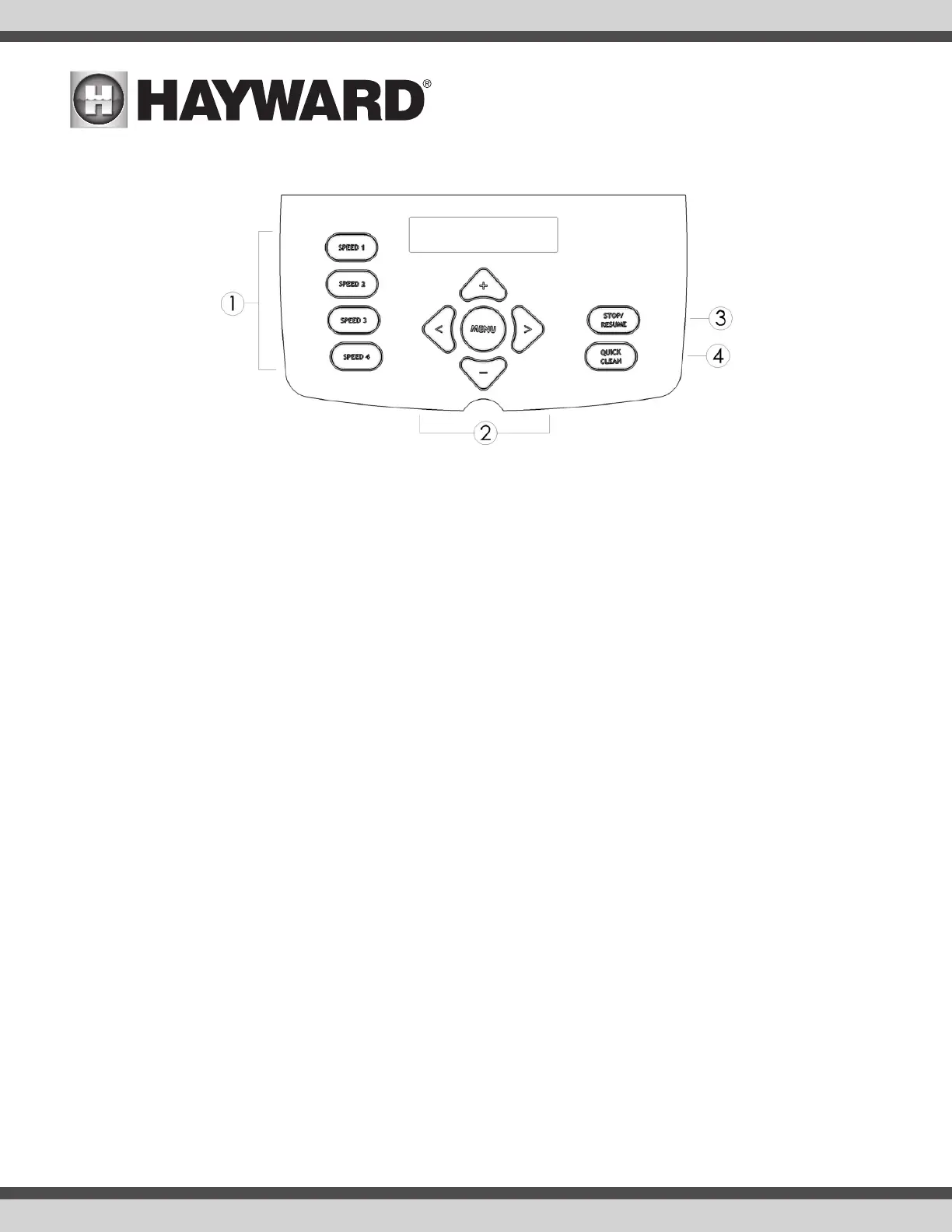

User Interface Summary
1. Preset Speeds: Buttons labeled SPEED 1 thru SPEED 4 can be used to run the pump at a predetermined speed until the next programmed timer is sched-
uled to begin. Preset Speed settings can be quickly updated using the + and - arrow buttons to change the speed and then pressing the > button to save
the new speed setting if desired.
a. Default Speeds:
• Speed 1: 1150 rpm
• Speed 2: 1725 rpm
• Speed 3: 2300 rpm
• Speed 4: 2875 rpm
2. Menu/navigation buttons: The MENU button will scroll through the setup menus when pressed. The < and > arrow buttons are used to move between
displays and to select parameters to edit, and the + and - arrow buttons are used to change parameters.
3. Stop/Resume: This button is used to stop the pump to allow strainer basket cleaning, etc. When this button is pressed, the pump will remain stopped until
the button is pressed a second time to resume normal operation.
4. Quick Clean: QUICK CLEAN is a mode intended for use when the pool will be cleaned with a suction side vacuum.
Menu Outline
1. Configuration Menu (see page 17 for basic product configuration)
a. Display Language
b. Set Day and Time
c. Speed Selection
d. Max Allowed Speed
e. Min Allowed Speed
f. Prime Duration
g. Remote Control Mode
h. Low Temp Operation
i. Low Temp Setting
j. Password Protection
k. Password Timeout
l. Set Password
2. Timer Menu (see page 19 to program the 8 speeds with timer functions)
a. Rename Timer “X” (where “X” equals 1 through 8)
b. Pump Speed for Timer “X” (where “X” equals 1 through 8)
c. Start/Stop Time for Timer “X” (where “X” equals 1 through 8)
d. Choose Days for Timer “X” (where “X” equals 1 through 8)
To Next Page
