USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
24

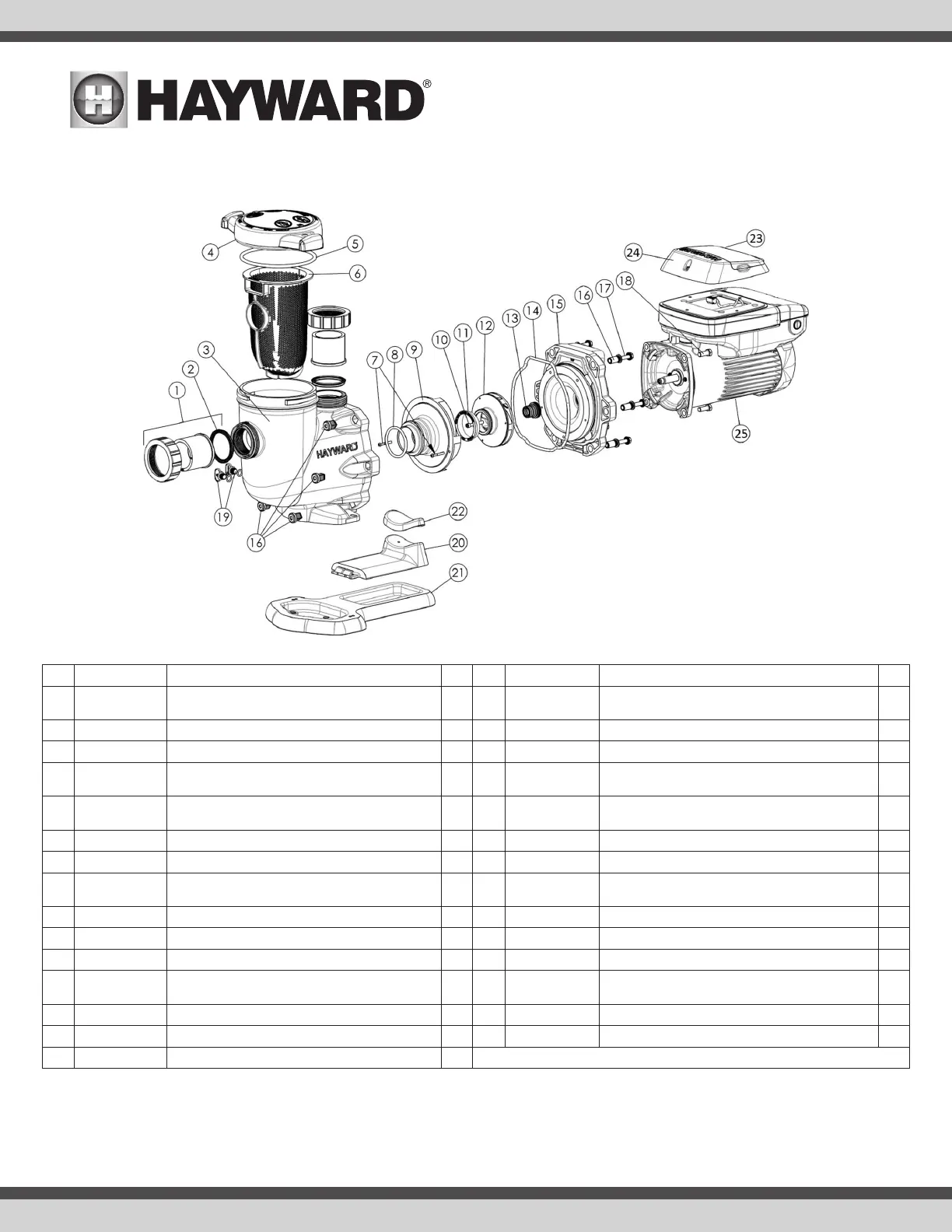

Replacement Parts
No. Part Number Description Qty. No. Part Number Description Qty.
1 SPX3200UNKIT
Union Connector Kit (Includes 2 Nuts, Connectors &
Gaskets)
1 14 SPX3200T Housing O-Ring 1
2 SPX3200UG Union Gasket 1 15 SPX3200E Seal Plate 1
3 SPX3200A Pump Strainer Housing, 2” x 2 1/2” with Drain Plugs 1 16 SPX3200Z211 Housing Insert/Seal Plate Spacer Kit 1
4A SPX3200DLS
Strainer Cover Kit (Includes Strainer Cover, Lock Ring &
O-Ring)
1 17 SPX3200Z3 Housing Bolt 1
4B SPX3200DLSB
Strainer Cover Kit for Biguanide Sanitizers (Includes
Strainer Cover, Lock Ring & O-Ring); NOT Pressure Testable
1 18 SPX3200Z5 Motor Bolt 1
5 SPX3200S Strainer Cover O-Ring 1 19 SPX4000FG Drain Plug with O-Ring 1
6 SPX3200M Strainer Basket 1 20 SPX3200GA Motor Support 1
7 SPX3200Z8 Diffuser Screw 1 21 SPX3200WF
Optional Riser Base aligns with Pentair
®
WhisperFlo
®
pump*)
1
8 SPX4000Z1 Diffuser O-Ring 1 22 SPX3200Q Motor Support Adapter 1
9 SPX3200B3 Diffuser 1 23 SPX3400DR4 Motor Drive Display Cover (Cover only) 1
10 SPX3200Z1 Impeller Screw 1 24 SPX3200LCD Digital Control Interface Assembly 1
11 SPX3021R Impeller Ring 1 25A SPX3202Z1VSPE
Power End Assembly (Includes #7-15, 2 ea. #16-17, #18,
#24 & Motor Assy)
1
12 SPX3210C Impeller with Impeller Screw 1 - SPX3400DRKIT Wall Mount Kit 1
13A SPX3200SA Shaft Seal Assembly 1 - SPX3200DRCC Comm Cable Kit 1
13B SPX4000SAV Shaft Seal Assembly (Viton) 1
*WhisperFlo is a registered trademark of Pentair Aquatic Systems, which is used herein for identification purposes only. This is a retrofit base for existing WhisperFlo pump installations. Pentair Aquatic
Systems is not affiliated with Hayward Pool Products.
