HD Audio AS372 - Device Connections; AS372 Connector Diagram and Descriptions

HD 7.1 USB AUDIO V3.0

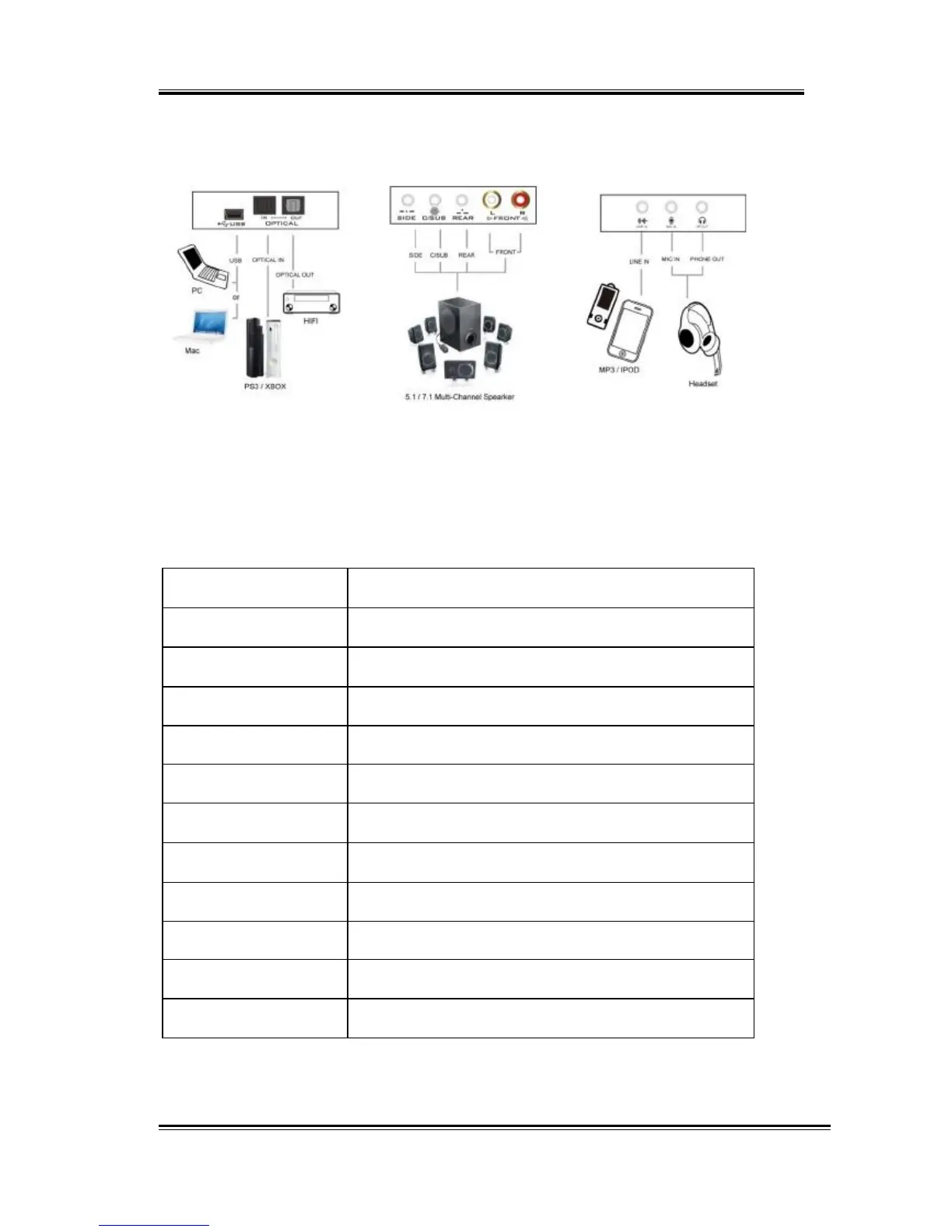

Figure of AS372 and Connections
Connections
Most of the audio devices, such as Speakers, Headphones and Hi-Fi
Amplifier can be connected to the connectors of AS372. Below table
shows the connectors and their descriptions:
6
Connector
Connections
Phone Out (3.5mm)
to stereo Headphones
Line In (3.5mm)
to MP3 player or any audio players
Mic In (3.5mm)
to Microphones
Line Out (RCA Left)
to RCA connector of Speaker (Left Channel)
Line Out (RCA Right)
to RCA connector of Speaker (Right Channel)
Rear Out (3.5mm)
to Rear Left and Right Speakers
C/Sub Out (3.5mm)
to Center and Subwoofer Speakers
Side Out (3.5mm)
to Side Left and Right Speakers
S/PDIF Output (Optical)
to the optical input of Digital Amplifier or Decoder
S/PDIF Input (Optical)
to the optical output of Digital Player
Mini USB
to the USB port of PC/NB System
