4 Planning and installation
4.1 Dimensions

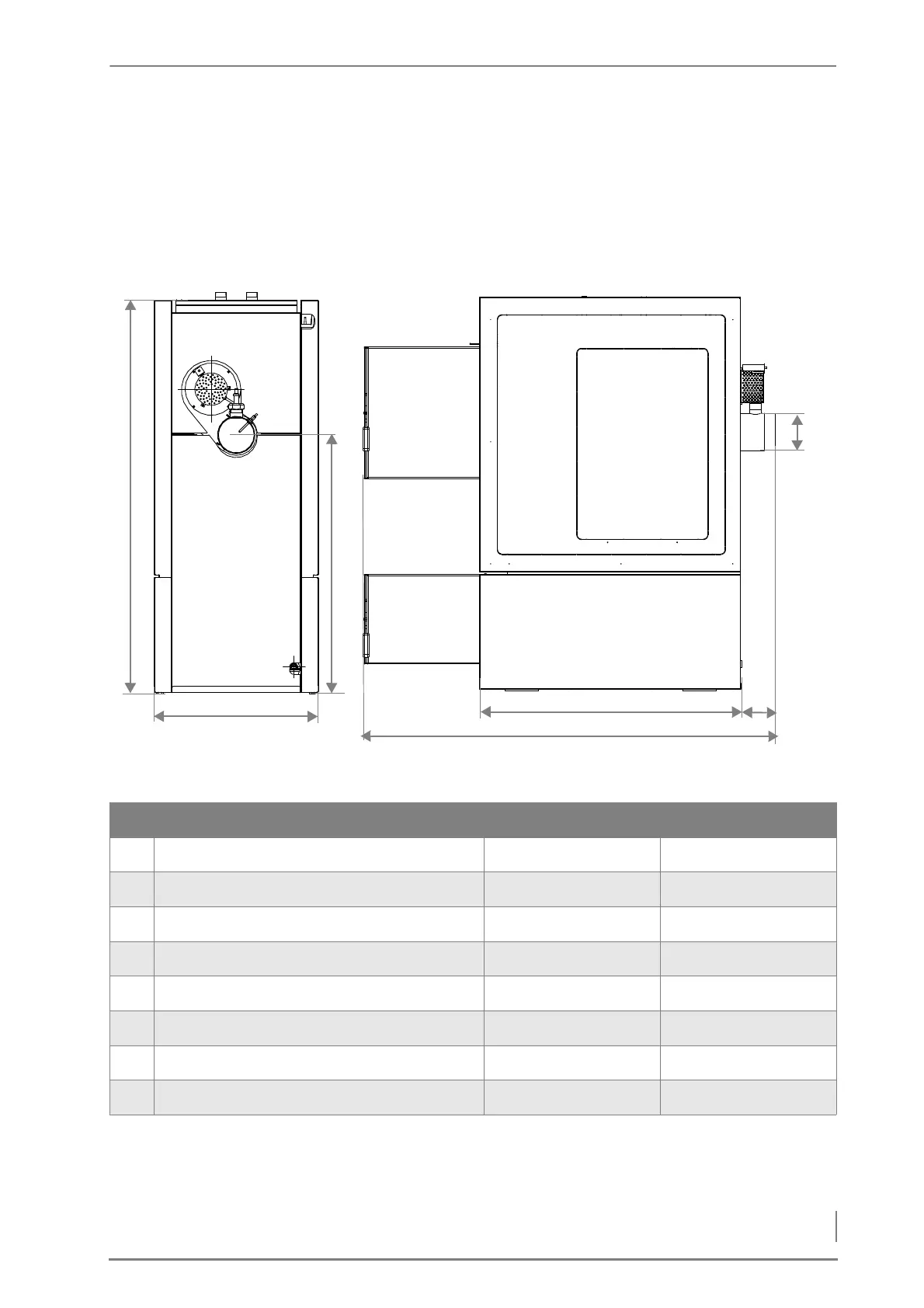

Figure 4/1 - Dimensions
C
B
A
G
F
E
D
HDG F20/25/30 HDG F40/50
A Boiler height 1590 mm 1650 mm
B Width of boiler 660 mm 760 mm
C Height to centre of flue gas connecting pipe 1040 mm 1070 mm
D Total length with opened fuel chamber door 1660 mm 1760 mm
E Boiler length 1050 mm 1100 mm
F Overhang of flue pipe connection 140 mm 140 mm
G Diameter of flue pipe connection 150 mm 150 mm
Fill opening dimension 470 x 420 mm 520 x 540 mm
Table 4/1 - Dimensions
