4 Planning and installation – Connecting the thermal safety device
47
1 Safety heat exchanger inlet (DN 15 outsize thread)
2 Thermal safety device (TAS)
3 Safety heat exchanger outlet (DN 15 outside thread)
4 Connection bushing for TAS immersion sleeve, DN 15 inside
thread
5 Runoff connection to drainage system

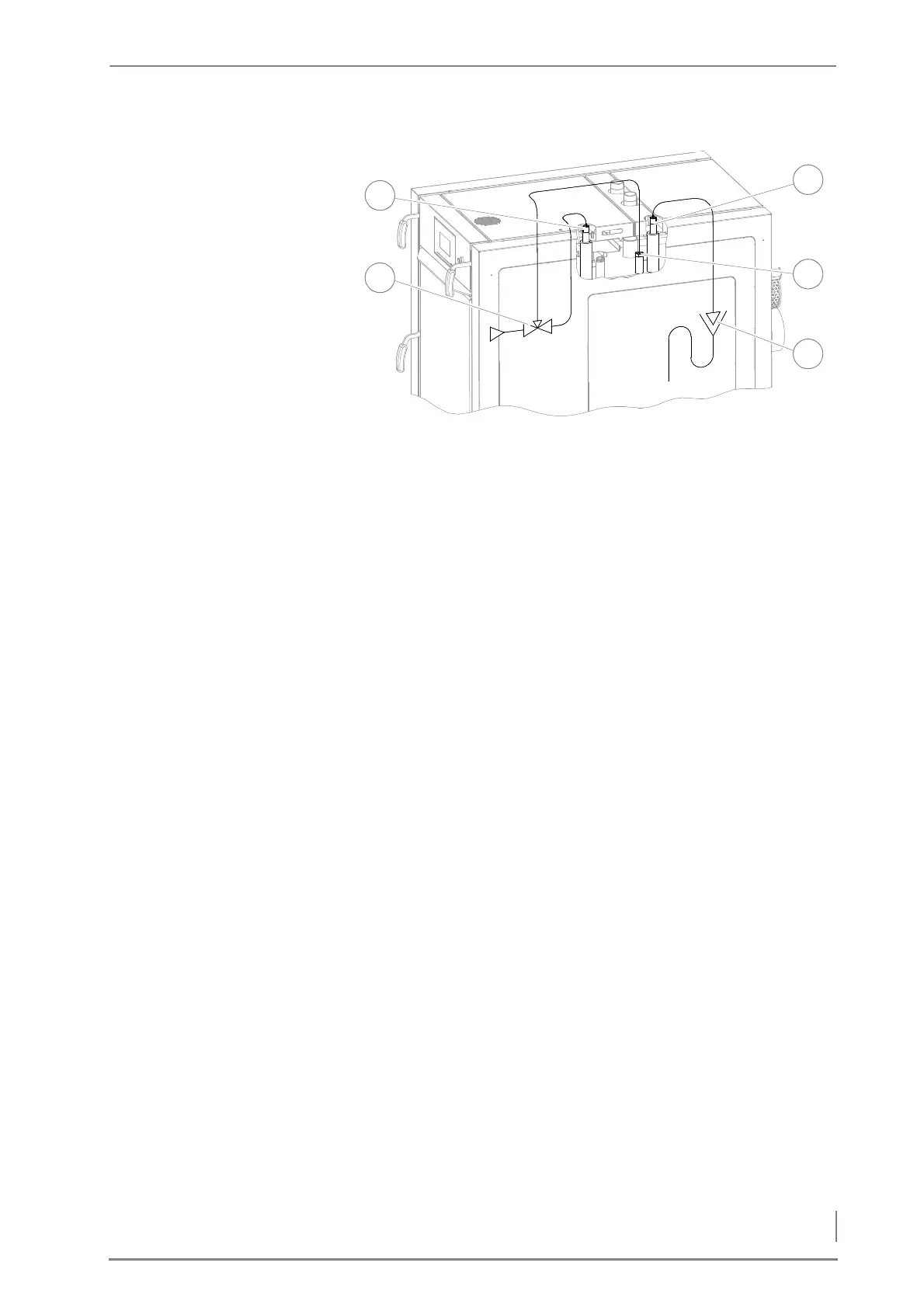

Figure 4/23 - HDG F20-50 thermal safety device
