32 ------------
~ HEATH ~
:fHiffliH@M
0
. ~~___,____
# 6 X l /4"
SHEET METAL
SC REW
-- ·- · ----·-- ....... 0)
--------==
-~
AC
VOLTAGE
SHIELD

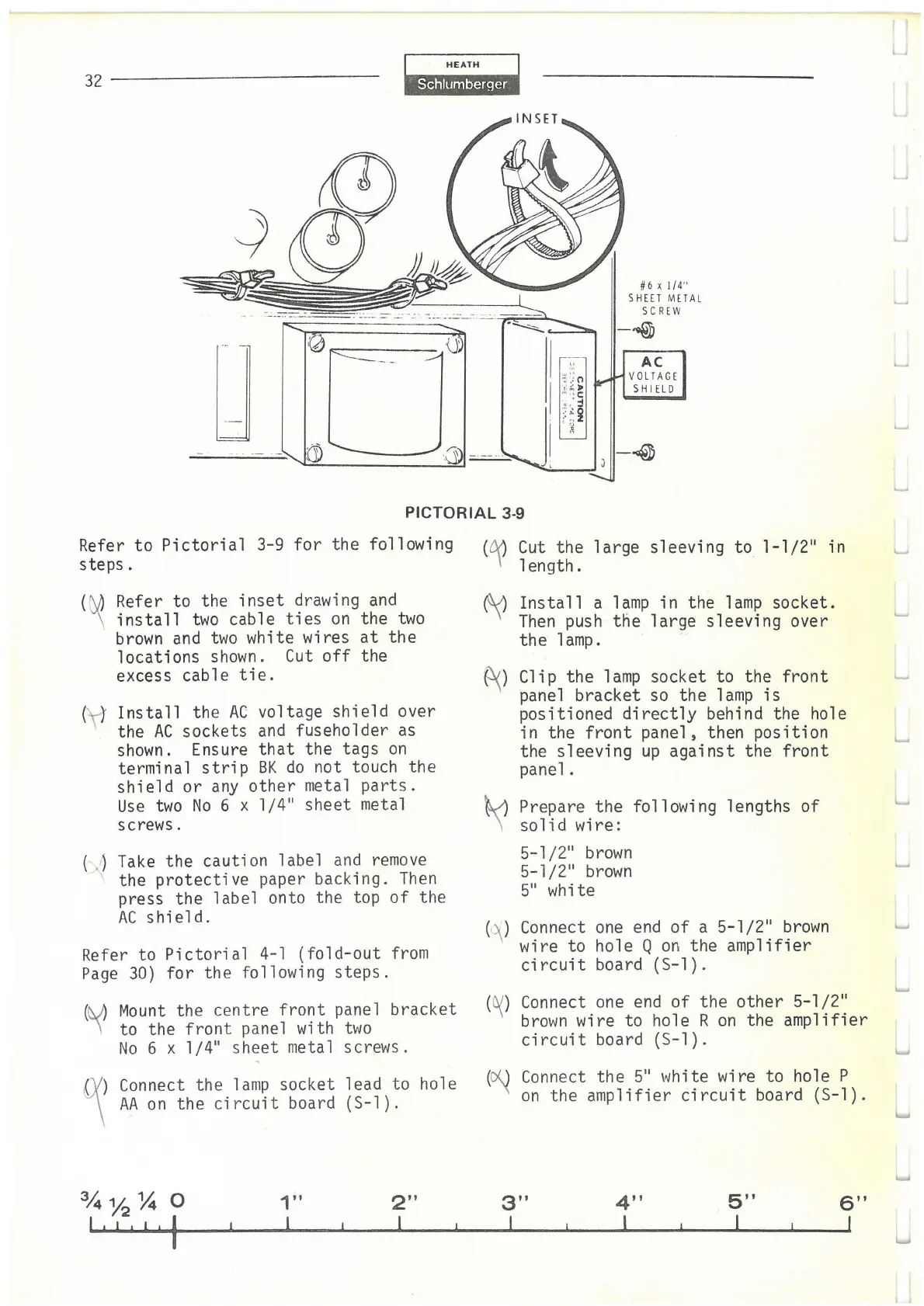

PICTORIAL 3-9
Refer to Pictorial 3-9 for the following
steps.
( tY.' Refer to the inset drawing and
\ install two cable ties on the two
brown and two white wires at the
locations shown. Cut off the
excess cable tie.
0 Install the AC voltage shield over
the AC sockets and fuseholder as
shown. Ensure that the tags on
terminal strip BK do not touch the
shield or any other metal parts.
Use two No 6 x 1/4
11
sheet metal
screws.
( .1
Take the caution label and remove
the protective paper backing. Then
press the label onto the top of the
AC shield.
Refer to Pictorial 4-1 (fold-out from
Page 30) for the following steps.
Mount the centre front panel bracket
to the front panel with two
No 6 x 1/4
11
sheet metal screws.
Connect the lamp socket lead to hole
AA on the circuit board (S-1).
1 "
2"
t I
Cut the large sleeving to. 1-1/2
11
in
length.
Install a lamp in the lamp socket.
Then push tne large sleeving over
the lamp.
Clip the lamp socket to the front
panel bracket so the lamp is
positioned directly behind the hole
in the front panel, then position
the sleeving up against the front
panel.
Prepare the following lengths of
solid wire:
5-1/2
11
brown
5-1/2
11
brown
5
11
white
{ 1\ ) Connect one end of a 5-1 /2" brown
wire to hole Q on the amplifier
circuit board (S-1).
(~) Connect one end of the other 5-1/2
11
brown wire to hole Ron the amplifier
circuit board (S-1).
( °'< Connect the 5
11
white wire to hole P
on the amplifier circuit board (S-1).
3" 4"
5"
6"
I I I
I
L,
