CALIBER DIRECT VENT INSTALLATION INSTRUCTIONS

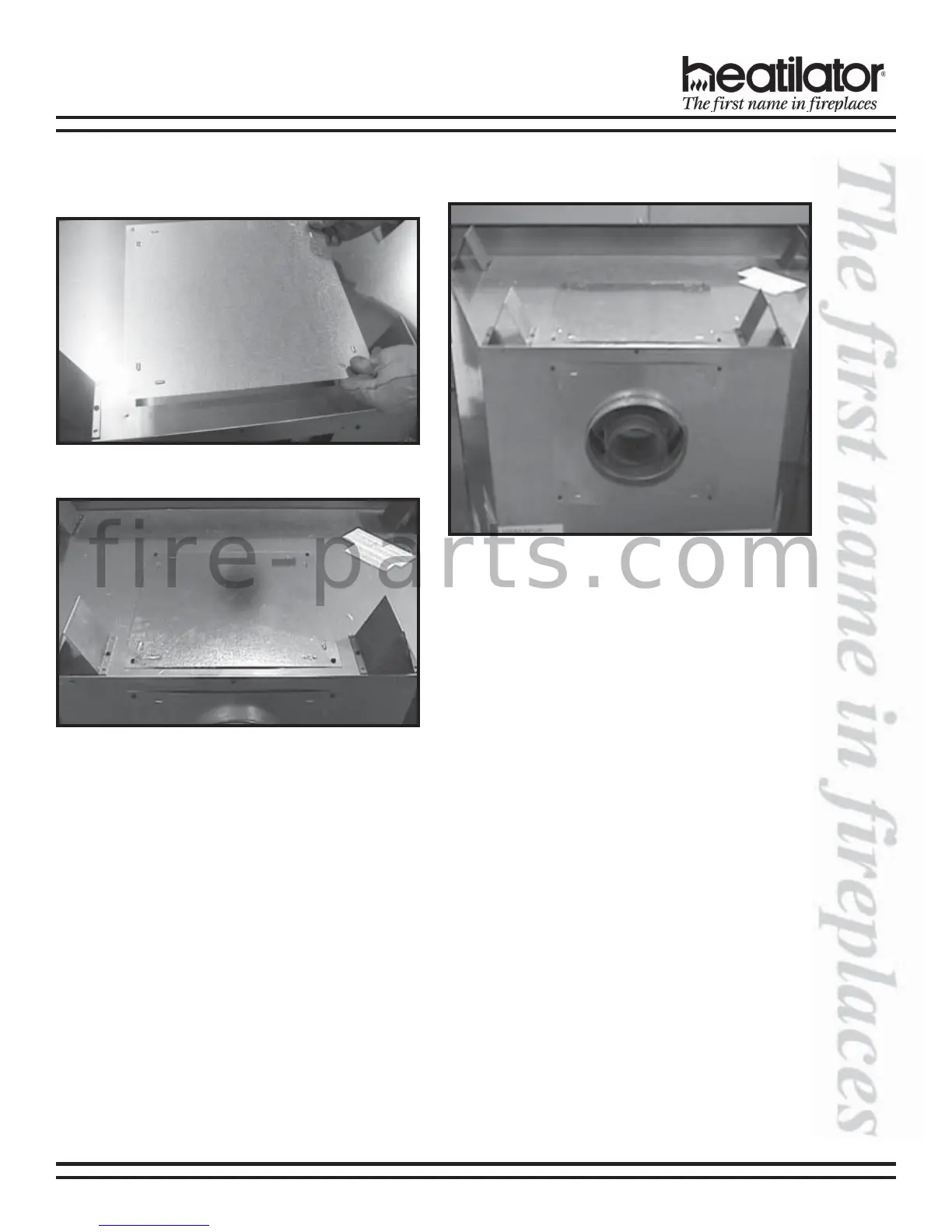

p. The appliance should look like the one shown in
Figure 21 after it has been converted to a rear
vent appliance.
Figure 21 - Completed Conversion
o. Locate the outer shell cover that was removed in
Step f. Place the cover on top of the appliance.
See Figure 19. Replace the four screws that hold
this plate in place. See Figure 20.
Figure 20 - Screw Cover Plate into Place
Figure 19 - Place Cover Plate on Top of the Appliance
