CALIBER DIRECT VENT INSTALLATION INSTRUCTIONS

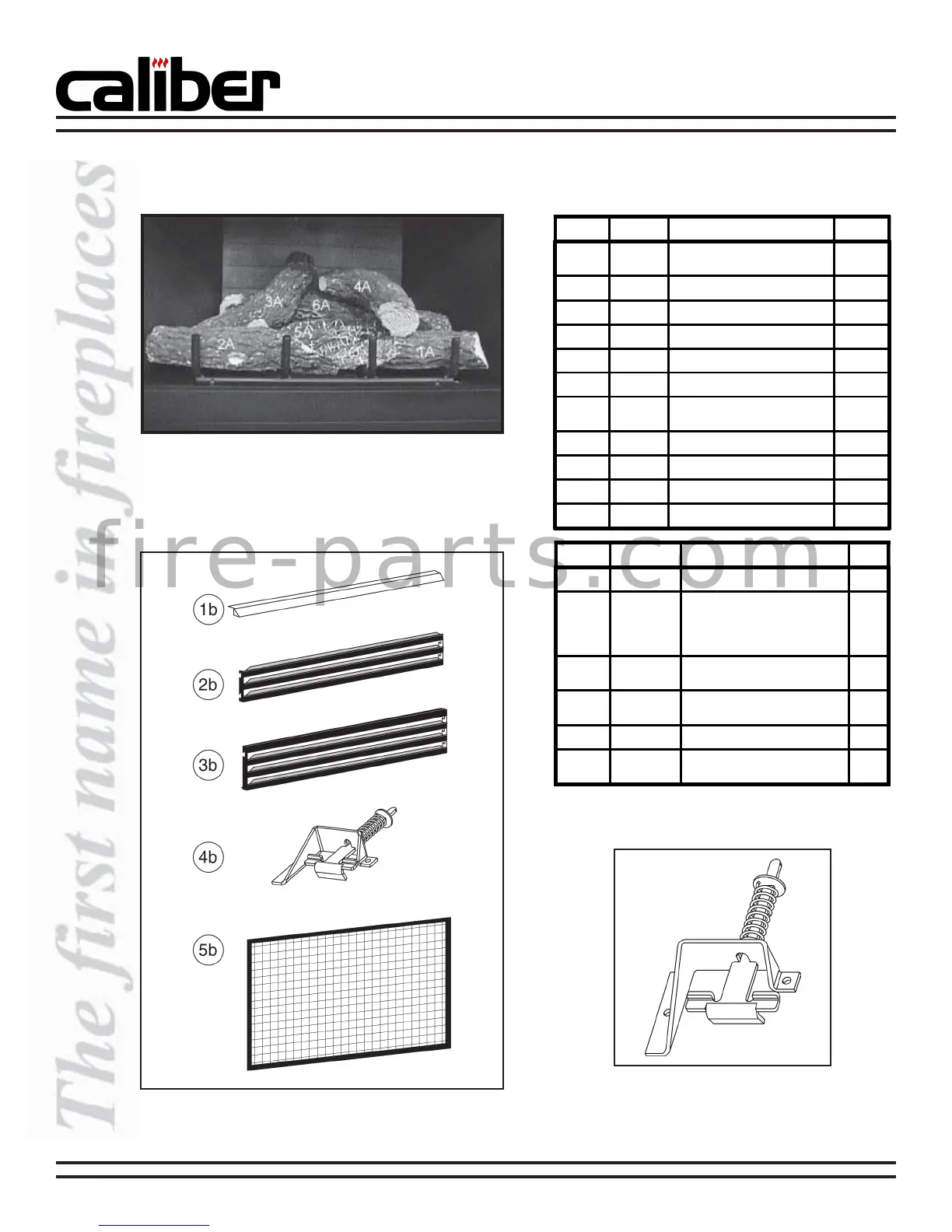

O. REPLACEMENT PARTS
Replacement parts are available from you distributor/dealer.
Item B - Panels, etc.
Item 4b - Quick Access Latch™ - Close-up
Visit our Website at: www.heatilator.com for a dealer/distributor near you!
Item A - Gas Log Assembly
ITEM PART # DESCRIPTION QTY
A
30837
30846
Grate/Log Assembly - 60
Grate/Log Assembly - 80
1
1
1a 29780 Front Right Log 1
2a 29779 Front Left Log 1
3a 29829 Middle Left Log 1
4a 29830 Top Right Log 1
5a 30037 Burnt Out Log 1
6a
30036
30167
Back Log - 60
Back Log - 80
1
Fire 98 Fire Glow (not shown) 1
14333B Rock Wool (not shown) 1
28746 Vermiculite (not shown) 1
28911 Lava Rock (not shown 1
ITEM PART # DESCRIPTION QTY
B Panels, etc.
1b
29575
29577
29576
29588
Hood - 60
Brass Hood - 60
Hood - 80
Brass Hood - 80
1
1
1
1
2b
26637
26638
Upper Grille - 60
Upper Grille - 80
1
1
3b
25016
25144A
Lower Grille - 60
Lower Grille - 80
1
1
4b 33858 Quick Access Latches
TM
4/6
5b
4031-095
4031-096
Glass Kit w/Screen - 36 in.
Glass Kit w/Screen - 42 in.
1
1
