6 30803 Rev X 08/04
CALIBER DIRECT VENT INSTALLATION INSTRUCTIONS
B. LOCATION AND CLEARANCES
WARNING!
Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
1. Appliance Locations and Space
Requirements

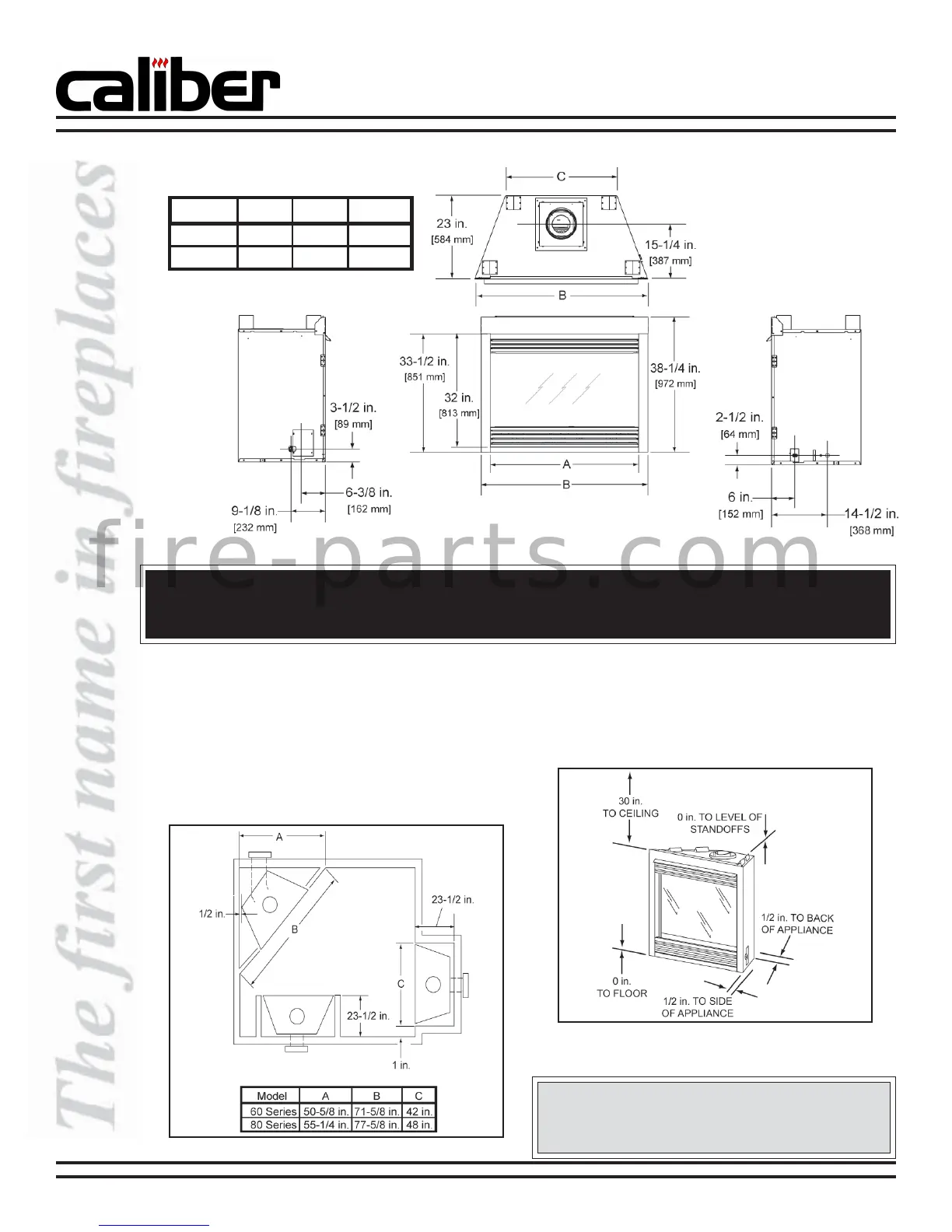

Figure 1 illustrates a variety of ways the appliance
may be located in a room. The CALIBER Series may
be installed directly on the floor or raised on a hearth.
These appliances are certified for installation in a
bedroom, bed/sitting room, or in mobile homes in the
U.S. and Canada.
2. Clearances
Figure 2 shows all clearances that must be
maintained around the appliance. See pages 12 &
18 for pipe clearances and pages 16, 17 & 20 for
termination cap clearances.
Figure 1 - Appliance Locations
CAUTION:
Do not expose the appliance to the elements (such
as rain, etc.).
Dimensions
Figure 2
Appliance Clearances to Combustible Materials
Model A B C
60 Series 36 in. 41 in. 24-1/2 in.
80 Series 42 in. 47 in. 30-1/2 in.
