08/04 30803 Rev X 23
CALIBER DIRECT VENT INSTALLATION INSTRUCTIONS
b. Standing Pilot Ignition
1) This standing pilot appliances does not require a 110VAC supply to operate. It is suggested that a 110V
junction box be installed for use with an optional fan and/or remote.
2) This appliance may be connected to a thermostat (not supplied). Use a thermostat that is compatible with
a millivolt gas valve. See Figure 50 for a wiring diagram.
WARNING!
The standing pilot ignition appliance does NOT require a 110VAC supply for operation. Connecting the appliance/
wall switch to a 110VAC supply will cause the appliance to malfunction and destroy the valve and thermopile.

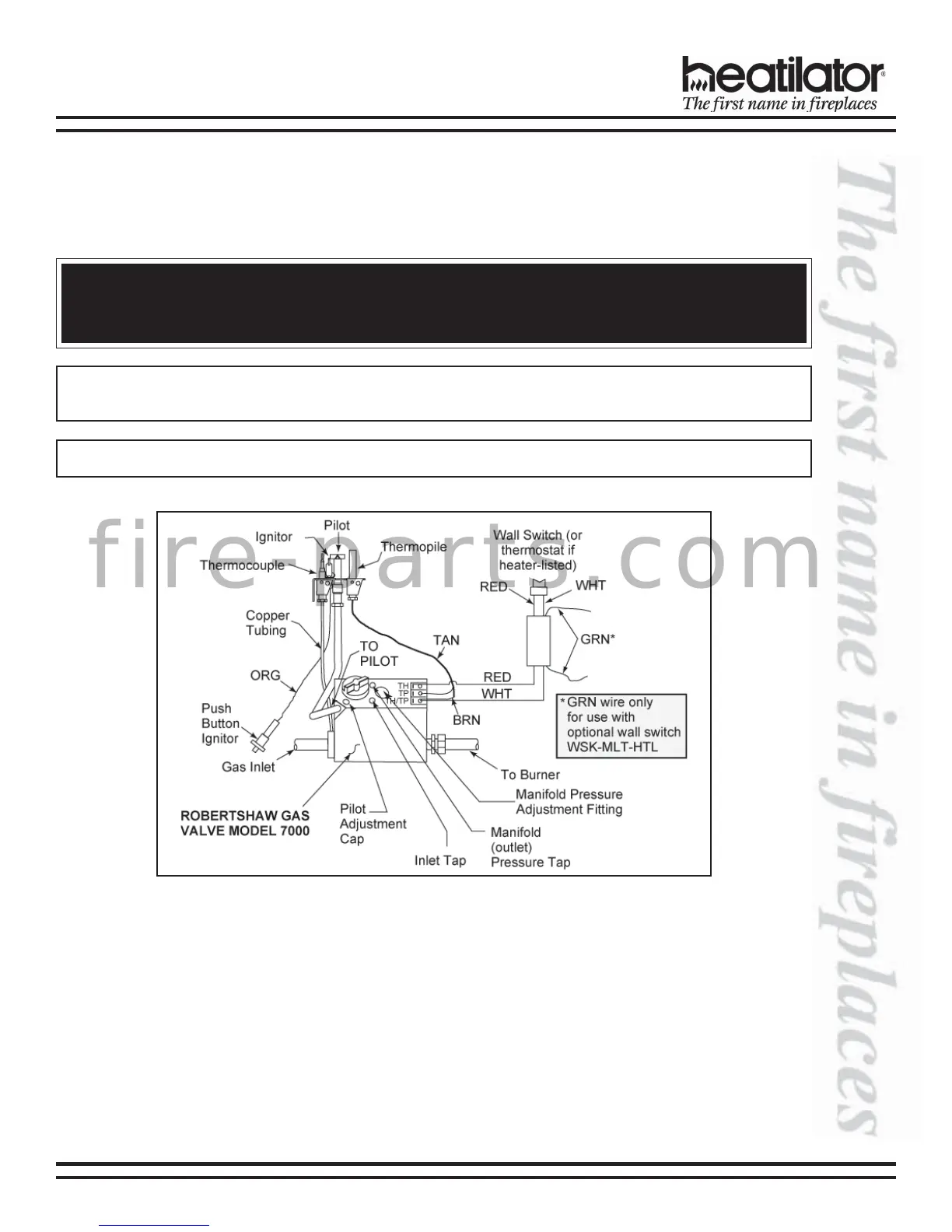

Figure 50 - Standing Pilot Ignition Wiring Diagram
Note: This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of
local codes, with National Electric Code ANSI/NFPA 70-latest edition or the Canadian Electric Code, CSA C22.1.
Note: Optional Accessories Requirements: Wiring for optional accessories should be done now to avoid reconstruction.
