73HEIDENHAIN TNC 426 B, TNC 430
5.2 Tool Data
Editing tool tables
The tool table that is active during execution of the part program is
designated as TOOL.T. You can edit TOOL.T in any of the machine
operating modes. Other tool tables that are used for archiving or
test runs are given different file names with the extension .T .
To open the tool table TOOL.T:
ú Select any machine operating mode.
ú
To select the tool table, press the TOOL TABLE soft
key.
ú
Set the EDIT soft key to ON.
To open any other tool table
ú
Select the Programming and Editing mode of operation.
ú
Calling the file manager
ú
To select the file type, press the SELECT TYPE soft
key.
ú
To show type .T files, press the SHOW soft key.
ú
Select a file or enter a new file name. Conclude your
entry with the ENT key or SELECT soft key.
When you have opened the tool table, you can edit the tool data by
moving the cursor to the desired position in the table with the

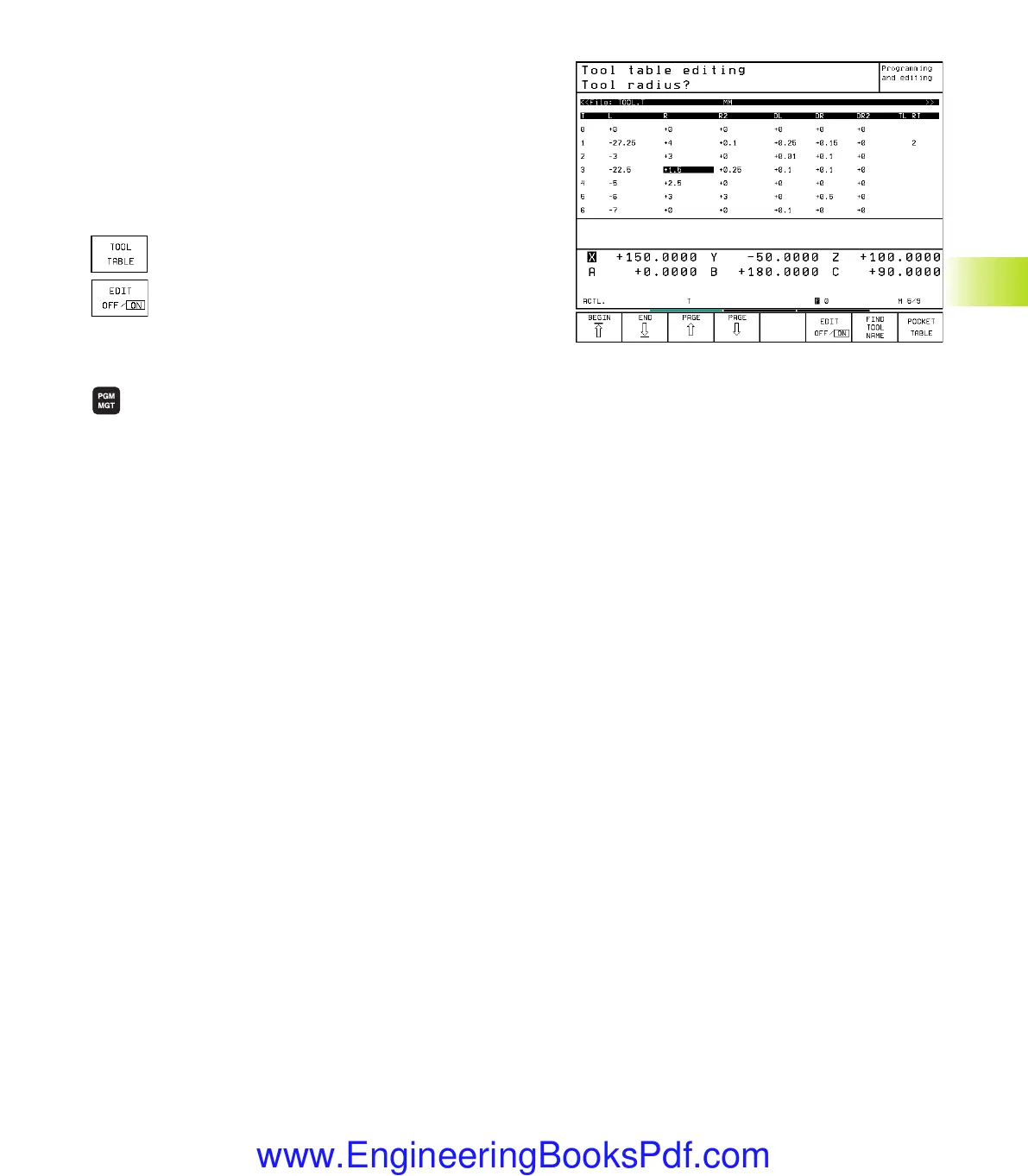

arrow keys or the soft keys (see figure at upper right). You can
overwrite the stored values, or enter new values at any position.
Refer to the table (on the next page) for additional editing functions.
If the TNC cannot show all positions in the tool table in one screen
page, the highlight bar at the top of the table will display the
symbol >> or << .
To leave the tool table:
ú
Call the file manager and select a file of a different type, e.g. a
part program.
