14 NETLink
®
Ethernet Products

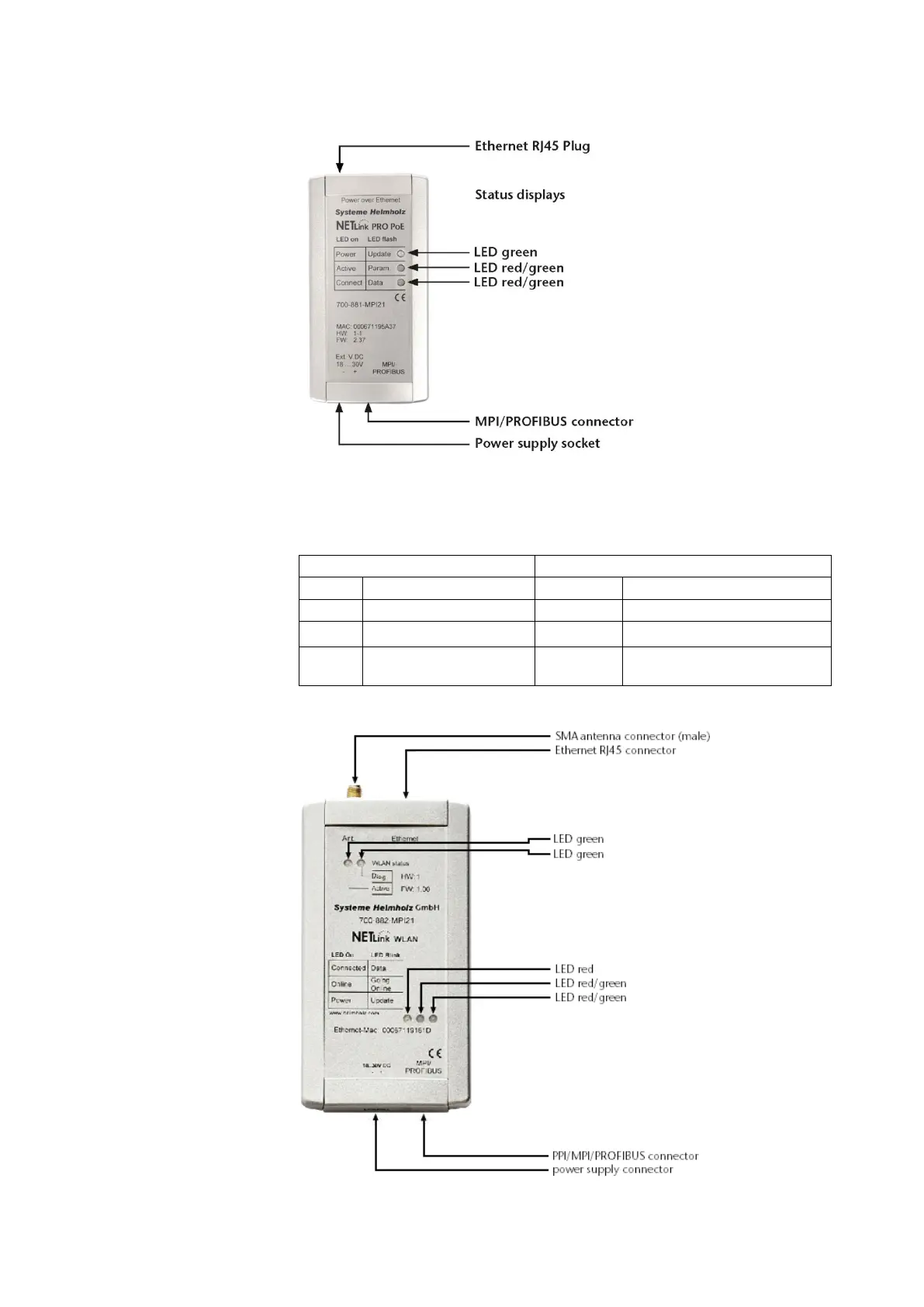

LEDs and connectors on the NETLink
®
PRO PoE:
The NETLink
®
WLAN has two extra LEDs on the top of the case,
which indicate the operating status of the wireless connection:
DIAG LED (yellow)
ACTIVE LED (green)
Status
Description
Status
Description
OFF
No Errors (WLAN)
OFF
No WLAN connection
ON
Wi-Fi module damaged
ON/BLINK
Connection established
BLINK
Read/write Configu-
ration
BLINK
Try to attempt a WLAN
connection
LEDs and connectors on the NETLink
®
WLAN:
