20 NETLink
®
Ethernet Products
4.3.2 Selecting the required interface parameterization

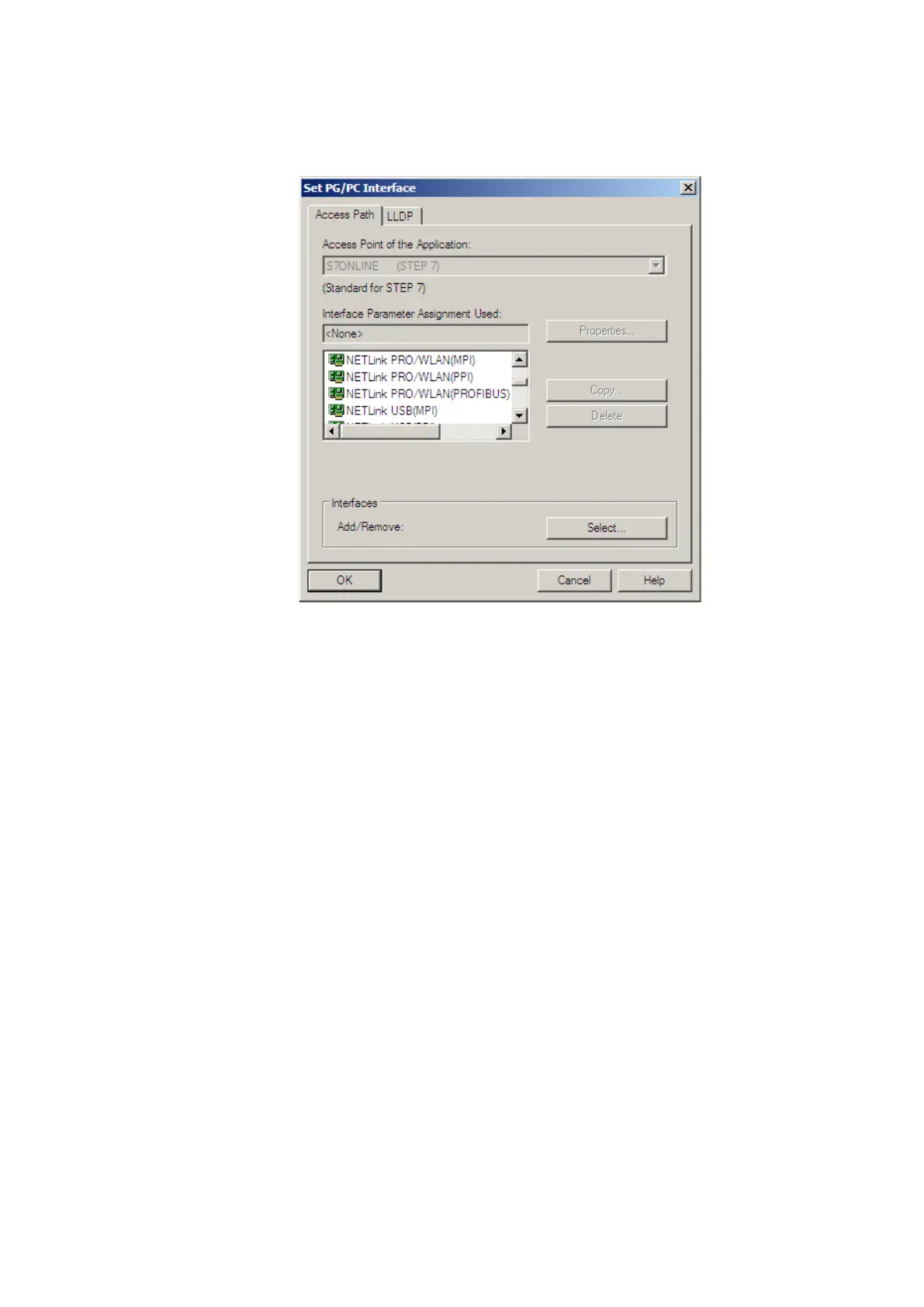

The selection list for the interface parameter sets now contains an
additional three items for NETLink
®
PRO Family.
All relevant settings of a NETLink-S7-NET driver can be made via
the "Properties" access field. With the button ‘Diagnostics...’ it is
possible to show the nodes connected to the bus and the parame-
ters the bus is working with. These fields are explained in Section
5.
