V103/113 Vector User Guide Chapter 2-Installation Page 8 of 35

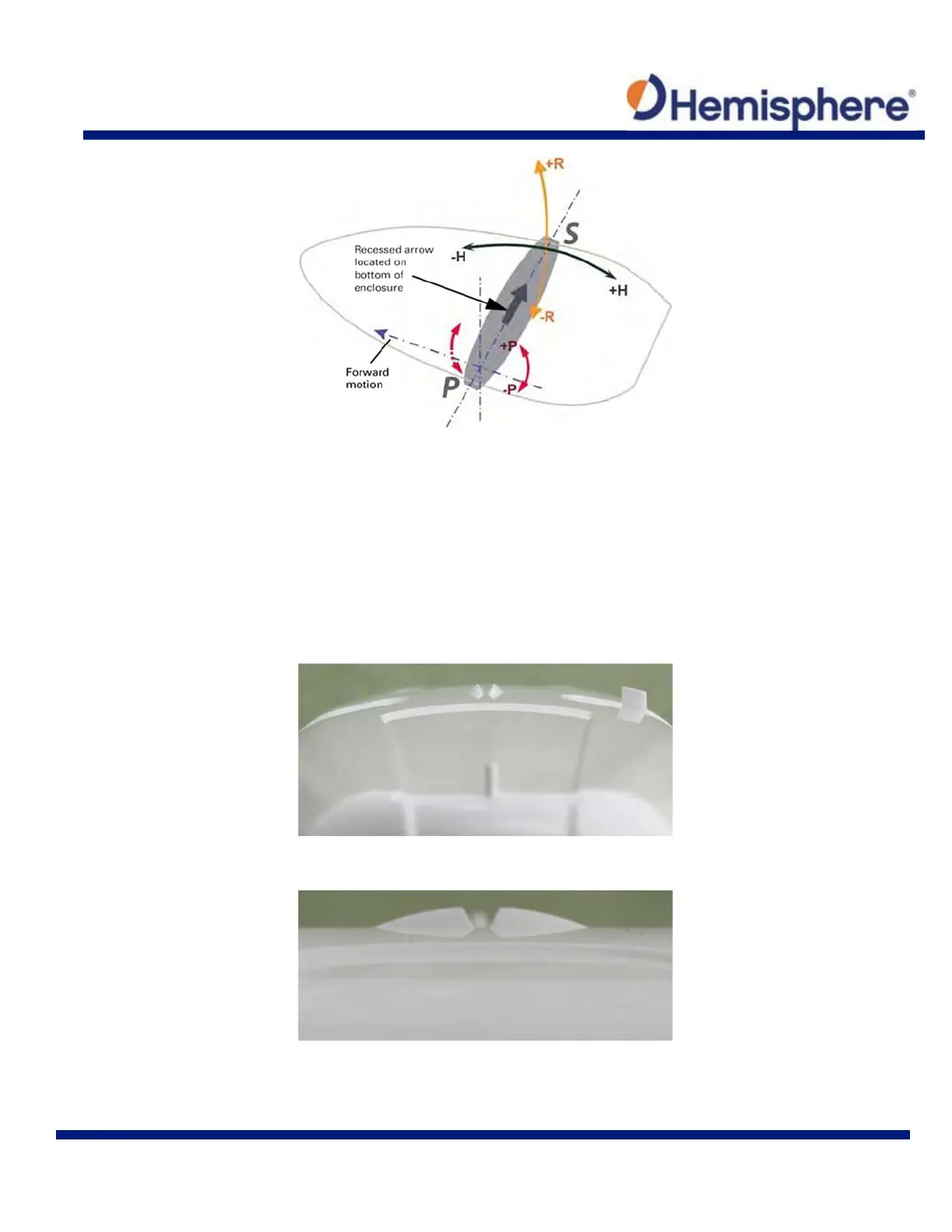

Figure 2-3: Alternative Orientation and Resulting Signs of HPR Values
Vector Compass Alignment
The top of the V103/113 enclosure incorporates sight design features to help you align the enclosure with
respect to an important feature on your vessel.
To use the sights, center the small post on the opposite side of the enclosure from you, within the channel
made in the medallion located in the center of the enclosure top as shown in Figure 2-4 and Figure 2-5.
Alignment accuracy when looking through the long site (Figure 2-4) is approximately +/- 1°, while alignment
through the short site (Figure 2-5) is approximately +/- 2.5°.
Figure 2-4: Long Site Alignment
Figure 2-5: Short Sight Alignment
