V103/113 Vector User Guide Chapter 2-Installation Page 15 of 35
Connecting the Serial-to-NMEA 2000 Adapter
For more information on the serial-to-NMEA 2000 adapter see “NMEA 2000 Port”.

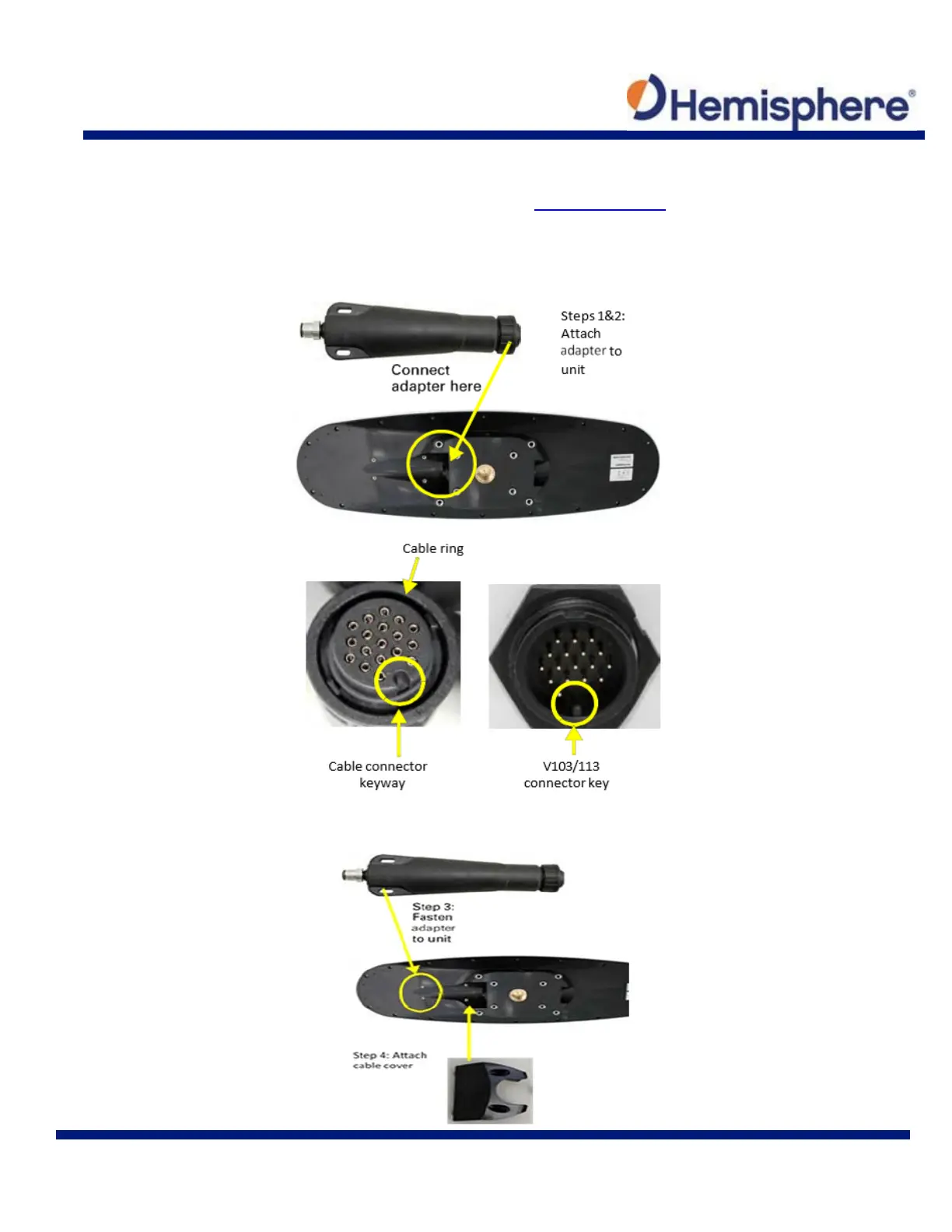

1. Align the adapter connector keyway with the V103/113 connector key.
2. Rotate the cable ring clockwise until it locks. The locking action is firm; you will feel a positive “click”
when it has locked.
3. Fasten the adapter to the body of the V103/113 using the provided screws and the two slots in the
adapter.
4. Attach the cable cover.
