Henkovac M2 - Overview of Main Machine Components

Users Manual Henkovac 04-serie V2019
Page 7 of 32

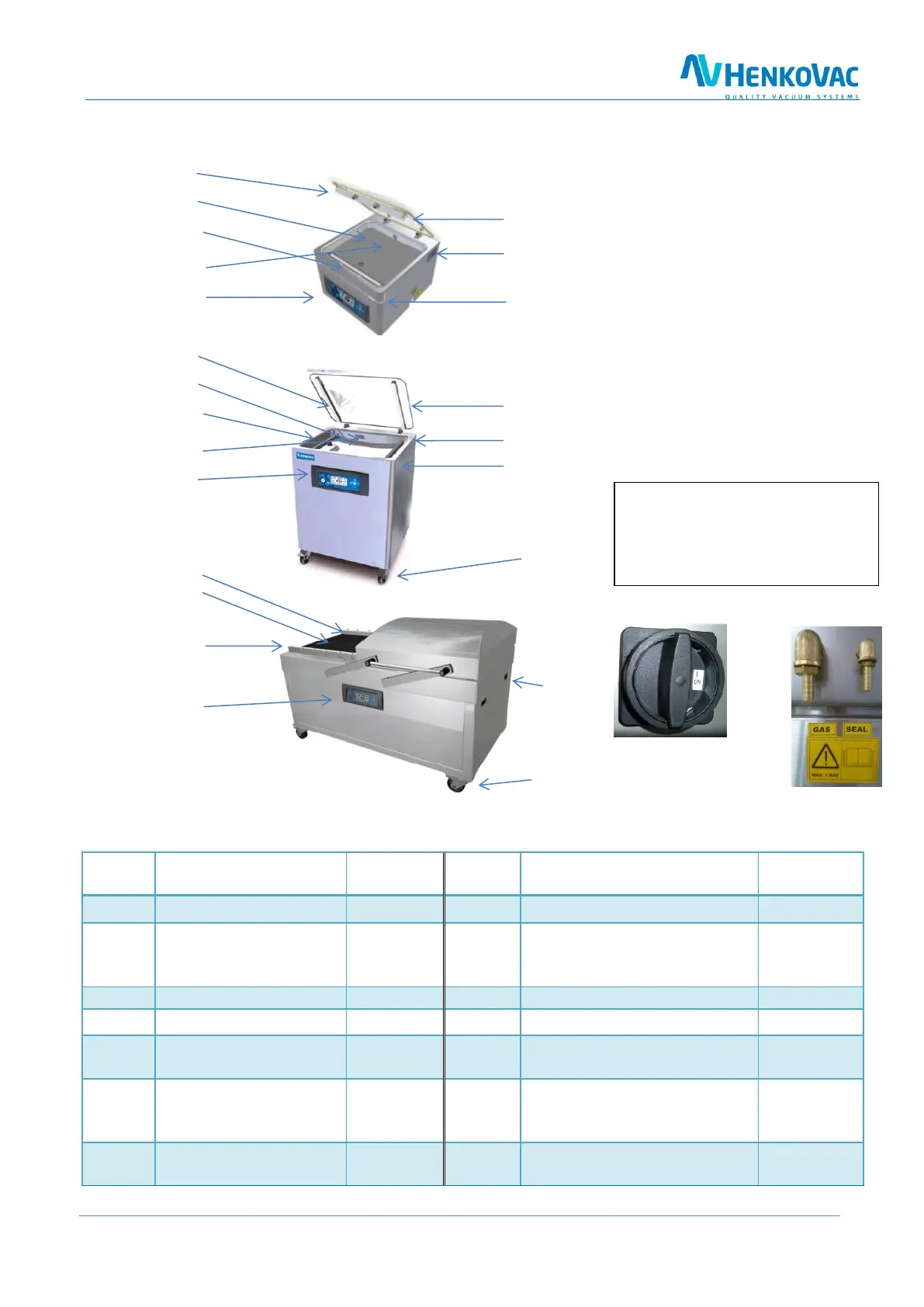

5.0 Overview of Main Machine Components
Position
Description
Page
Position
Description
Page
A
Control panel
8-18
H
Silicone sealing gasket
27
B
Seal beam (located in the
cover on the double-
chamber machines)
24-26
I
Identification plate
5, 28
C
Counter beam
27
J
Main switch
D
MAP gassing pipes
20
K
MAP gas connection
20
E
Fitting plates (optional)
L
Compressed air connection (ex-
tra sealing pressure option)
21
F
Exhaust (located in the
cover on double-chamber
and some mobile models)
M
Wheel with lock
G
Cover lock (not for dou-
ble-chamber machines)
D
C
L
H
G
B
I
F
E
F
A
A
H
A
G
B
E
I
I
C
C
M
On the back side of the machine:
J Main switch
K MAP gas connection
L Compressed air connection
E
K
M
J
