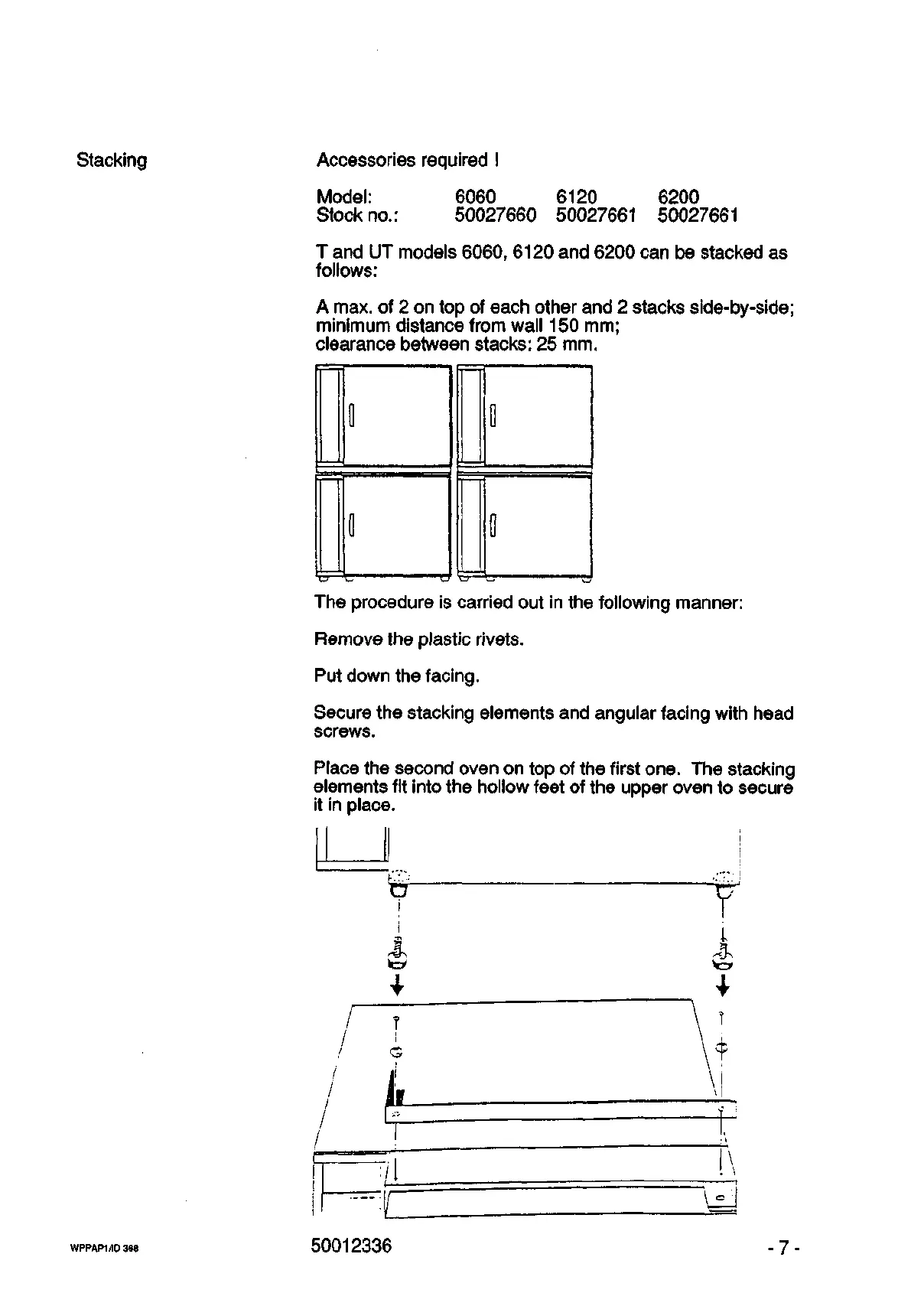

Stacking Accessories required !
Model:
6060 6120 6200
Stock no.: 50027660 50027661 50027661
T and UT models 6060, 6120 and 6200 can be stacked as
follows:
A max. of 2 on top of each other and 2 stacks side-by-side;
minimum distance from wall 150 mm;
clearance between stacks: 25 mm.
I
I
1
I
The procedure is carried out in the following manner:
Remove the plastic rivets.
Put down the facing.
Secure the stacking elements and angular facing with head
screws.
Place the second oven on top of the first one. The stacking
elements fit into the hollow feet of the upper oven to secure
it in place.
WPPAP1/ID 368
50012336
-7-
