Heraeus UT6200 - Eurotherm Controller RS 232 Interface; RS 232 D-Sub Socket Pin Assignment

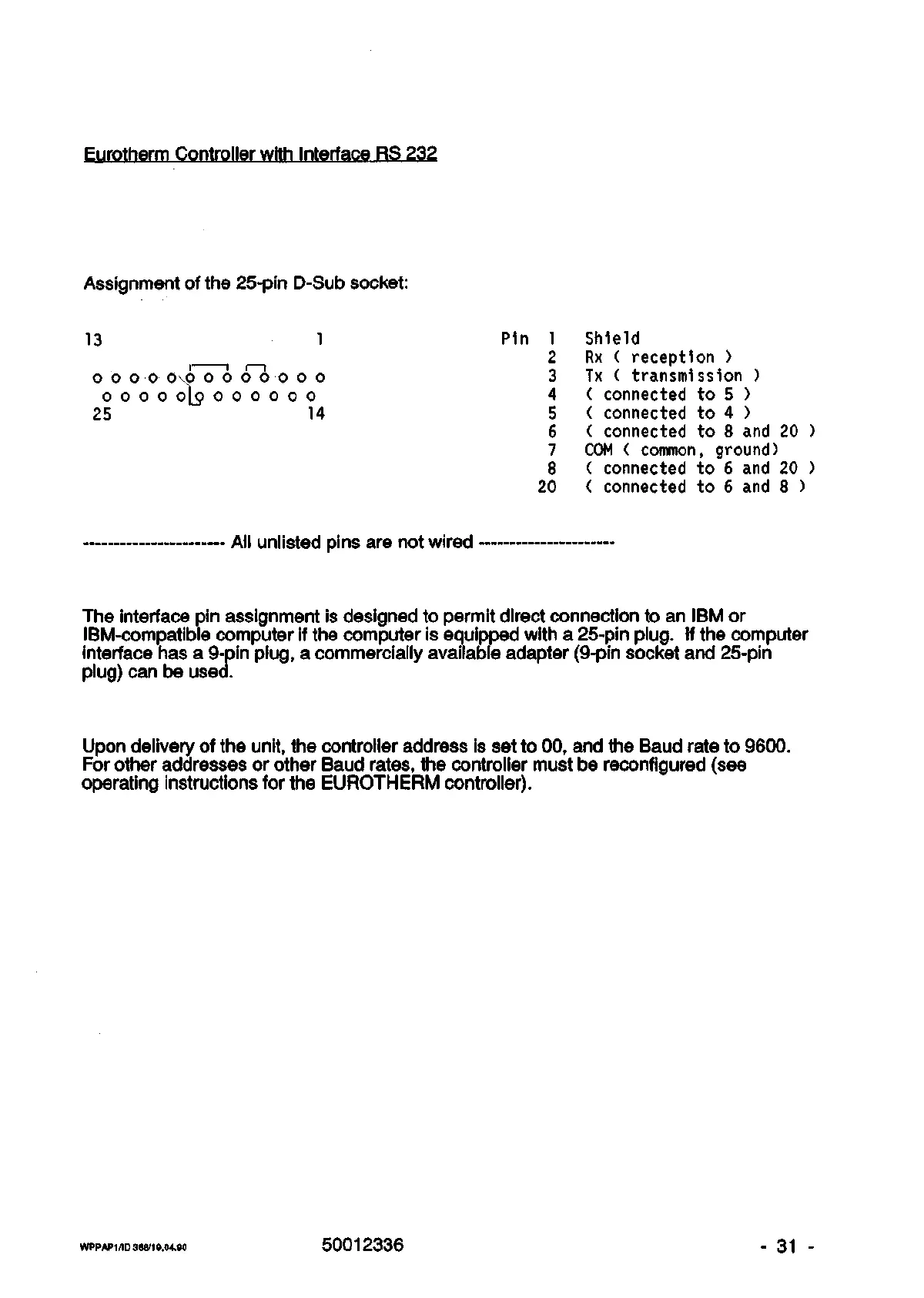

Eurotherm Controller with Interface RS 232
Assignment of the 25-pin D-Sub socket:
13 1
O 6 OO OvO 0 0 0 0 0 0 0
0 0 0 0 OJO 0 0 0 0 0 0
25 14
— All unlisted pins are not wired
P1n 1
2
3
4
5
6
7
8
20
Shield
Rx < reception
Tx ( transmi
( connected
( connected
( connected
COM ( common
( connected
< connected
)
ssior
to
to
to
,
to
to
5
4
8
l )
)
)
and
ground)
6
6
and
and
20 )
20 )
8 )
The interface pin assignment is designed to permit direct connection to an IBM or
IBM-compatible computer if the computer is equipped with a 25-pin plug. If the computer
interface has a 9-pin plug, a commercially available adapter (9-pin socket and 25-pin
plug) can be used.
Upon delivery of the unit, the controller address is set to 00, and the Baud rate to 9600.
For other addresses or other Baud rates, the controller must be reconfigured (see
operating instructions for the EUROTHERM controller).
