size that would prohibit the engraving of fine detail. This can be related to trying to write small
text with a wide, felt tip marker. There are pros and cons to the different lenses that are
available for different applications. Please refer to the Appendices section on available lenses
and their operating characteristics.
“Wattage” signifies the amount of heat energy that the laser light is producing over a period of
time. Laser energy is measured with a laser power meter. Do not confuse the electrical
wattage rating of a light bulb or a hair dryer with the wattage rating of the laser system. They
are two different types of measurements.

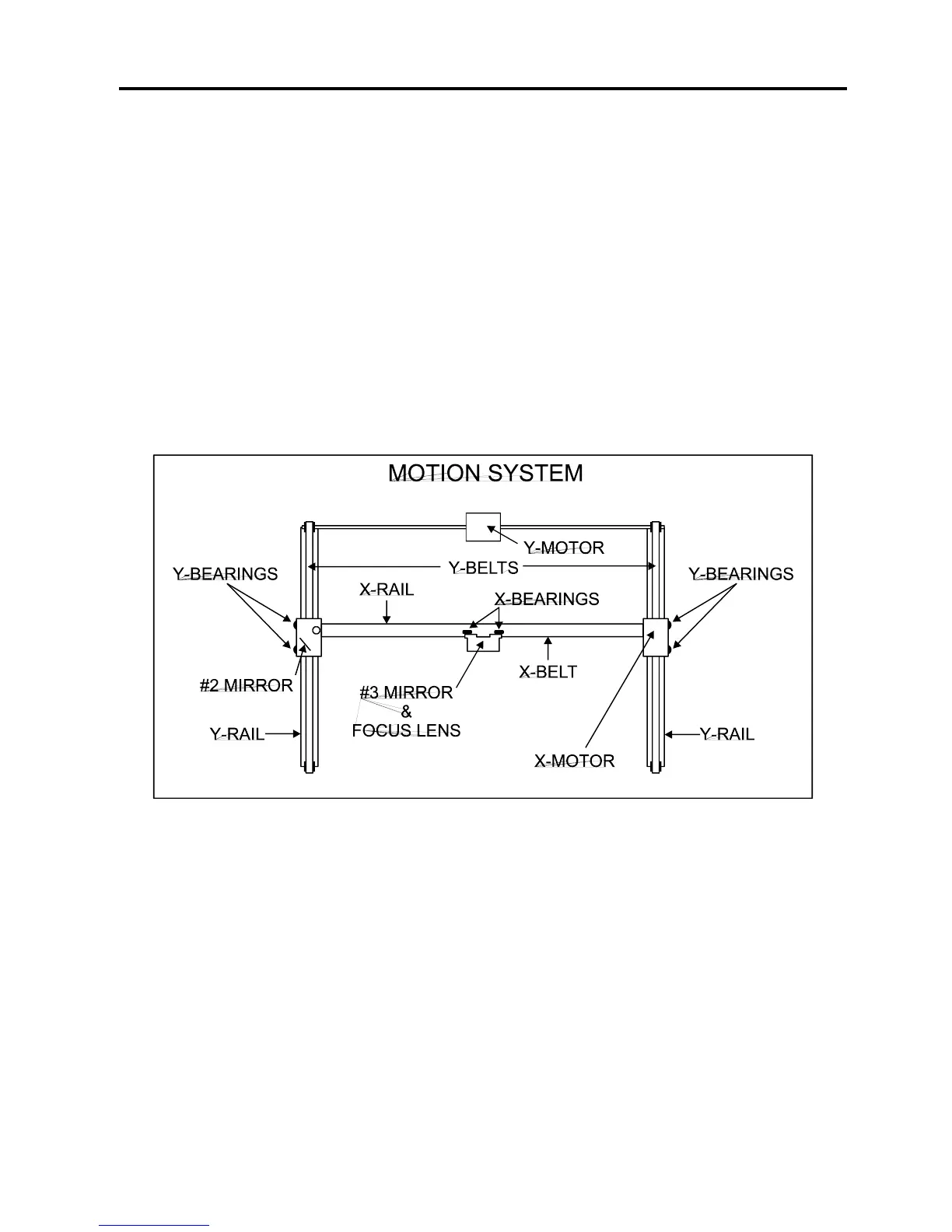

Motion System
The motion system consists of the mechanically moving parts of the laser system. It is made up
of rails, motors, bearings, belts, mirrors, a lens, and other parts. There are two directions of
motion, left and right is called the “X” direction and front to back is called the “Y” direction.
The motherboard controls the movement of the motors which moves the mirrors and focus lens
across the engraving area and over the material. At the same time, it is synchronizing the laser
pulses with the position of the focus lens. It is this precise positioning and timing of the laser
pulses that produces the highest quality and fastest speed of engraving.
In summary, the five (5) components work together to take the graphic image that is
downloaded to the laser system from your computer and burn it into the material located on the
engraving table inside of the laser system.
