HERO DESTINI 125 PROGRAMMED FI - MAJOR COMPONENTS; BRAKES (INTEGRATED BRAKING)

1
2
18

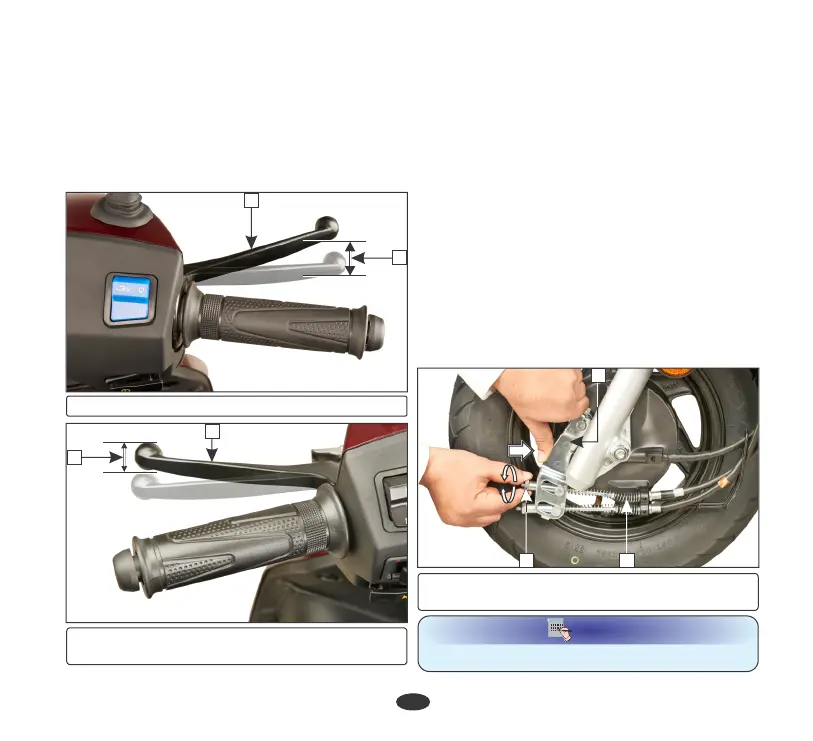

(2) Integrated brake lever
(3) Free play: 10-20 mm
2
3
(1) Front brake lever (3) Free play: 10-20 mm
1
3
• Push the integrated brake arm (4) by hand
in the direction as shown.
Adjustment
• Check the free play of right lever.
FREE PLAY: 10-20 mm
• If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
Right hand front brake cable (A) on “1”
side
• Turn the first adjuster nut (5) till you cannot
turn it by hand.
BRAKES (INTEGRATED BRAKING)
Brakes are items of personal safety and should
always be maintained with proper adjustments.
MAJOR COMPONENTS
When one applies the left lever, front & rear
brakes activate jointly.
(Information you need to operate this
vehicle)
Measured at the tip of brake levers, free play
should be maintained at 10-20 mm.
The distance, the front brake lever (1) and
integrated brake lever (2) moves before each
brake starts to engage is called free play (3).
(i)
(ii)
(4) Integrated brake arm (5) First adjuster nut
(i) Decrease free play (ii) Increase free play
NOTE
“1” & “2” is marked on integrated brake arm.
5
4
A
