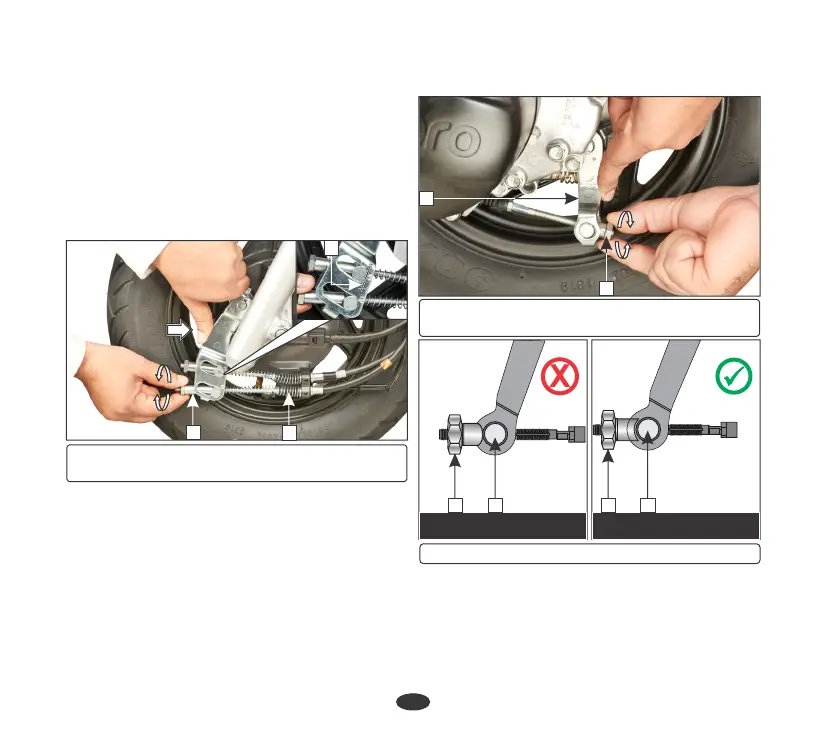

Make free play adjustment by turning the
adjuster nut (1) in the brake arm (2).
REAR BRAKE
FREE PLAY: 10-20 mm
•
Check the free play of integrated brake
lever.
•
If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
(6) S econd adjuster nut (7) Joint
(i) Decrease free play (ii) Increase free play
(i)
(ii)
B
7
7
6
• After ensuring the gap, turn the second
adjuster nut counterclockwise by half
rotation.
Left hand front brake cable (B) on “2”
side
Adjustment
• Push the integrated brake arm (4) by hand
in the direction as shown.
• Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
Make sure the cut-out on the adjusting nut
(3) is seated on the brake joint pin (4) after
making final free play adjustment.
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
(3) Adjusting nut (4) Brake joint pin
