(3) Bolts
(4) Screws
•

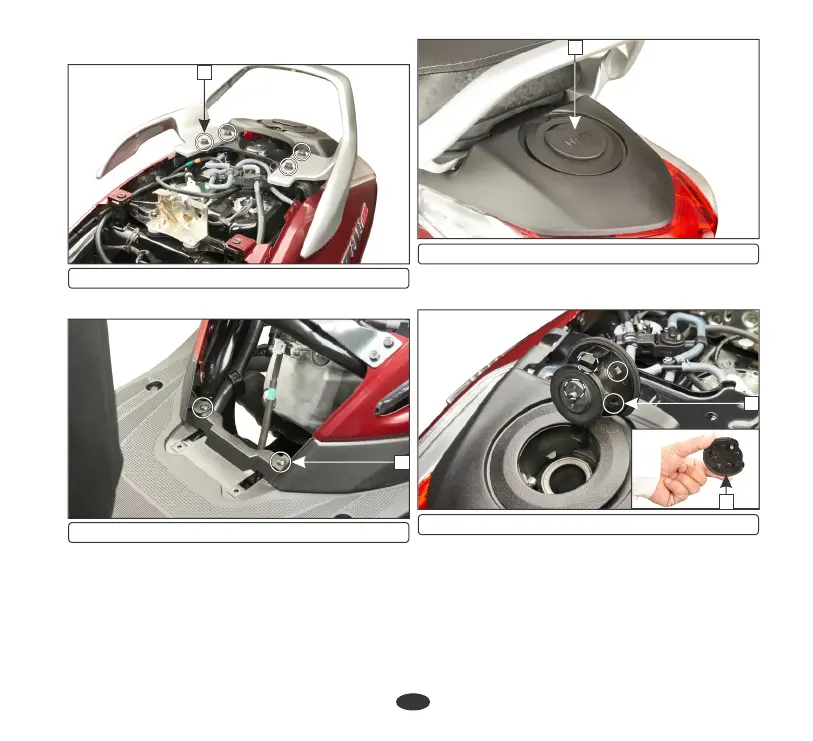

Remove the screws (4).
•
Remove the rear grip bolts (3).
•
Open the fuel filler cap (5) by turning the
ignition key to “FUEL OPEN” or in
clockwise position (page 25).
( ) Tabs 6 (7) Fuel tank lid cover
7
•
Close the fuel tank lid (8) by pressing it.
•
Remove the fuel tank cap cover (9) by
rotating it in anticlockwise direction.
•
Remove the screws (10) from the fuel tank
cover (11) and remove the cover.
(5) Fuel filler cap
5
•
By pressing the tabs (6), remove the fuel
tank lid cover (7).
3
4
6
