69

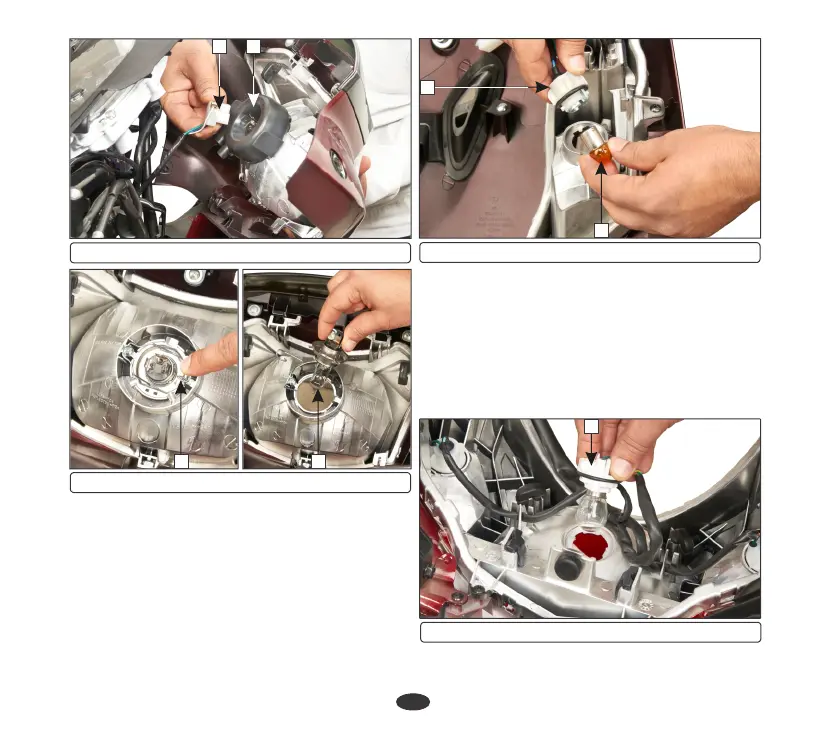

(3) Clip (4) Headlamp bulb
(1) Headlamp connector (2) Dust cover
•
Install a new bulb in the reverse order of
removal.
•
Install the headlamp assembly (page 41).
(b) Front turn signal bulb
•
Remove the front upper cover (page 39).
•
Remove the bulb holder (1) with the bulb.
•
Remove the bulb (2) by turning it to
anticlockwise direction.
(1) Bulb holder (2) Front turn signal bulb
•
Remove the body covers with tail/stop lamp
assembly (page 36).
•
Remove the holder (1) by turning it
anticlockwise.
•
Install a new bulb in the reverse order of
removal.
•
Install the front upper cover (page 40).
(c) Tail/Stop lamp bulb
(1) Holder
•
Remove the bulb (2) from bulb holder by
turning anticlockwise.
1 2
3 4
1
2
1
