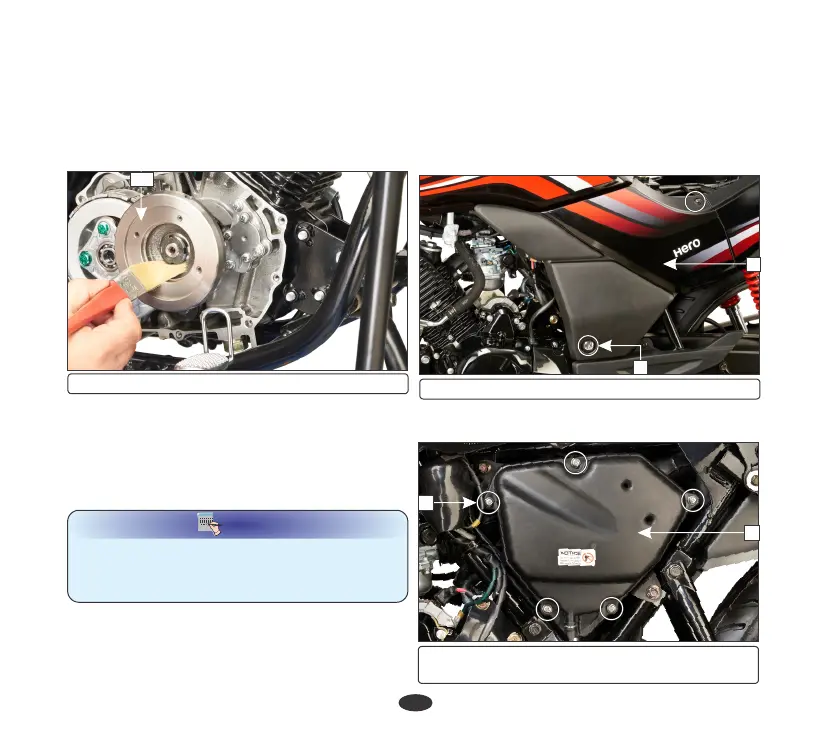

Remove centrifugal filter cover (9) & clean
the centrifugal filter (10) with non
flammable or high flash point solvent
(kerosene).
•
Reinstall the oil filter screen with the sharp
edged side facing inwards.
•
Reinstall the dowel pins and gasket.
•
Reinstall the centrifugal filter cover, right
crankcase cover, kick start pedal & clutch
cable.
•
Fill the crankcase with clean engine oil as
per specification.
•
Clean filters as specified in the maintenance
schedule.
•
Ensure to replace gasket with new one once
removed.
NOTE
•
Remove the seat (page 20).
•
Remove the left side cover (1) by removing
side cover screw (2).
(page 27). Early replacement may be
required when riding in unusually wet or dusty
area.
•
Remove the air cleaner cover screws (3)
and the cover (4).
(3) Air cleaner cover screws
(4) Air cleaner cover
(1) Side cover (2) Side cover screw
3
4
2
1
10
(10) Centrifugal filter
AIR CLEANER
Air cleaner element inspection
The air cleaner element is viscous type, it
should be replaced at regular intervals
