49

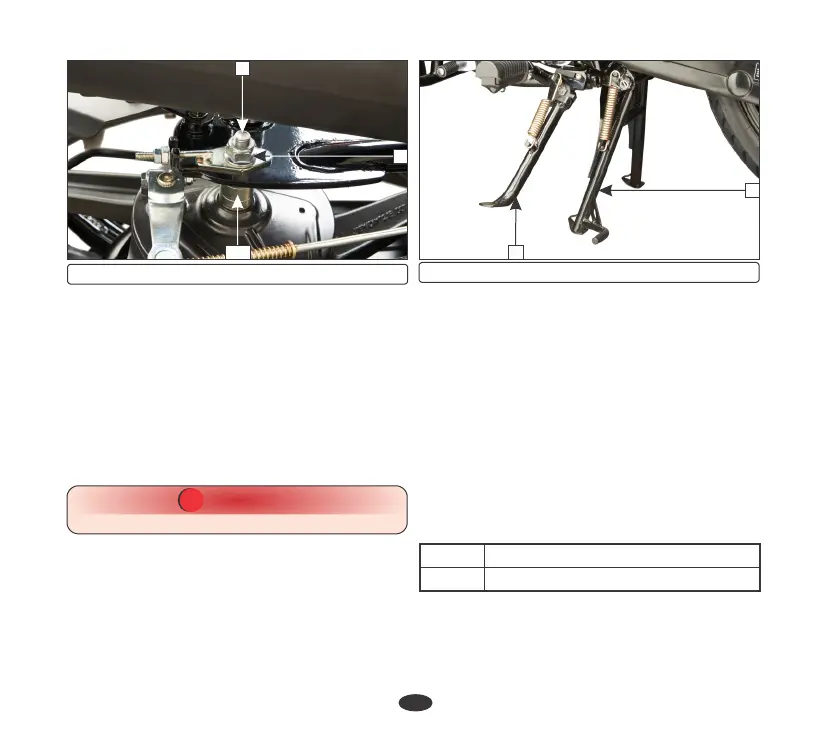

(8) Axle nut (9) Axle (10) Collar
CAUTION
!!
Always replace used split pins with new ones.
(1) Main stand (2) Side stand
1
2
Axle nut torque: 5.4 kgf-m
Installation
•
Reverse the removal procedure
Brake stopper arm nut torque:
1.8-2.5 kgf-m
•
After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
•
Adjust the rear brake free play (page 44)
and drive chain slackness (page 39).
10
9
8
•
Park the vehicle on the level surface.
•
Make sure the side/main stand is not bent.
MAIN/SIDE STAND LUBRICATION
•
Check the main/side stand return spring for
damage or loss of tension.
•
Check the main stand (1)/side stand (2)
for freedom of movement.
•
Lubricate the side stand pivot if necessary.
Front
Rear
80/100-18, 47P (Tubeless tyre)
90/90-18, 51P (Tubeless tyre)
The tyres fitted on your vehicle are of
TUBELESS type.
To safely operate your vehicle, your tyres must
be of the proper type and size, in good
condition with adequate tread, and correctly
inflated for the load you are carrying.
TUBELESS TYRES
The following pages give more detailed
information on how and when to check the air
pressure, how to inspect your tyres for
damage, and what to do when your tyres need
to be repaired or replaced.
