HERO Passion Xpro - Suspension; Wheel

46
•
In direction B: Softer

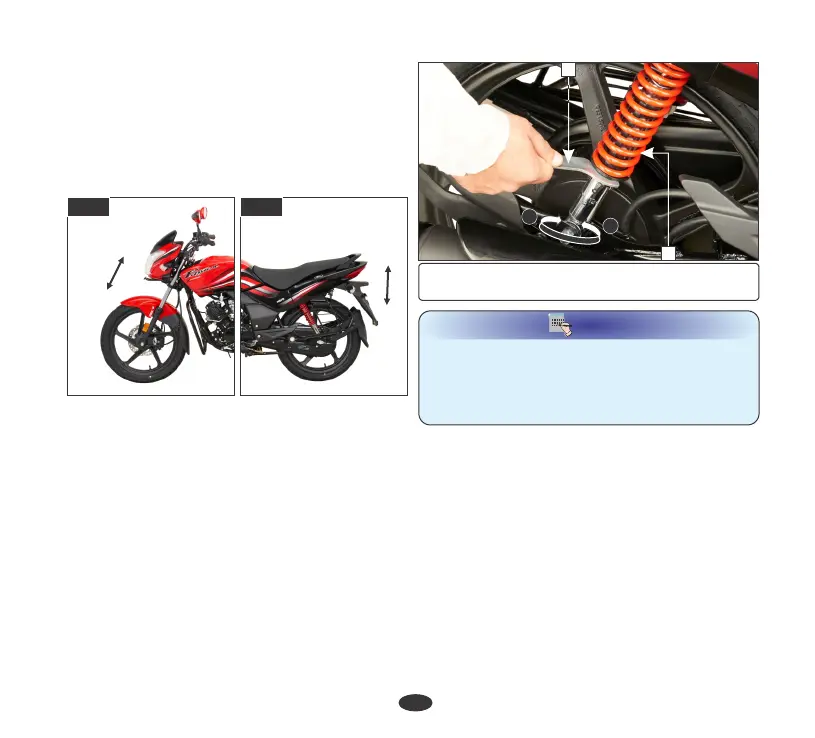

Rear shock absorber adjustment
Rear shock absorber adjustment can be made
according to the load/road conditions.
•
Check the rear shock absorber by pushing
hard downwards on rear grip while the
vehicle is not parked on stand. The
suspension action should be smooth and
there should be no oil leakage.
•
In direction A: Stiffer
(1) Pin spanner (2) Rear shock absorber
(A) Stiffer (B) Softer
NOTE
Always adjust both the rear shock absorbers to
the same position. To adjust the rear shock
absorber (2), use the rear shock absorber
adjustment tool (Pin spanner) (1) available in
the tool kit.
Front and rear suspension inspection
•
Check the front forks by locking the front
brake and pumping the front fork up and
down vigorously. The suspension action
should be smooth and there should be no
oil leakage.
SUSPENSION
Front Rear
B
A
1
2
WHEEL
Removal
•
Remove the front axle nut (3).
(a) Front wheel (Disc type)
•
Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
•
Remove the speedometer cable (1) by
pressing the tab (2) & pulling cable out
from the speedometer gearbox.
•
Remove the axle (4) and the wheel.
•
Remove the side collar (5) from the wheel.
