47
CAUTION
!!
Do not operate front brake lever when the
wheel is removed.

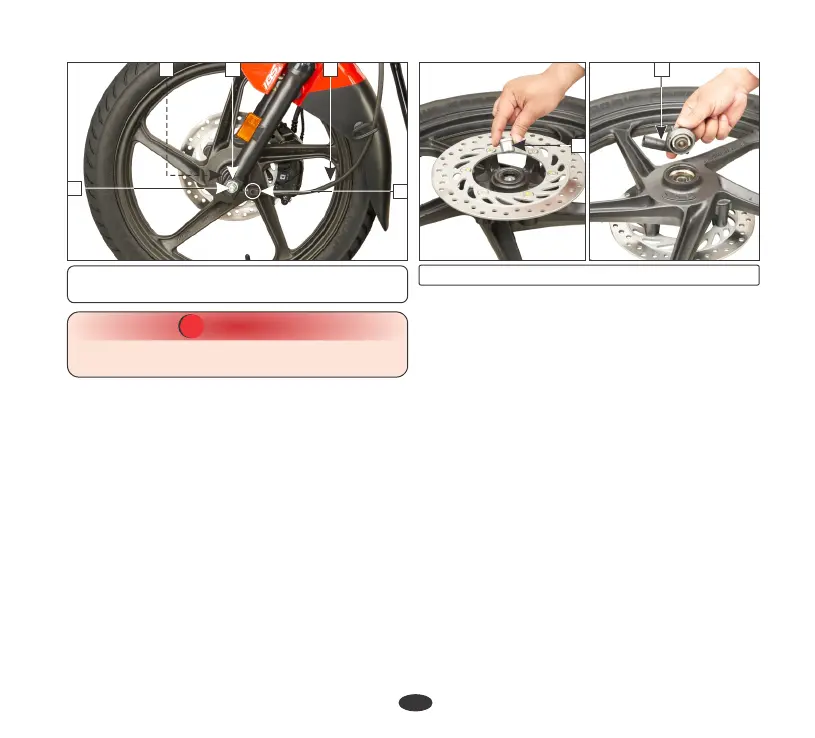

(1) Speedometer cable (2) Tab (3) Axle nut
(4) Axle (5) Side collar
Installation
•
Install the side collar (1) to the right side of
the wheel hub and then install the
speedometer drive gear (2) on the left side
of the wheel hub.
•
Position the front wheel between the fork
legs by aligning the slot on the speedometer
gear box with the lug on the fork leg and the
disc between the brake pads to avoid
damage to the pads. Insert the axle from the
right side through the fork legs and wheel
hub.
•
Tighten the front axle nut to the specified
torque.
TORQUE : 5.0-6.0 kgf-m
2
135
4
(b) Front wheel (Drum type)
•
Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
•
Disconnect the brake cable (3) and
integrated brake cable (4) from integrated
brake arm (5) and brake panel (6) by
removing the front brake adjusting nut (7)
and integrated brake adjusting nut (8).
•
Remove the axle (10) and side collar (11).
•
After installing the wheel apply the brake
several times and then check if the wheel
rotates freely. Recheck the wheel if the
brake drags or if the wheel does not rotate
freely.
Removal
•
Remove the speedometer cable (1) by
pressing the tab (2) & pulling cable out
fr om th e spee do me te r g ea rbox.
•
Remove the axle nut (9).
•
Remove the wheel.
(1) Side collar (2) Speedometer drive gear
1
2
