HERO PLEASURE+ - Major Components - Brakes; Integrated Braking System Operation

MAJOR COMPONENTS
Brakes are items of personal safety and should
always be maintained with proper adjustments.
BRAKES (INTEGRATED BRAKING)
(Information you need to operate this
vehicle)

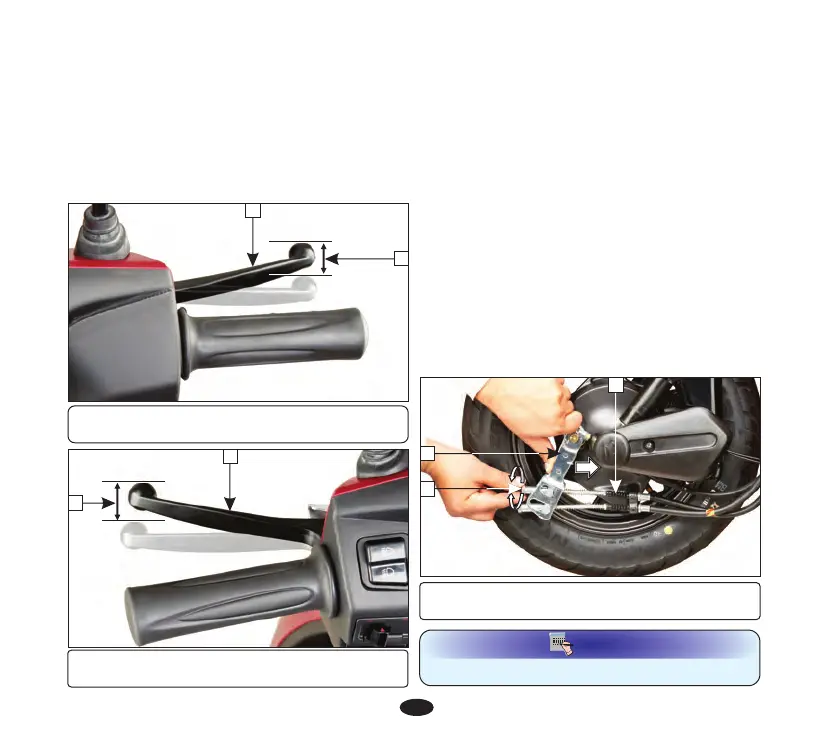

When one applies the left brake lever, front &
rear brakes activate jointly.
(i)
(ii)
A
4
(4) Integrated brake arm (5) First adjuster nut
( ) Decrease free play (ii) Increase free playi
15
(1) Front brake lever
(3) Free play : 10-20 mm
1
3
NOTE
“F” & “I” is marked on integrated brake arm.
(2) Integrated brake lever
(3) Free play:10-20 mm
2
3
•
Turn the first adjuster nut (5) till you cannot
turn it by hand.
FREE PLAY: 10-20 mm
•
Push the integrated brake arm (4) by hand
in the direction as shown.
The distance, the front brake lever (1) and
integrated brake lever (2) moves before each
brake starts to engage is called free play (3).
Measured at the tip of brake levers, free play
should be maintained at 10-20 mm.
Right hand front brake cable (A) on “F”
side
Adjustment
•
Check the free play of front brake lever.
•
If the free play is more than 20 mm further
turn the adjuster nut to obtain desired free
play.
5
F
I
