Hesai PandarQT User Manual

32

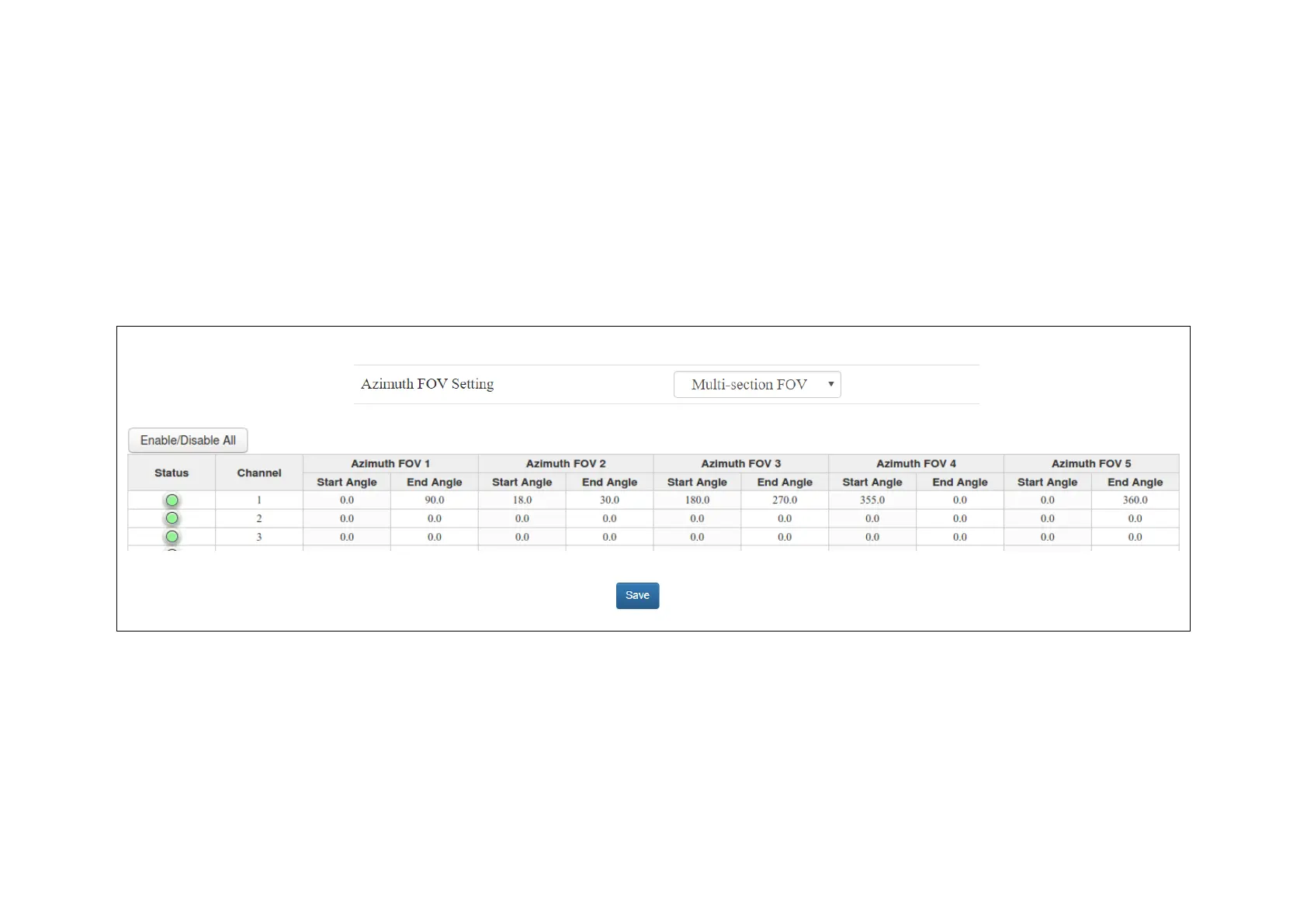

4.3.3 Multi-section FOV
Users can configure up to five continuous angle ranges (i.e. sections) for each channel.
Outside the specified range for each channel, there will be no laser firing or data generated in that channel.
The Status button for each channel is gray by default, indicating that the angle range is [0°，360°].
To activate the angle range configuration for each channel, click the corresponding button to make it green.
Click the “Enable/Disable All” button to activate/deactivate the angle range configuration for all channels.
4.3.4 Note
▪ Click “Save” to apply your settings.
▪ The angles in degrees are accurate to the first decimal place.
▪ If the Start Angle is larger than the End Angle, then the actual azimuth FOV is the union of [Start Angle, 360°] and [0°, End Angle].
For instance, when the angle range is set to be [270°, 90°], the actual azimuth FOV is [270°, 360°]∪[0°, 90°].
