AB1401en_SARev.: 04 / 11.2023

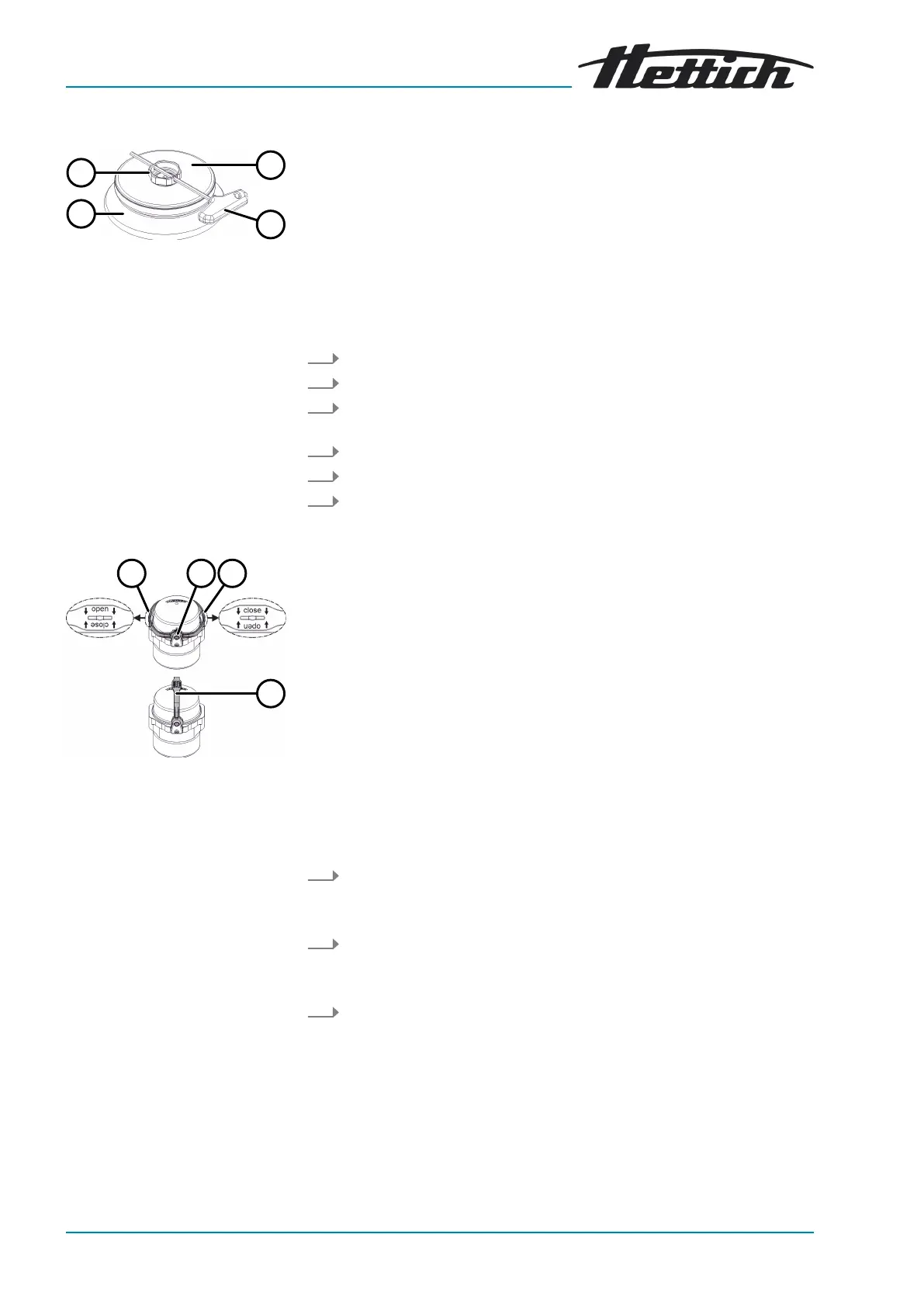

Fig. 19: Biosafety system
1 Rotary handle
2 Rotor
3 Lid
4 Key
Closing
Opening
Fig. 20: Biosafety system
1 Bracket position "open"
2 Bracket opening operations
3 Bracket position "close"
4 Bracket carrying position
Closing
6.6.2 Lid with screw cap and hole
1. Place the lid (
3
) centrally on the rotor (
2
).
2. Insert the supplied key (
4
) into the hole in the rotary handle (
1
).
3. Turn the lid (
3
) at the key (
4
) clockwise until it is tightly closed.
1. Insert the supplied key (
4
) into the hole in the rotary handle (
1
).
2. Turn the lid (
3
) at the key (
4
) anticlockwise until it is open.
3. Remove the lid (
3
) from the rotor (
2
).
6.6.3
Lid with bracket and spring-type lock
1.
Swivel the bracket to the "open" position (
1
).
The arrows of the labelling must point downwards so that the word
"open" is legible.
2.
Place the lid centrally on the bucket.
The two pins of the lid must be in the two openings of the bracket
(
2
).
3.
Swivel the bracket to the "close" position (
3
).
The arrows of the labelling must point downwards so that the word
"close" is legible.
The bracket must rest on the bucket so that the bucket can swing out
during the centrifugation run.
