HF2211S_EW1X_PW1X Operation Guide

http://www.hi-flying.com/ - 3 -

1. INTRODUCTION

Elfin-EW1X, HF2211S, Protoss-PW1X products software function is the same (integrate our HF-

LPT230 module, talk to our sales if need modules only), but with different hardware interface and size.

Here has a brief description of these products’ hardware, and take EW for example of software

introduction.

All tools can be download at following link:

http://www.hi-flying.com/index.php?route=download/category&path=1_4

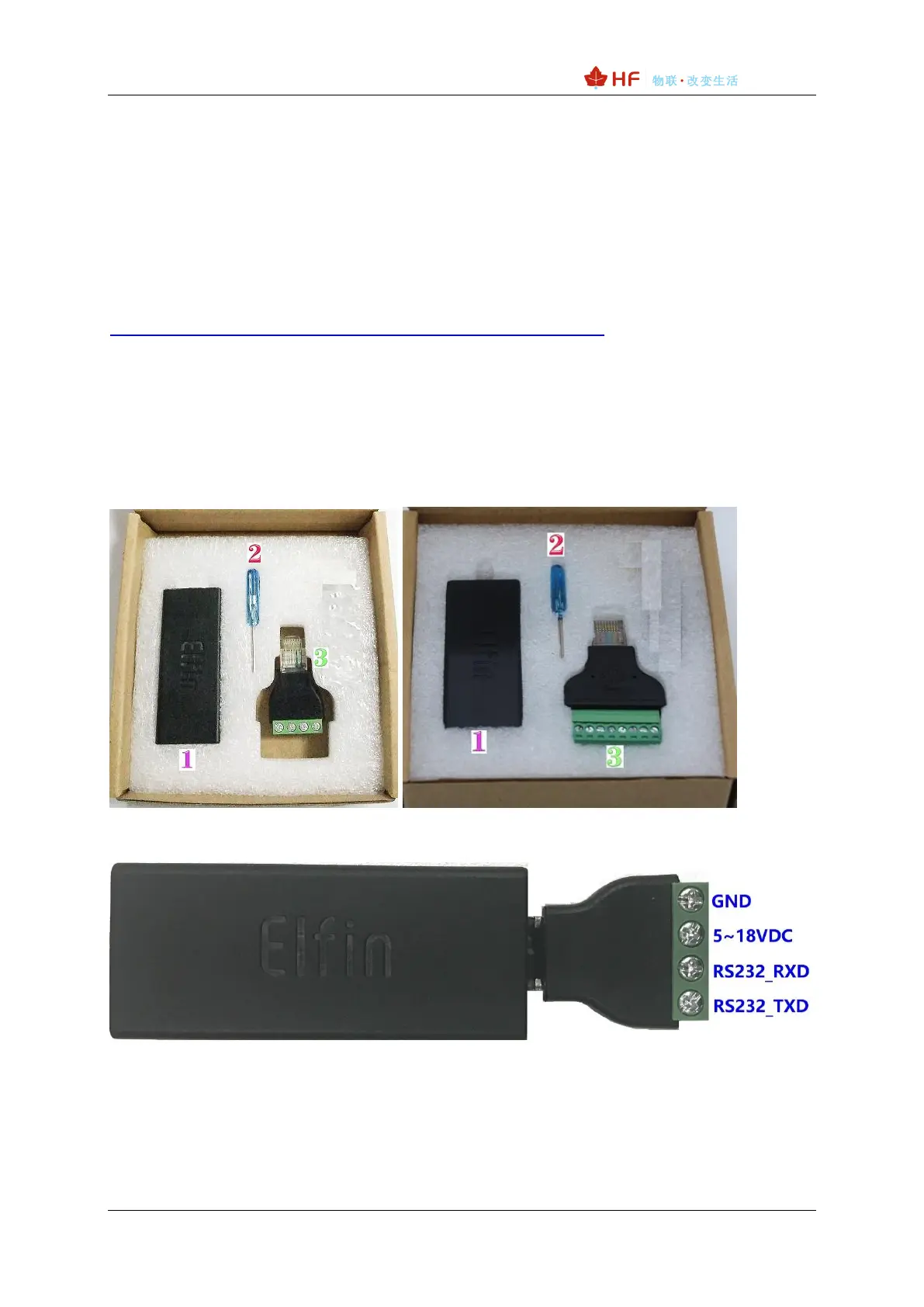

1.1. Elfin-EW1X EVK

Elfin-EW10/Elfin-EW10-0 is RS232 interface and Elfin-EW11/Elfin-EW11-0 is RS485 interface. The

EVK include the following attachment.

⚫ Elfin-E1WX products

⚫ Screw driver

⚫ RJ45 connecter(4PIN or 8PIN)

1.2. Elfin-EW10 4PIN Connector

5 6 7 8

A B C D
