DC2000 – Installation Manual 13
HHO Plus, Alternative Energies, Lta – Travessa das Serras 33, Vieira de Leiria, Portugal – Tel. 00351244697116 – Email: info@hhhoplusgas.com
Installation of the electrical components
General configuration

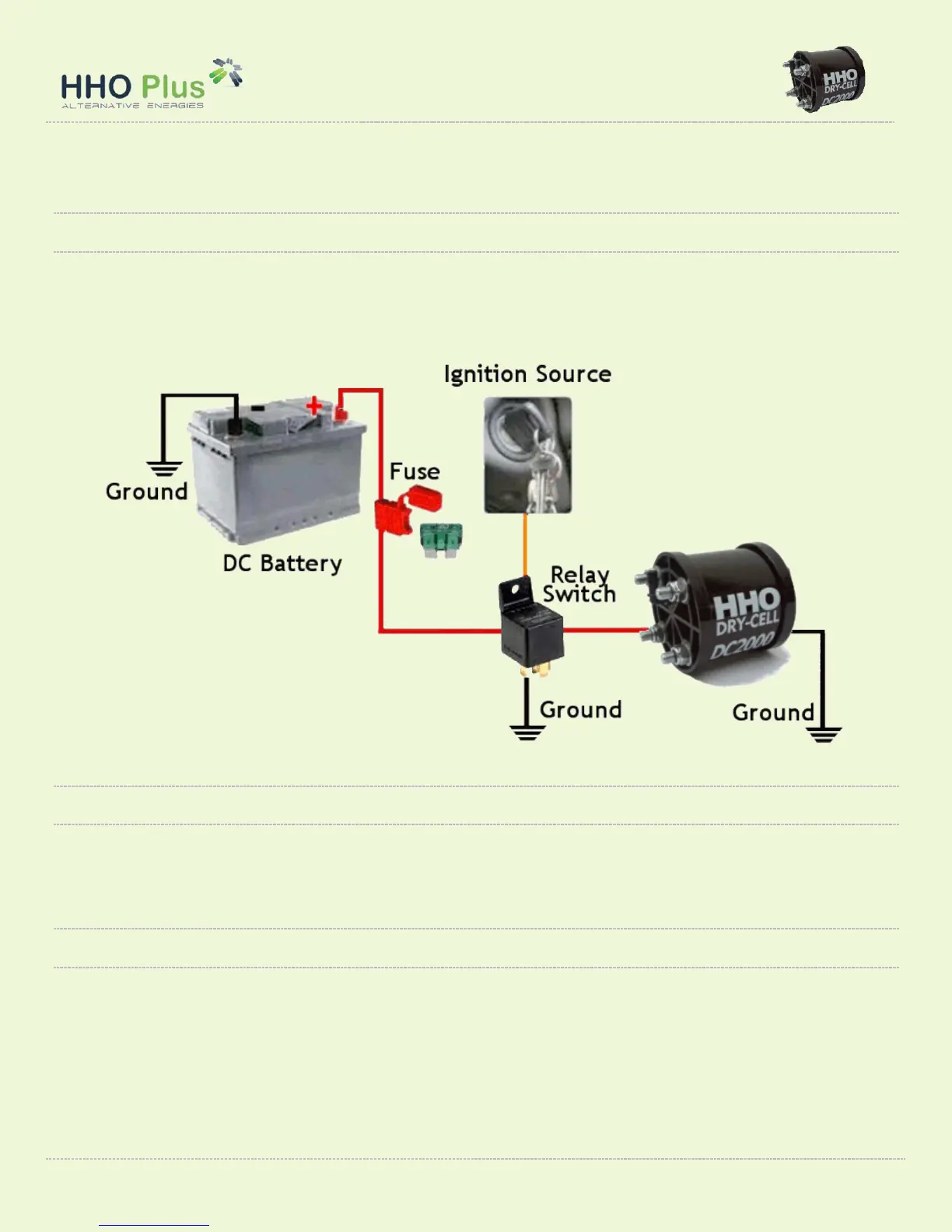

Please refer to the illustration below for typical wiring configuration for powering the system: In the end
pages of this manual you will be able to check each one of the individual connections to be made regarding
the installation of the electrical circuits. We will now only focus on the main aspects of the installation now.
Battery
The system is powered by the 12V battery and controlled by the relay switch. The system will only work if
there is a signal from the ignition source. The positive circuit (red wire) should be connected to the Relay
Switch position 30.
Identifying the ignition source
This is an important connection to be made in order to have the generator working only when the engine is
also working. Identify a point in your vehicle's electrical system which has 12 Volts (positive) present only
when the engine is running. The most secure connection is to excitement signal of the alternator. If you do
not know how to do this connection please ask you mechanic to do it for you. Connect this electric source to
the Relay Switch position 85. This circuit will control the HHO production.
