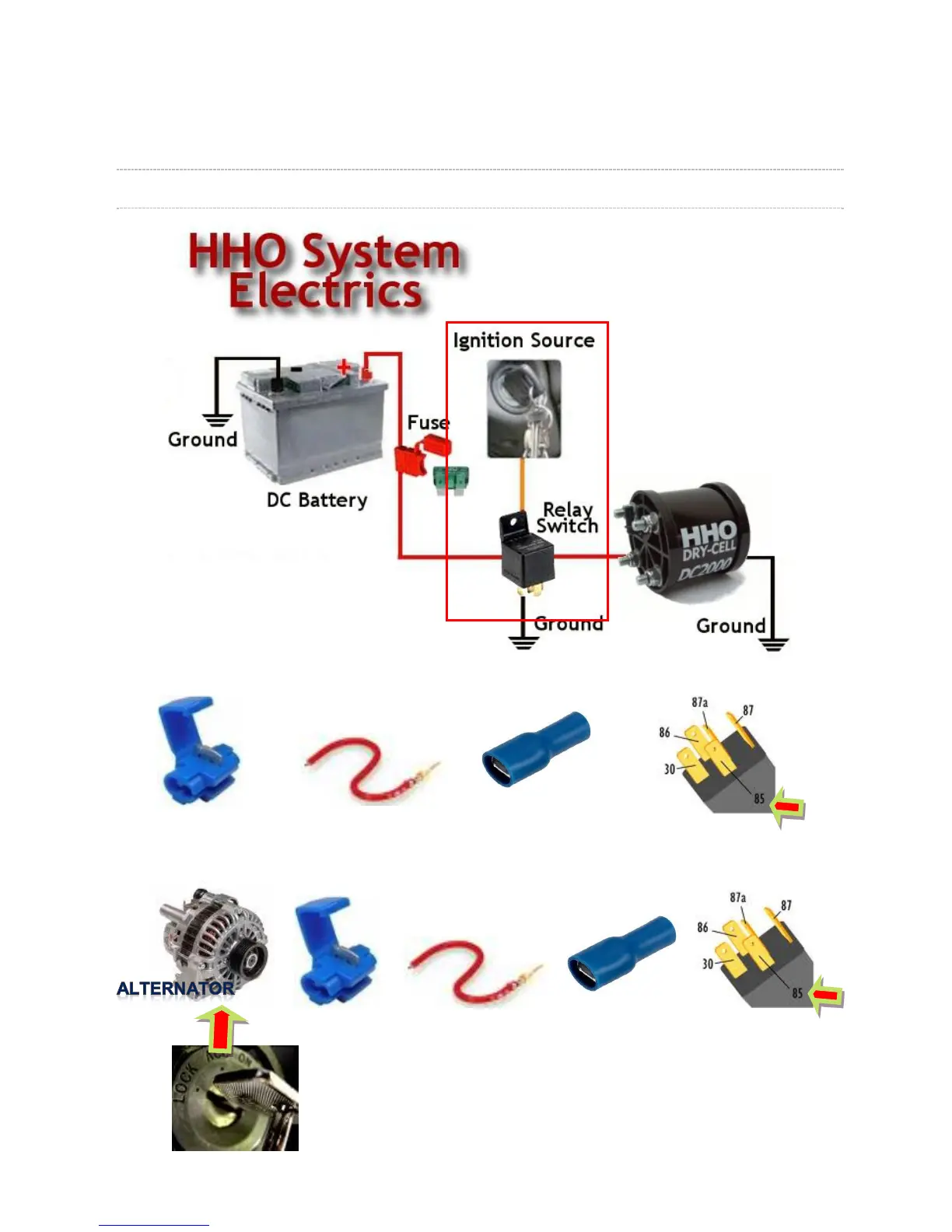

Electric connection from the ignition source to the relay (Position 85)
Materials to make the connection
1
1
1
1
Female crimp terminal
Red electric cable
Female crimp terminal
Relay
Sequence of parts to make the connection
+ + + +
