DC2000 – Installation Manual 5
HHO Plus, Alternative Energies, Lta – Travessa das Serras 33, Vieira de Leiria, Portugal – Tel. 00351244697116 – Email: info@hhhoplusgas.com
Installation of the hydraulic components
General configuration

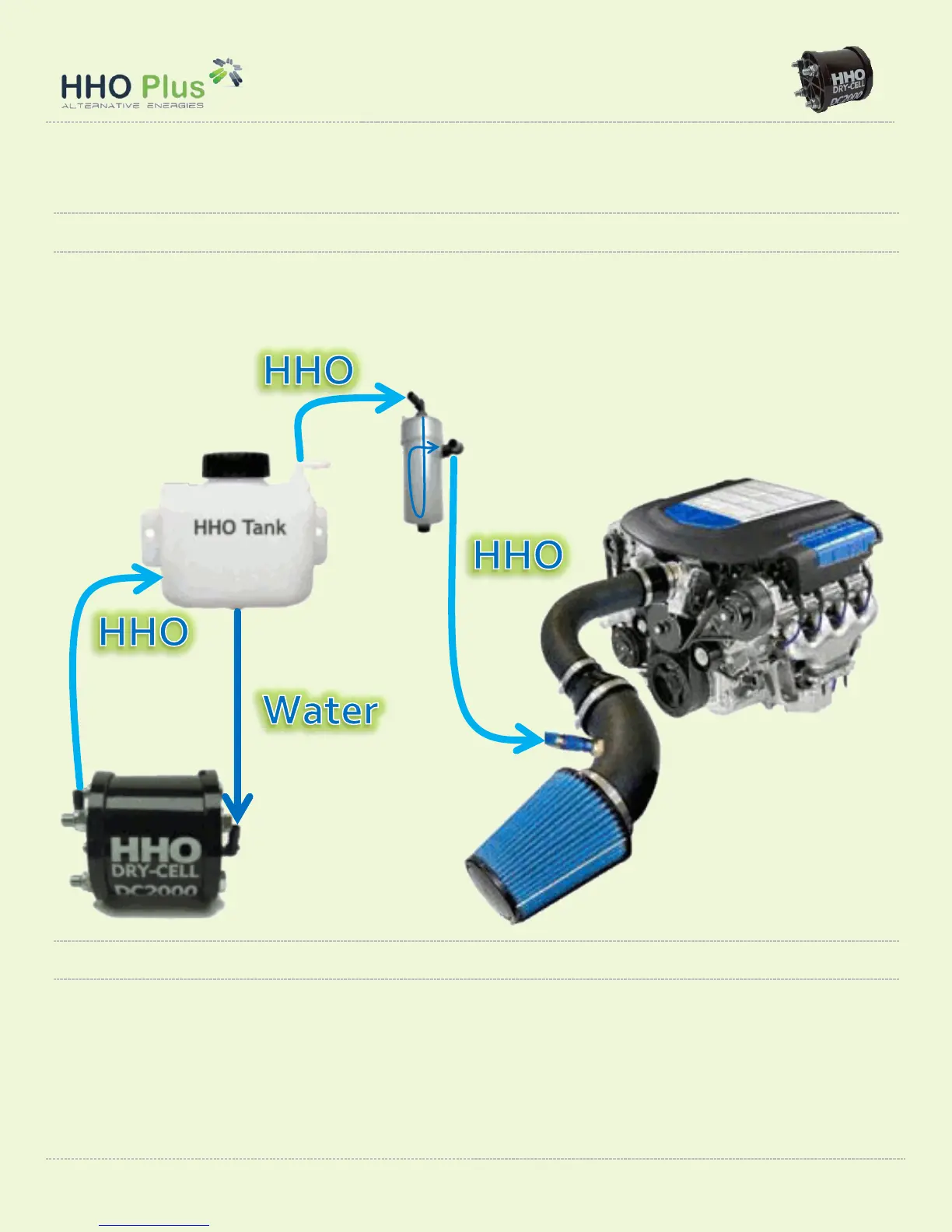

Please refer to the illustration below for typical configuration of the mechanical and hydraulic parts of the
HHO system. In the end pages of this manual you will be able to check each one of the individual connections
to be made regarding the installation of the components. We will now only focus on the main aspects of the
installation.
Positioning the Dry-Cell
You will need to find a good place in your engine compartment to mount your new HHO system. Please
remember that the water tank should preferably be placed at least 20 cm above the generator Dry-Cells in
order to guarantee a sufficient water head for the water/hydrogen to flow. But in some cases with not too
much space available to make the installation we just need to make sure that the bottom of the water tank is
a little bit higher than the top of the dry-cell.
